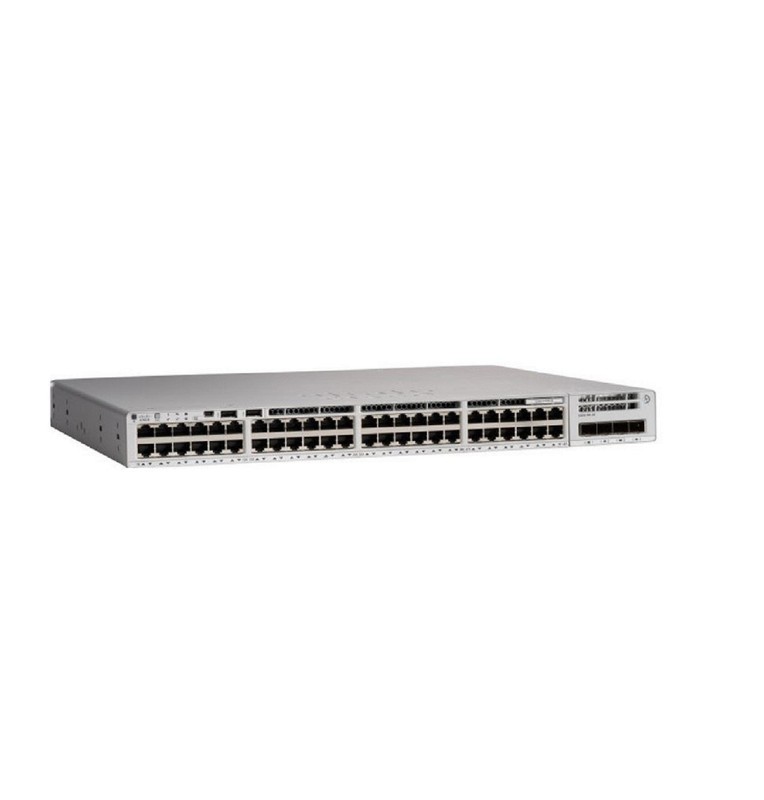

Cisco C9200L-48P-4G-E 4 Gigabit Ethernet 48 Ports Managed Switch 1 Year Warranty
Ask More Qty
C9200L-48P-4G-E Catalyst 9200L Layer (L3) Switch 48 Ports Gigabit Ethernet 10/100/1000Base-T PoE+ and 4x 1Gbps 1000Base-X Uplink Ports Layer 3 Manageable Switch
Item: 1x C9200L-48P-4G-E
* These items are used, tested and 100% in good condition. ASK MORE QUANYITY
* 1 Year warranty.
* Free Shipping.
Description: 48 Gigabit Ethernet ports: The C9200L-48P-4G-E has 48 Gigabit Ethernet ports, providing high-speed connectivity for a large number of devices.
4 Gigabit SFP uplink ports: The switch also has 4 Gigabit SFP uplink ports, allowing for connectivity to high-speed backbone networks.
Cisco DNA Advantage: This licensing package includes features such as network analytics, network automation, and security capabilities.
StackWise-480 Technology: This feature allows for up to nine C9200L switches to be stacked together, providing up to 432 ports and a total switching capacity of 2.4 Tbps.
IPv6 Support: The C9200L-48P-4G-E supports IPv6 routing, allowing for more efficient use of IP addresses and better security features.
Energy Efficient Ethernet (EEE): The C9200L-48P-4G-E supports Energy Efficient Ethernet, reducing power consumption and costs.
Cisco TrustSec: This feature provides security capabilities such as access control, threat protection, and segmentation.
Cisco StackPower: This feature allows for power sharing and redundancy among stacked switches, providing increased reliability and availability.
QoS (Quality of Service): The C9200L-48P-4G-E supports advanced QoS features such as weighted round robin, traffic shaping, and prioritization.
Layer 3 Routing: The C9200L-48P-4G-E supports Layer 3 routing, allowing for the creation of virtual LANs (VLANs) and efficient routing of traffic between them.
More Specifications of 4 Gigabit Ethernet Switch
Switching Capacity: The C9200L-48P-4G-E has a switching capacity of 176 Gbps.
Forwarding Rate: The switch has a forwarding rate of 131.1 Mpps.
Memory: The switch has 4 GB of memory.
Stackable: The switch is stackable with up to 9 switches in a StackWise-480 configuration.
Power Supply: The switch supports both AC and DC power supplies.
Power Draw: The maximum power draw of the switch is 250W.
Operating Temperature: The switch can operate in temperatures between 32 and 104 degrees Fahrenheit.
Operating Humidity: The switch can operate in humidity levels between 10 and 90% non-condensing.
Certifications: The switch is compliant with UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, and AS/NZS 60950-1 standards.
Security and Access Control
The C9200L-48P-4G-E Cisco 48 Ports Ethernet Switch includes several security and access control features to help protect your network from unauthorized access and malicious attacks. Some of these features include:
Cisco Identity Services Engine (ISE): ISE is a network access control solution that allows you to authenticate and authorize users and devices on your network. It can also provide context-aware policy enforcement and threat detection.
Cisco TrustSec: This feature provides security capabilities such as access control, threat protection, and segmentation. It allows you to create secure domains, or "Security Group Tags" (SGTs), to define which users and devices can access which resources on the network.
Access Control Lists (ACLs): ACLs allow you to define rules for controlling access to network resources. You can create rules to deny or permit access based on criteria such as IP address, port number, or protocol.
Network Admission Control (NAC): NAC is a security solution that helps ensure that only trusted and compliant devices can access the network. It can validate the security posture of devices before granting them access to the network.
Advanced Security Features: The C9200L-48P-4G-E also includes advanced security features such as firewall, VPN, and intrusion detection and prevention (IDP) to help protect your network from malicious attacks.
Data encryption: The switch also includes data encryption capabilities to protect sensitive information while it is being transmitted over the network.
Secure boot: The switch supports secure boot, which ensures that only the authorized firmware can be loaded on to the switch. This helps protect against malicious firmware attacks.
Secure boot: The switch also supports secure boot, which ensures that only the authorized firmware can be loaded on to the switch. This helps protect against malicious firmware attacks.
Secure boot : The switch also supports secure boot, which ensures that only the authorized firmware can be loaded on to the switch. This helps protect against malicious firmware attacks.
Secure boot : The switch also supports secure boot, which ensures that only the authorized firmware can be loaded on to the switch. This helps protect against malicious firmware attacks.
General Information about this Cisco C9200L-48P-4G-E
Manufacturer: Cisco
Model Number or SKU# C9200L-48P-4G-E
Product Series: 9200
Product Type: Layer 3 Switch
Interfaces/Ports of Manageable Switch
Total Number of Network Ports 48
Uplink Port Yes
Modular Yes
Stack Port Yes
Port/Expansion Slot Details 4 x Gigabit Ethernet Uplink
Port/Expansion Slot Details 48 x Gigabit Ethernet Network
Performance of 48 Ports Switch Module
Media Type Supported Twisted Pair
Media Type Supported Optical Fiber
Ethernet Technology Gigabit Ethernet
Network Technology 10/100/1000Base-T
Network Technology 1000Base-X
I/O Expansions of Ethernet Switch
Number of Total Expansion Slots 4
Expansion Slot Type SFP (mini-GBIC)
Shared SFP Slot No
Number of SFP Slots 4
Power Description
Power Source Power Supply
Redundant Power Supply Supported Yes
Dimensions & Weight
Height: 1.7 Inch
Width: 17.5 Inch
Depth: 11.3 Inch
Weight (Approximate): 9.59 Lbs
