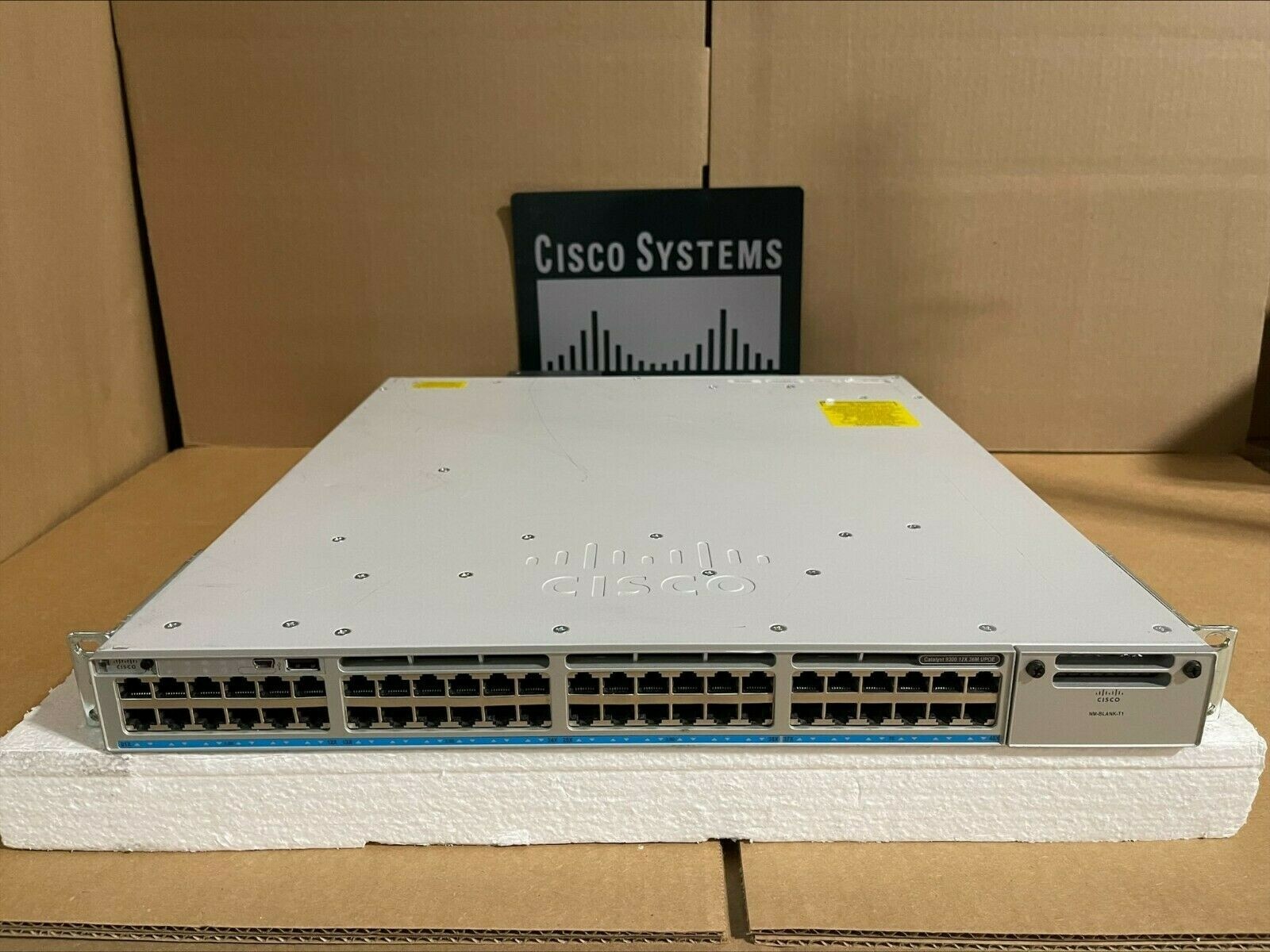

Cisco Catalyst 9300 Series C9300-48UXM-E Ports Managed Network Switch WORK
- Model Number:CiscoC9300-48UXM-E
- Listing for one (1) unit
- Quantity: ONE (1)
TEST REPORT
Switch#sh ver
Cisco IOS XE Software, Version 16.06.05
Cisco IOS Software [Everest], Catalyst L3 Switch Software (CAT9K_IOSXE), Version 16.6.5, RELEASE SOFTWARE (fc3)
Copyright (c) 1986-2018 by Cisco Systems, Inc.
Compiled Mon 10-Dec-18 12:52 by mcpre
Cisco IOS-XE software, Copyright (c) 2005-2018 by cisco Systems, Inc.
All rights reserved. Certain components of Cisco IOS-XE software are
licensed under the GNU General Public License ("GPL") Version 2.0. The
software code licensed under GPL Version 2.0 is free software that comes
with ABSOLUTELY NO WARRANTY. You can redistribute and/or modify such
GPL code under the terms of GPL Version 2.0. For more details, see the
documentation or "License Notice" file accompanying the IOS-XE software,
or the applicable URL provided on the flyer accompanying the IOS-XE
software.
ROM: IOS-XE ROMMON
BOOTLDR: System Bootstrap, Version 16.8.1r [FC4], RELEASE SOFTWARE (P)
Switch uptime is 11 minutes
Uptime for this control processor is 12 minutes
System returned to ROM by PowerOn
System image file is "flash:packages.conf"
Last reload reason: PowerOn
This product contains cryptographic features and is subject to United
States and local country laws governing import, export, transfer and
use. Delivery of Cisco cryptographic products does not imply
third-party authority to import, export, distribute or use encryption.
Importers, exporters, distributors and users are responsible for
compliance with U.S. and local country laws. By using this product you
agree to comply with applicable laws and regulations. If you are unable
to comply with U.S. and local laws, return this product immediately.
Technology Package License Information:
Technology-package Technology-package
Current Type Next reboot
network-advantage Permanent network-advantage
dna-advantage Subscription dna-advantage
cisco C9300-48UXM (X86) processor with 1392780K/6147K bytes of memory.
Processor board ID ---
36 Ethernet interfaces
1 Virtual Ethernet interface
4 Gigabit Ethernet interfaces
20 Ten Gigabit Ethernet interfaces
2 Forty Gigabit Ethernet interfaces
2048K bytes of non-volatile configuration memory.
8388608K bytes of physical memory.
1638400K bytes of Crash Files at crashinfo:.
11264000K bytes of Flash at flash:.
0K bytes of WebUI ODM Files at webui:.
Base Ethernet MAC Address : 0c:d0:f8:32:20:80
Motherboard Assembly Number : 73-18277-04
Motherboard Serial Number : ---
Model Revision Number : A0
Motherboard Revision Number : A0
Model Number : C9300-48UXM
System Serial Number : ---
Switch Ports Model SW Version SW Image Mode
------ ----- ----- ---------- ---------- ----
* 7 62 C9300-48UXM 16.6.5 CAT9K_IOSXE INSTALL
Configuration register is 0x142 (will be 0x102 at next reload)
Switch#sh post
Stored system POST messages:
Switch 7
---------
POST: MBIST Tests : Begin
POST: MBIST Tests : End, Status Passed
POST: CRYPTO Tests : Begin
POST: CRYPTO Tests : End, Status Passed
POST: PHY Loopback: loopback Test : Begin
POST: PHY Loopback: loopback Test : End, Status Passed
POST: Inline Power Controller Tests : Begin
POST: Inline Power Controller Tests : End, Status Passed
POST: Thermal, Temperature Tests : Begin
POST: Thermal, Temperature Tests : End, Status Passed
POST: Thermal, Fan Tests : Begin
POST: Thermal, Fan Tests : End, Status Passed
POST: SIF Tests : Begin
POST: SIF Tests : End, Status Passed
Switch#sh env all
Switch 7 FAN 1 is OK
Switch 7 FAN 2 is OK
Switch 7 FAN 3 is OK
FAN PS-1 is OK
FAN PS-2 is NOT PRESENT
Switch 7: SYSTEM TEMPERATURE is OK
Inlet Temperature Value: 26 Degree Celsius
Temperature State: GREEN
Yellow Threshold : 46 Degree Celsius
Red Threshold : 56 Degree Celsius
Hotspot Temperature Value: 58 Degree Celsius
Temperature State: GREEN
Yellow Threshold : 105 Degree Celsius
Red Threshold : 125 Degree Celsius
SW PID Serial# Status Sys Pwr PoE Pwr Watts
-- ------------------ ---------- --------------- ------- ------- -----
7A PWR-C1-1100WAC LIT2231459W OK Good Good 1100
7B Not Present
Switch#sh license right-to-use
Slot# License Name Type Period left
7 network-advantage Permanent Lifetime
7 dna-advantage Subscription CSSM Managed
License Level on Reboot: network-advantage+dna-advantage Subscription
