2x Gigabit SFP+

IOS 15.2

ipbase

1x C3KX-PWR-1100WAC (Takes C15 Plug Needed)

Some thin scratching and widespread scuffing, especially on the top face.
Other scratching, chipping, and other general signs of prior use.

Power Cord(s)

Switch#show diagnostic result switch 2Switch 2: SerialNo : FDO1725Z0GM Overall Diagnostic Result for Switch 2 : PASS Test results: (. = Pass, F = Fail, U = Untested) 1) TestPortAsicStackPortLoopback ---> .
2) TestPortAsicLoopback ------------> .
3) TestPortAsicRingLoopback --------> .
4) TestPortAsicCam -----------------> .
5) TestMicRingLoopback -------------> .
6) TestPortAsicMem -----------------> .
7) TestInlinePwrCtlr ---------------> .
Switch#show env all
FAN 1 is OK
FAN 2 is OK
FAN PS-1 is OK
FAN PS-2 is NOT PRESENT
SYSTEM TEMPERATURE is OK
System Temperature Value: 30 Degree Celsius
System Temperature State: GREEN
Yellow Threshold : 46 Degree Celsius
Red Threshold : 60 Degree Celsius
SW PID Serial# Status Sys Pwr PoE Pwr Watts
-- ------------------ ---------- --------------- ------- ------- -----
2A C3KX-PWR-1100WAC LIT172415T1 OK Good Good 1100/0
2B Not PresentSW Status RPS Name RPS Serial# RPS Port#
-- ------------- ---------------- ----------- ---------
2 Not Present <>
Switch#show inv

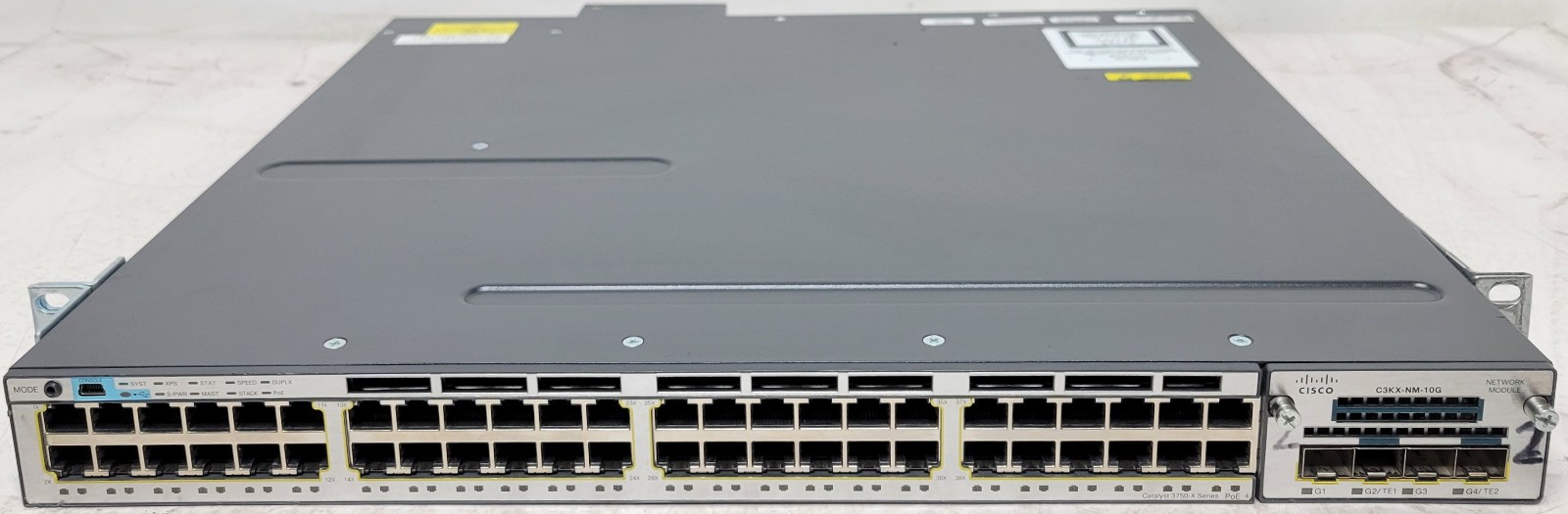

NAME: "2", DESCR: "WS-C3750X-48P"
PID: WS-C3750X-48PF-S , VID: V05 , SN: FDO1725Z0GMNAME: "Switch 2 - Power Supply 1", DESCR: "FRU Power Supply"
PID: C3KX-PWR-1100WAC , VID: V02L , SN: LIT172415T1NAME: "Switch 2 - FRULink Slot 1 - FRULink Module", DESCR: "FRULink 10G ST Module"
PID: C3KX-NM-10G , VID: V01 , SN: FDO17290DKX
Switch#show post
Stored system POST messages:Switch 2
---------POST: CPU MIC register Tests : Begin
POST: CPU MIC register Tests : End, Status PassedPOST: MA BIST : Begin
POST: MA BIST : End, Status PassedPOST: TCAM BIST : Begin
POST: TCAM BIST : End, Status PassedPOST: SF ASIC BIST : Begin
POST: SF ASIC BIST : End, Status PassedPOST: Switch Fabric Memory Tests : Begin
POST: Switch Fabric Memory Tests : End, Status PassedPOST: CPU MIC interface Loopback Tests : Begin
POST: CPU MIC interface Loopback Tests : End, Status PassedPOST: PortASIC RingLoopback Tests : Begin
POST: PortASIC RingLoopback Tests : End, Status PassedPOST: Inline Power Controller Tests : Begin
POST: Inline Power Controller Tests : End, Status PassedPOST: Thermal, Fan Tests : Begin
POST: Thermal, Fan Tests : End, Status PassedPOST: PortASIC Port Loopback Tests : Begin
POST: PortASIC Port Loopback Tests : End, Status PassedPOST: PortASIC Macsec Loopback Tests : Begin
POST: PortASIC Macsec Loopback Tests : End, Status PassedPOST: EMAC Loopback Tests : Begin
POST: EMAC Loopback Tests : End, Status Passed
Switch#show int statusPort Name Status Vlan Duplex Speed Type
Gi2/0/1 notconnect 1 auto auto 10/100/1000BaseTX
Gi2/0/2 notconnect 1 auto auto 10/100/1000BaseTX
Gi2/0/3 notconnect 1 auto auto 10/100/1000BaseTX
Gi2/0/4 notconnect 1 auto auto 10/100/1000BaseTX
Gi2/0/5 notconnect 1 auto auto 10/100/1000BaseTX
Gi2/0/6 notconnect 1 auto auto 10/100/1000BaseTX
Gi2/0/7 notconnect 1 auto auto 10/100/1000BaseTX
Gi2/0/8 notconnect 1 auto auto 10/100/1000BaseTX
Gi2/0/9 notconnect 1 auto auto 10/100/1000BaseTX
Gi2/0/10 notconnect 1 auto auto 10/100/1000BaseTX
Gi2/0/11 notconnect 1 auto auto 10/100/1000BaseTXPort Name Status Vlan Duplex Speed Type
Gi2/0/12 notconnect 1 auto auto 10/100/1000BaseTX
Gi2/0/13 notconnect 1 auto auto 10/100/1000BaseTX
Gi2/0/14 notconnect 1 auto auto 10/100/1000BaseTX
Gi2/0/15 notconnect 1 auto auto 10/100/1000BaseTX
Gi2/0/16 notconnect 1 auto auto 10/100/1000BaseTX
Gi2/0/17 notconnect 1 auto auto 10/100/1000BaseTX
Gi2/0/18 notconnect 1 auto auto 10/100/1000BaseTX
Gi2/0/19 notconnect 1 auto auto 10/100/1000BaseTX
Gi2/0/20 notconnect 1 auto auto 10/100/1000BaseTX
Gi2/0/21 notconnect 1 auto auto 10/100/1000BaseTX
Gi2/0/22 notconnect 1 auto auto 10/100/1000BaseTX
Gi2/0/23 notconnect 1 auto auto 10/100/1000BaseTXPort Name Status Vlan Duplex Speed Type
Gi2/0/24 notconnect 1 auto auto 10/100/1000BaseTX
Gi2/0/25 notconnect 1 auto auto 10/100/1000BaseTX
Gi2/0/26 notconnect 1 auto auto 10/100/1000BaseTX
Gi2/0/27 notconnect 1 auto auto 10/100/1000BaseTX
Gi2/0/28 notconnect 1 auto auto 10/100/1000BaseTX
Gi2/0/29 notconnect 1 auto auto 10/100/1000BaseTX
Gi2/0/30 notconnect 1 auto auto 10/100/1000BaseTX
Gi2/0/31 notconnect 1 auto auto 10/100/1000BaseTX
Gi2/0/32 notconnect 1 auto auto 10/100/1000BaseTX
Gi2/0/33 notconnect 1 auto auto 10/100/1000BaseTX
Gi2/0/34 notconnect 1 auto auto 10/100/1000BaseTX
Gi2/0/35 notconnect 1 auto auto 10/100/1000BaseTXPort Name Status Vlan Duplex Speed Type
Gi2/0/36 notconnect 1 auto auto 10/100/1000BaseTX
Gi2/0/37 notconnect 1 auto auto 10/100/1000BaseTX
Gi2/0/38 notconnect 1 auto auto 10/100/1000BaseTX
Gi2/0/39 notconnect 1 auto auto 10/100/1000BaseTX
Gi2/0/40 notconnect 1 auto auto 10/100/1000BaseTX
Gi2/0/41 notconnect 1 auto auto 10/100/1000BaseTX
Gi2/0/42 notconnect 1 auto auto 10/100/1000BaseTX
Gi2/0/43 notconnect 1 auto auto 10/100/1000BaseTX
Gi2/0/44 notconnect 1 auto auto 10/100/1000BaseTX
Gi2/0/45 notconnect 1 auto auto 10/100/1000BaseTX
Gi2/0/46 notconnect 1 auto auto 10/100/1000BaseTX
Gi2/0/47 notconnect 1 auto auto 10/100/1000BaseTXPort Name Status Vlan Duplex Speed Type
Gi2/0/48 notconnect 1 auto auto 10/100/1000BaseTX
Gi2/1/1 notconnect 1 auto auto Not Present
Gi2/1/2 notconnect 1 auto auto Not Present
Gi2/1/3 notconnect 1 auto auto Not Present
Gi2/1/4 notconnect 1 auto auto Not Present
Te2/1/1 notconnect 1 full 10G Not Present
Te2/1/2 notconnect 1 full 10G Not Present
Fa0 disabled routed auto auto 10/100BaseTX
Switch#show pow iModule Available Used Remaining
(Watts) (Watts) (Watts)
------ --------- -------- ---------
2 847.0 0.0 847.0
Interface Admin Oper Power Device Class Max
(Watts)
--------- ------ ---------- ------- ------------------- ----- ----
Gi2/0/1 auto off 0.0 n/a n/a 30.0
Gi2/0/2 auto off 0.0 n/a n/a 30.0
Gi2/0/3 auto off 0.0 n/a n/a 30.0
Gi2/0/4 auto off 0.0 n/a n/a 30.0
Gi2/0/5 auto off 0.0 n/a n/a 30.0
Gi2/0/6 auto off 0.0 n/a n/a 30.0
Gi2/0/7 auto off 0.0 n/a n/a 30.0
Gi2/0/8 auto off 0.0 n/a n/a 30.0
Gi2/0/9 auto off 0.0 n/a n/a 30.0
Gi2/0/10 auto off 0.0 n/a n/a 30.0
Gi2/0/11 auto off 0.0 n/a n/a 30.0
Gi2/0/12 auto off 0.0 n/a n/a 30.0
Gi2/0/13 auto off 0.0 n/a n/a 30.0
Gi2/0/14 auto off 0.0 n/a n/a 30.0
Gi2/0/15 auto off 0.0 n/a n/a 30.0
Interface Admin Oper Power Device Class Max
(Watts)
--------- ------ ---------- ------- ------------------- ----- ----
Gi2/0/16 auto off 0.0 n/a n/a 30.0
Gi2/0/17 auto off 0.0 n/a n/a 30.0
Gi2/0/18 auto off 0.0 n/a n/a 30.0
Gi2/0/19 auto off 0.0 n/a n/a 30.0
Gi2/0/20 auto off 0.0 n/a n/a 30.0
Gi2/0/21 auto off 0.0 n/a n/a 30.0
Gi2/0/22 auto off 0.0 n/a n/a 30.0
Gi2/0/23 auto off 0.0 n/a n/a 30.0
Gi2/0/24 auto off 0.0 n/a n/a 30.0
Gi2/0/25 auto off 0.0 n/a n/a 30.0
Gi2/0/26 auto off 0.0 n/a n/a 30.0
Gi2/0/27 auto off 0.0 n/a n/a 30.0
Gi2/0/28 auto off 0.0 n/a n/a 30.0
Gi2/0/29 auto off 0.0 n/a n/a 30.0
Gi2/0/30 auto off 0.0 n/a n/a 30.0
Gi2/0/31 auto off 0.0 n/a n/a 30.0
Gi2/0/32 auto off 0.0 n/a n/a 30.0
Gi2/0/33 auto off 0.0 n/a n/a 30.0
Gi2/0/34 auto off 0.0 n/a n/a 30.0
Gi2/0/35 auto off 0.0 n/a n/a 30.0
Gi2/0/36 auto off 0.0 n/a n/a 30.0
Gi2/0/37 auto off 0.0 n/a n/a 30.0
Interface Admin Oper Power Device Class Max
(Watts)
--------- ------ ---------- ------- ------------------- ----- ----
Gi2/0/38 auto off 0.0 n/a n/a 30.0
Gi2/0/39 auto off 0.0 n/a n/a 30.0
Gi2/0/40 auto off 0.0 n/a n/a 30.0
Gi2/0/41 auto off 0.0 n/a n/a 30.0
Gi2/0/42 auto off 0.0 n/a n/a 30.0
Gi2/0/43 auto off 0.0 n/a n/a 30.0
Gi2/0/44 auto off 0.0 n/a n/a 30.0
Gi2/0/45 auto off 0.0 n/a n/a 30.0
Gi2/0/46 auto off 0.0 n/a n/a 30.0
Gi2/0/47 auto off 0.0 n/a n/a 30.0
Gi2/0/48 auto off 0.0 n/a n/a 30.0
Switch#show ver
Cisco IOS Software, C3750E Software (C3750E-UNIVERSALK9-M), Version 15.2(4)E10, RELEASE SOFTWARE (fc2)
Technical Support:
Copyright (c) 1986-2020 by Cisco Systems, Inc.
Compiled Tue 31-Mar-20 13:22 by prod_rel_teamROM: Bootstrap program is C3750E boot loader
BOOTLDR: C3750E Boot Loader (C3750X-HBOOT-M) Version 12.2(58r)SE1, RELEASE SOFTWARE (fc1)Switch uptime is 12 minutes
System returned to ROM by power-on
System image file is reload reason: power-onThis product contains cryptographic features and is subject to United
States and local country laws governing import, export, transfer and
use. Delivery of Cisco cryptographic products does not imply
third-party authority to import, export, distribute or use encryption.
Importers, exporters, distributors and users are responsible for
compliance with U.S. and local country laws. By using this product you
agree to comply with applicable laws and regulations. If you are unable
to comply with U.S. and local laws, return this product immediately.A summary of U.S. laws governing Cisco cryptographic products may be found at:
If you require further assistance please contact us by sending email to
(email)License Level: ipbase
License Type: Permanent
Next reload license Level: ipbasecisco WS-C3750X-48P (PowerPC405) processor (revision A0) with 262144K bytes of memory.
Processor board ID FDO1725Z0GM
Last reset from power-on
1 Virtual Ethernet interface
1 FastEthernet interface
52 Gigabit Ethernet interfaces
2 Ten Gigabit Ethernet interfaces
The password-recovery mechanism is enabled.512K bytes of flash-simulated non-volatile configuration memory.
Base ethernet MAC Address : 7C:69:F6:22:1E:00
Motherboard assembly number : 73-12553-10
Motherboard serial number : FDO172513PK
Model revision number : A0
Motherboard revision number : B0
Model number : WS-C3750X-48PF-S
Daughterboard assembly number : 800-32727-03
Daughterboard serial number : FDO17250EPY
System serial number : FDO1725Z0GM
Top Assembly Part Number : 800-31324-08
Top Assembly Revision Number : C0
Version ID : V05
CLEI Code Number : COMJZ00ARE
Hardware Board Revision Number : 0x05
Switch Ports Model SW Version SW Image
------ ----- ----- ---------- ----------
* 2 54 WS-C3750X-48P 15.2(4)E10 C3750E-UNIVERSALK9-M
Configuration register is 0xF
