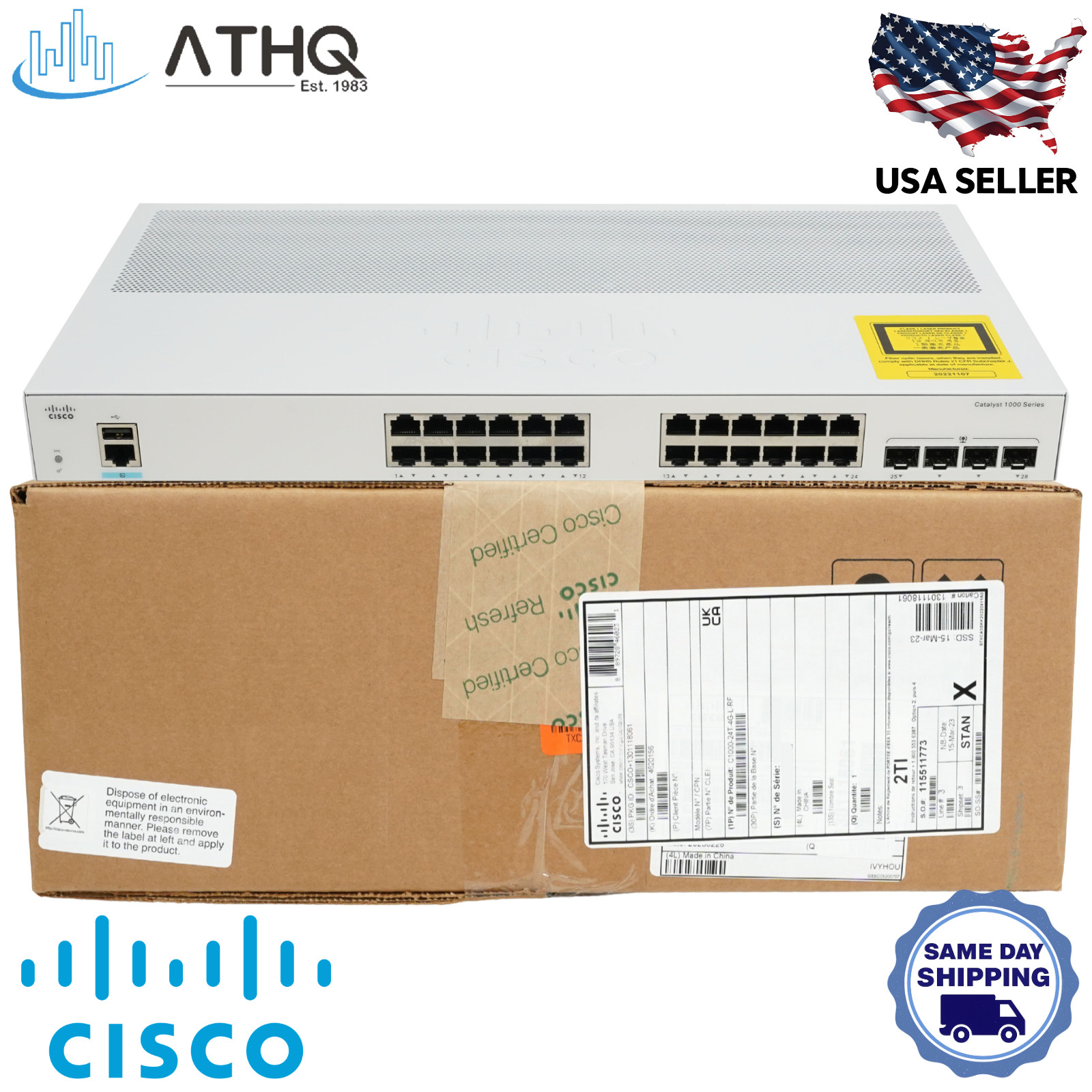

Cisco Catalyst C1000-24T-4G-L - 24-Port Gigabit Ethernet Switch | 4x 1G SFP Uplinks | Layer 2 Managed | Fanless - Cisco Refresh

The Cisco Catalyst C1000-24T-4G-L is a fixed managed Layer 2 Gigabit Ethernet switch built for small businesses, branch offices, classrooms, and IoT deployments that need reliable, secure, enterprise-class LAN connectivity. It delivers 24x 10/100/1000 Ethernet ports (RJ-45) plus 4x 1G SFP fiber uplinks, with a 56 Gbps switching capacity and 41.67 Mpps forwarding rate for smooth line-rate performance.

Running Cisco IOS Software, the C1000-24T-4G-L supports VLANs, 802.1Q trunking, QoS, STP/RSTP/MSTP, LACP, IGMP Snooping, and 802.1X authentication, with configuration via CLI, on-box Web UI, SSHv2, and SNMP. Its fanless 1U rack-mount design makes it ideal for silent deployment in open-plan offices, retail floors, and out-of-the-wiring-closet environments. This unit ships as Cisco Refresh — officially remanufactured and certified by Cisco to meet the same performance and reliability standards as a new unit.

Cisco Catalyst C1000-24T-4G-L - Key Features & Benefits

• 24x Gigabit Ethernet Ports + 4x 1G SFP Uplinks: Line-rate 10/100/1000BASE-T RJ-45 access for desktops, IP phones, printers, APs, and servers, plus 4x 1000BASE-X SFP ports for fiber backbone aggregation and long-distance uplinks.
• Layer 2 Managed — VLANs, QoS, & Loop Protection: Full 802.1Q VLAN support (256 active VLANs, 4,094 VLAN IDs), QoS prioritization for voice and video, LACP link aggregation, and STP/RSTP/MSTP for loop-free Ethernet topologies.
• Enterprise Security Built In: 802.1X port authentication, DHCP Snooping, Dynamic ARP Inspection, port security, storm control, and ACLs to segment traffic and block unauthorized access at the edge.
• Flexible Cisco IOS Management: Configure and monitor via Cisco IOS CLI, on-box Web UI, SSHv2, SNMP, or USB console — plus a USB Type-A port for firmware, config, and core-dump storage.
• Fanless & Energy Efficient: Completely silent fanless design with Energy Efficient Ethernet (IEEE 802.3az) for low-noise installs in classrooms and offices, and reduced operating costs.
• 1U Rack-Mount Non-PoE Design: Fits any standard 19" rack at 17.5 x 9.45 x 1.73 in and 5.79 lbs; internal 100–240V AC auto-ranging power supply with ~80W max consumption.
• Cisco Refresh — Officially Remanufactured: Inspected, restored, and certified by Cisco's own remanufacturing program to factory performance standards.

Cisco Catalyst C1000-24T-4G-L - Technical Specifications

• Brand / Series / Model: Cisco • Catalyst 1000 Series • C1000-24T-4G-L
• Product Type: Fixed Managed Gigabit Ethernet Layer 2 Switch
• Access Ports: 24x 10/100/1000BASE-T (RJ-45, non-PoE)
• Uplink Ports: 4x 1G SFP (1000BASE-X fiber)
• Switching Capacity: 56 Gbps
• Forwarding Rate: 41.67 Mpps (64-byte L3 packets)
• MAC Address Table: 16,000 entries
• VLANs: 256 active • 4,094 VLAN IDs
• CPU / DRAM / Flash: ARM v7 @ 800 MHz • 512 MB DRAM • 256 MB Flash
• Management: Cisco IOS CLI • On-box Web UI • SSHv2 • SNMP
• Console / USB: 1x RJ-45 console • 1x USB Type-A (storage / Bluetooth console)
• Power Supply: Internal, 100–240V AC auto-ranging, 50/60 Hz (non-PoE)
• Form Factor: Fixed, rack-mountable 1U (fanless)
• Dimensions (W x D x H): 17.5 x 9.45 x 1.73 in
• Weight: 5.79 lbs (2.63 kg)
• Condition: Cisco Refresh (OEM Certified Remanufactured)

Cisco Catalyst C1000-24T-4G-L - Frequently Asked Questions (FAQ)

• Does this switch support PoE?
  No. The C1000-24T-4G-L is a non-PoE data-only switch. For PoE+ at the same port count, choose the C1000-24P-4G-L (195W budget) or C1000-24FP-4G-L (370W budget).
• What is the difference between C1000-24T-4G-L and C1000-24T-4X-L?
  Both are 24-port Gigabit data switches on the same Catalyst 1000 platform. The -4G-L has 4x 1G SFP uplinks; the -4X-L has 4x 10G SFP+ uplinks. All other specs are otherwise identical.
• Does this switch support Layer 3 routing?
  No. The C1000-24T-4G-L is a Layer 2 managed switch and does not support dynamic routing. For Layer 3 features, step up to a Cisco Catalyst 9200 or newer L3-capable platform.
• Which SFP modules are compatible with the 4x 1G uplinks?
  The uplinks support standard Cisco 1G SFP modules, including GLC-SX-MMD (multi-mode), GLC-LH-SMD (single-mode), and compatible 1000BASE-T SFPs (e.g., GLC-T / GLC-TE). SFPs are sold separately.
