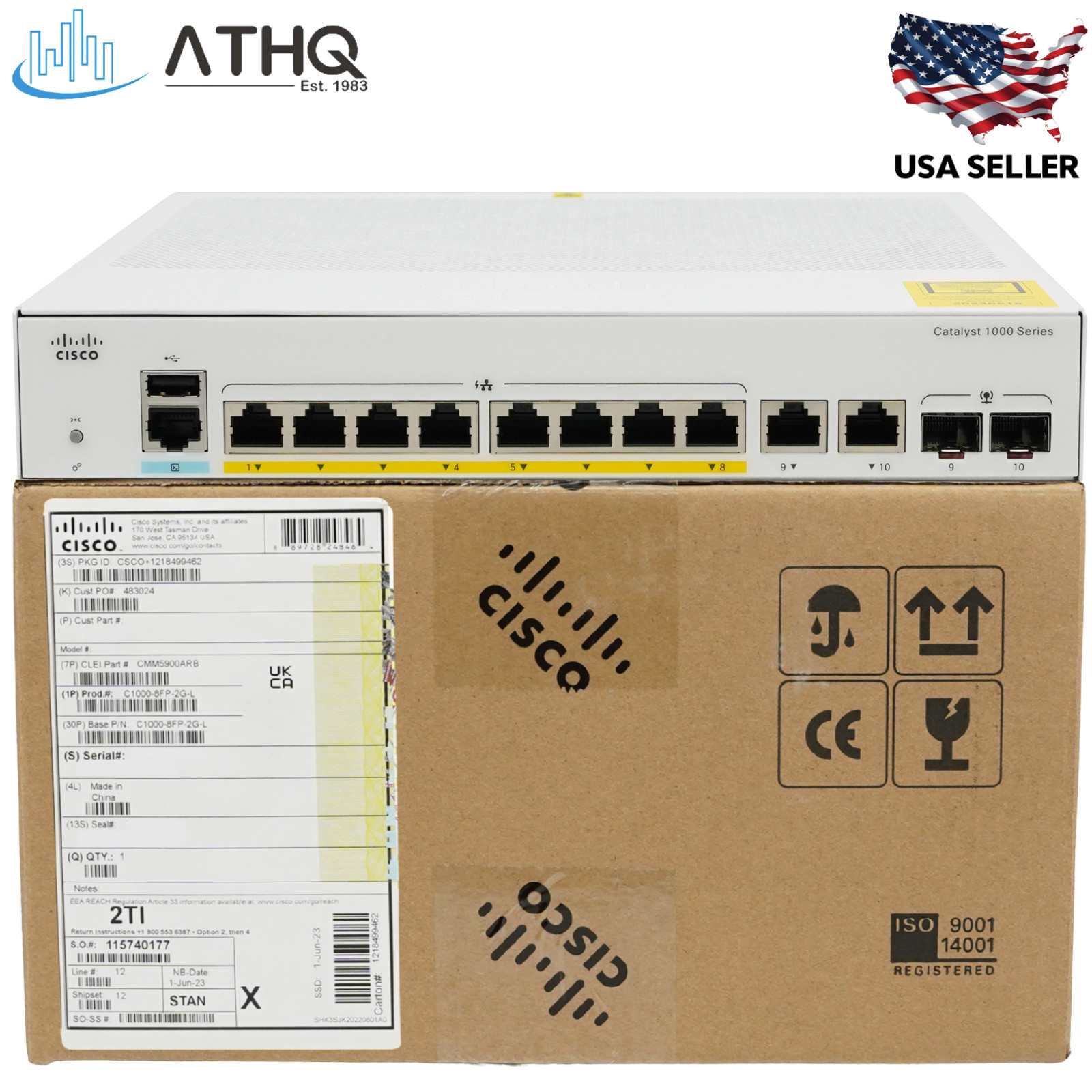

Cisco Catalyst C1000-8FP-2G-L 8-Port Gigabit PoE+ Managed Switch | 120W | 2x SFP Uplinks | Fanless - New

The Cisco Catalyst C1000-8FP-2G-L is a fixed managed Gigabit Ethernet Layer 2 switch designed for small businesses, branch offices, and IoT deployments. It delivers 8-port PoE+ with a 120W total budget, 2x combo SFP/RJ-45 uplinks, a 20 Gbps non-blocking switching fabric, and full Cisco IOS management — all in a silent fanless 1U chassis with no mandatory subscription or license required.

Cisco Catalyst C1000-8FP-2G-L - Key Features & Benefits

• 120W Full PoE+ Budget: All 8 ports deliver up to 30W per port (IEEE 802.3at) for IP phones, wireless APs, IP cameras, and IoT devices — no external injectors needed.
• Perpetual PoE: Connected devices stay powered even during a switch reload — essential for PoE lighting, medical devices, and always-on IoT endpoints.
• 20 Gbps Non-Blocking Switching: 14.88 Mpps forwarding rate, 16,000 MAC addresses, 4,094 VLANs, and jumbo frames up to 10,240 bytes for demanding network environments.
• 2x Combo SFP / RJ-45 Uplinks: Each uplink accepts a 1G SFP fiber module or standard RJ-45 copper — no media converter needed. IEEE 802.3ad LACP link aggregation supported.
• Cisco IOS — No Subscription Required: Full management via CLI, web UI (Cisco Configuration Professional), SNMP v1/v2c/v3, SSH v2, and optional Bluetooth over-the-air console access. No cloud license needed.
• Enterprise Security Built In: IEEE 802.1X port auth, Dynamic ARP Inspection, IP Source Guard, BPDU Guard, per-port ACLs, and TACACS+/RADIUS — enterprise-grade security on an SMB platform.
• QoS — 8 Egress Queues Per Port: DSCP, 802.1p CoS, AutoQoS, and Weighted Tail Drop prioritize voice, video, and critical traffic at wire speed.
• Fanless Silent 1U Chassis: No moving parts, rated to 50°C, compact 10.56 × 12.73 × 1.73 in — deploys quietly on a desktop or in a rack (mounting kit sold separately).

Cisco Catalyst C1000-8FP-2G-L - Technical Specifications

• Manufacturer: Cisco
• Part Number: C1000-8FP-2G-L
• Product Type: Fixed Managed Gigabit Ethernet Layer 2 Switch
• Data Ports: 8× 10/100/1000BASE-T RJ-45 PoE+
• Uplink Ports: 2× 1G SFP / RJ-45 combo
• PoE Standard: IEEE 802.3af / 802.3at (up to 30W per port)
• Total PoE Budget: 120W
• Switching Bandwidth: 20 Gbps
• Forwarding Rate: 14.88 Mpps
• MAC Address Table: 16,000
• VLAN IDs: 4,094 available • 256 active
• Jumbo Frame: 10,240 bytes
• CPU / RAM / Flash: ARM v7 800 MHz • 512 MB DRAM • 256 MB Flash
• Management: CLI • Web UI • SNMP v1/v2c/v3 • SSH v2 • Telnet • Bluetooth
• Fanless: Yes
• Dimensions (W×D×H): 10.56 × 12.73 × 1.73 in
• Weight: 5.95 lbs (2.70 kg)
• Operating Temp: −5°C to 50°C
• Power Input: 110–220V AC auto-sensing
• Compliance: FCC Part 15 Class A • UL 60950-1 • RoHS
• Condition: New

Cisco Catalyst C1000-8FP-2G-L - Frequently Asked Questions (FAQ)

• Does this switch require a license or subscription?
  No. Cisco IOS runs fully out of the box — no cloud dashboard, no subscription, no license fee required.
• What is the difference between C1000-8FP-2G-L and C1000-8FP-E-2G-L?
  Same 8 ports and 120W budget. The -2G-L has an internal power supply (deeper chassis at 12.73 in); the -E-2G-L uses an external power supply (shallower at 7.28 in).
• What is the difference between C1000-8FP-2G-L and C1000-8P-2G-L?
  The 8FP has a 120W PoE budget; the 8P has only 67W. Choose 8FP when powering 802.3at devices drawing close to 30W per port.
• Does it support rack mounting?
  Yes with optional brackets: RCKMNT-19-CMPCT= (19") or RCKMNT-23-CMPCT= (23"/24"), sold separately.
• What SFP modules are compatible?
  Standard Cisco 1G SFPs: GLC-SX-MMD (multimode), GLC-LH-SMD (single-mode), and GLC-T (copper RJ-45).
