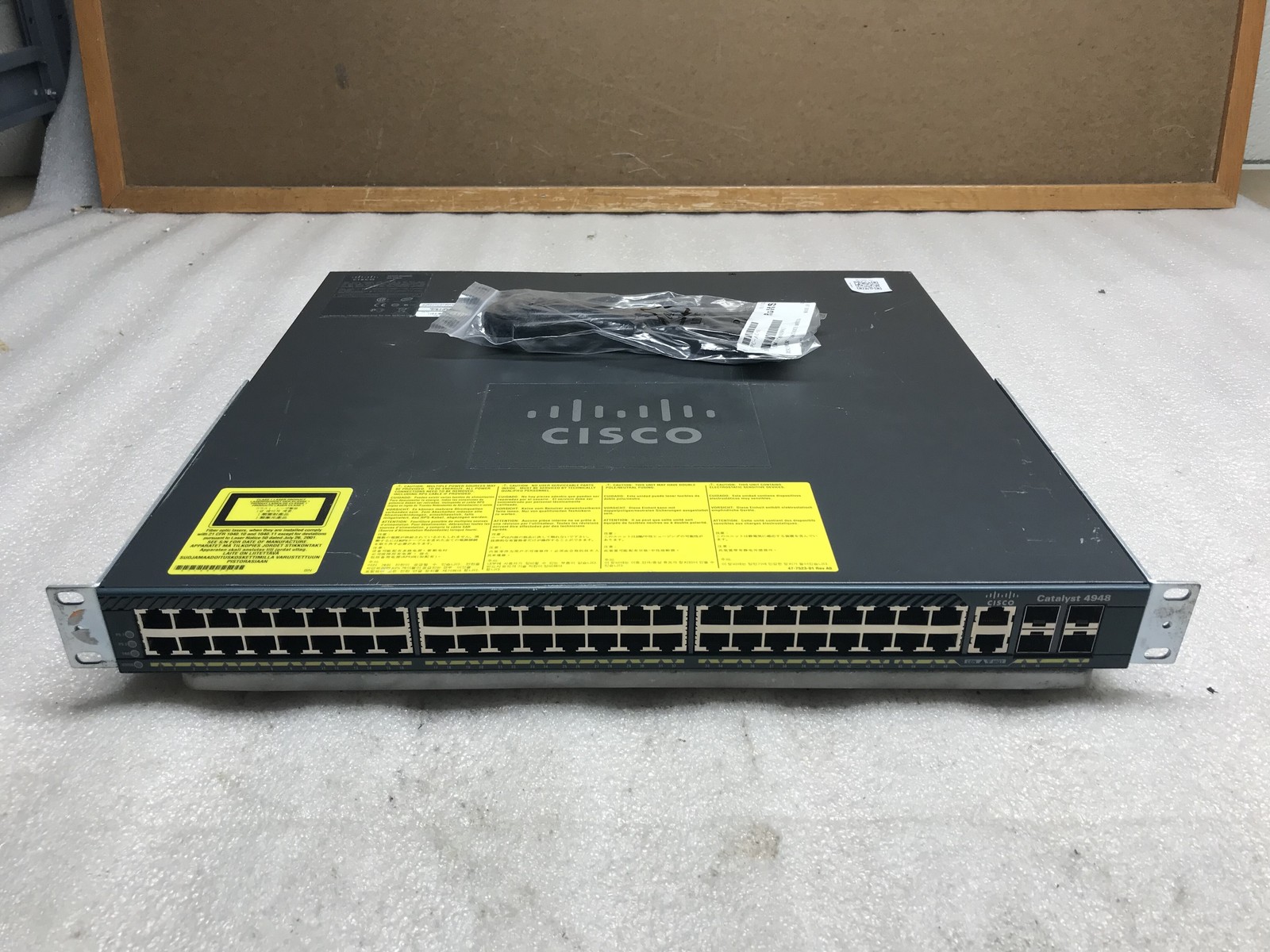

Listing Grid template example Product Photo Description Cisco Catalyst WS-C4948-S 44-Port Gigabit Ethernet 4-Port SFP Layer 3 - Tested Cisco Catalyst WS-C4948-S 44-Port Gigabit Ethernet 4-Port SFP Layer 3 - Tested

The Cisco Catalyst WS-C4948-S is a high-performance, rackmount Layer 3 managed switch designed for enterprise networks, server environments, and data-center applications. It provides 48 Gigabit Ethernet RJ45 ports and four Gigabit SFP sockets for copper or fiber connectivity. The four SFP sockets share interfaces with RJ45 ports 45–48, allowing up to 48 active network interfaces Number: WS-C4948-S

Hardware Revision: V08

Serial Number: FOX1402GK2F

Switch Type: Managed Layer 3

RJ45 Ports: 48 × 10/100/1000BASE-T

SFP Sockets: 4 × Gigabit SFP

Maximum Simultaneously Active Interfaces: 48

Switching Capacity: 96 Gbps

Forwarding Rate: Up to 72 million packets per second

Installed IOS: Cisco IOS 12.2(53)SG2

Installed Image: Feature Set: Enterprise Services K9

Memory: 256 MB

Installed Power Supply: 1 × Cisco PWR-C49-300AC 300W

Redundant Power-Supply Support: Yes

PoE Support: No

Stackable: No

Form Factor: 1U rackmount

Management: Console, Telnet, SSH, SNMP and web-based management

MAC Address: 68:EF:BD:E7:0C:7F

Key Features

• Wire-speed Layer 2 and Layer 3 switching
• Hardware-based Cisco Express Forwarding
• Static and dynamic IP routing support
• VLAN, trunking, EtherChannel and Spanning Tree support
• Access Control Lists and traffic-security features
• Four SFP sockets for Gigabit fiber connectivity
• Hot-swappable power-supply and fan-tray design
• Optional redundant second power supply
• Dedicated console and management connectivity
• Cisco Enterprise Services K9 IOS image installed

Important Notes

• The four SFP sockets share interfaces with RJ45 ports 45–48 and are not four additional simultaneously active ports
• One 300W AC power supply is installed
• Second redundant power-supply bay is empty
• Unit has scratches and blemishes from previous use
• Switch was factory reset and configured to boot automatically
• POST, fan, temperature and installed power-supply checks passed
• No SFP transceivers are included

Included

• Cisco Catalyst WS-C4948-S Switch
• One Cisco PWR-C49-300AC Power Supply
• Power Cable
• Rack Ears

Not Included

• User Manual
• Original packaging

Specifications Functional Condition:
F3 - Key Functions Working

Equipment in this category has undergone testing to confirm that its core functionalities are operational. Essential functions that a typical user would expect are verified working. Secondary functions or software may not be present or configured. Units may be missing components or parts that are not essential to key functions.

Cosmetic Condition:
C4 - Used Good

Good overall used condition. Some light scratches or scuffs. No dents, dings or cracks.

Data Sanitization:
S3 - Data Clear

Device has been sanitized by one of the following methods: Factory Reset, NIST 800-88 Clear, or DOD 5220.22

Port Count
48 Port Speed
Gigabit Management Type
Managed Poe Support
None Poe Budget
NO Stackable
NO Layer
Layer 3 Sfp Ports
4 Function Tests Powers On
Passed Management Interface Access
Passed Port Connectivity
Passed Link Lights
Passed Factory Reset
