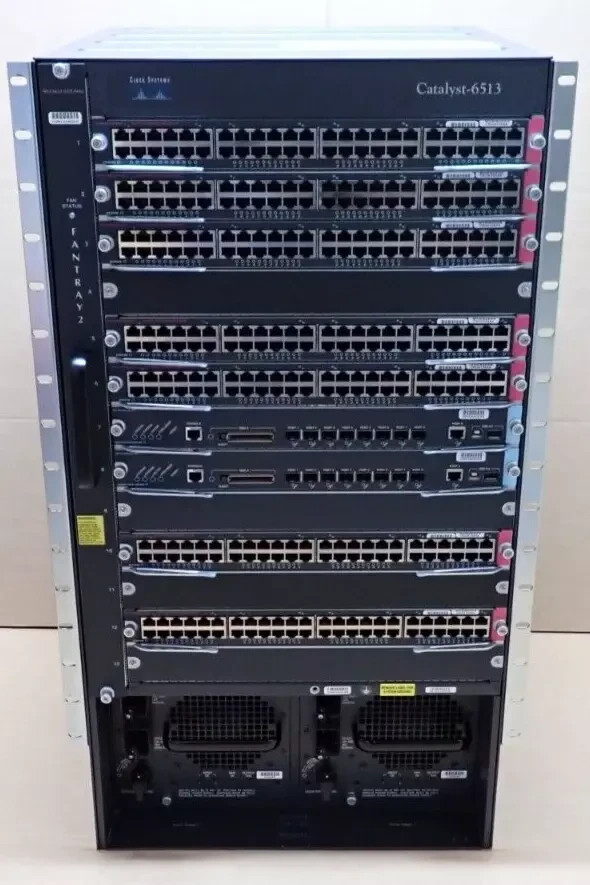

Cisco Catalyst WS-C6513 Switch Chassis + 7x WS-X6148A-GE-45AF 2x WS-SUP32-GE-3B
Model:WS-C6513
In Good Condition, Full Working OrderTested2 Year WarrantyIncludes Rackmount BracketIncluded:
- 1 xCisco Catalyst WS-C6513 Switch Chassis with:
- 7 x Cisco Catalyst 48-Port 10/100/1000Base-TEthernet RJ45 WS-X6148A-GE-45AF Switch Module each with:
- 1 x Cisco Catalyst IEEE 802.3afPower Over Ethernet (PoE) Injector Daughter CardWS-F6K-48-AF
- 2 x Cisco Catalyst 6500 Series Supervisor Engine 32 with 8GE uplinks and PFC3B WS-SUP32-GE-3B
- 2 x Cisco Catalyst 6500 Series 6000W AC Power Supply WS-CAC-6000W
- 1 x Cisco Catalyst 6500 13-Slot Fan Tray Code: WS-X6148A-GE-45AF
- Speed: 10/100/1000
- IEEE 802.3af PoE Support: Yes
- PoE Support: Yes (both IEEE 802.3af and Cisco Prestandard)
- Maximum Power per Port: 15.4W
- Maximum Frame Size (jumbo frame) Support: Up to 9216 bytes per frame
- Queues per Port (Tx= Transmit, Rx= Size per Port: 5.5 MB
- Interfaces/Ports: 48 x RJ-45 Female 10/100/1000Base-T
- Connectivity Media: Category 5 Gigabit Ethernet ports, SFP based + one 10/100/1000 RJ-45 port
- OR
- Two 10 Gigabit Ethernet ports, XENPAK based + one 10/100/1000 RJ-45 port
- Uplink Queue Structure:
- Tx 1p3q8t
- Rx 2q8t
- 9.5 MB buffer per Gigabit Ethernet port
- 100 MB buffer per 10 Gigabit Ethernet port
- Uplink Port Scheduler: DWRR or SRR
- USB Port: Two USB 2.0 ports-one host port and one device port
- Self-Power Cycling: Yes, power cycle remotely through console port
- Backplane: 32 Gbps shared bus
- Performance: Up to 15 Mpps IPv4 services
- Cisco Express Forwarding: Yes, hardware-based forwarding with MSFC2A
- Distributed Cisco Express Forwarding: No
- SP NVRAM: 2 MB (SP)
- SP Dynamic RAM (DRAM): 512 MB default, upgradeable to 1 GB
- SP Onboard Flash (BootFlash): 256 MB, through internal compact flash (referred to as bootdisk in command-line interface), upgradeable to 512 MB, 1 GB
- Removable Memory: Compact flash type II-64, 128, and 256 MB; hardware capable to support 512 MB, 1 GB; USB
- Chassis Supported:
- All Cisco Catalyst 6500 Series chassis with fan tray 2 or E-Series fan tray and 2500W power supplies or above; Cisco 7604, Cisco 7606, Cisco 7609, and Cisco 7613 with high speed fan tray
- Minimum Software Support:
- Cisco Catalyst 6500 Series:
- CatOS 8.4(1)
- Cisco IOS 12.2(18)SXF
- Cisco 7600 Series: IOS 12.2.18SXF
- Slot Requirements: Slots 1 and 2 in a 3-slot and 4 slot chassis, slots 5 and 6 in a 6- or 9-slot chassis, and slots 7 and 8 in a 13-slot chassis
- Hardware-Based Forwarding Engine: PFC3B onboard
- MSFC Daughter Card Version: MSFC2A onboard; Layer 3 support with layer 3 license
