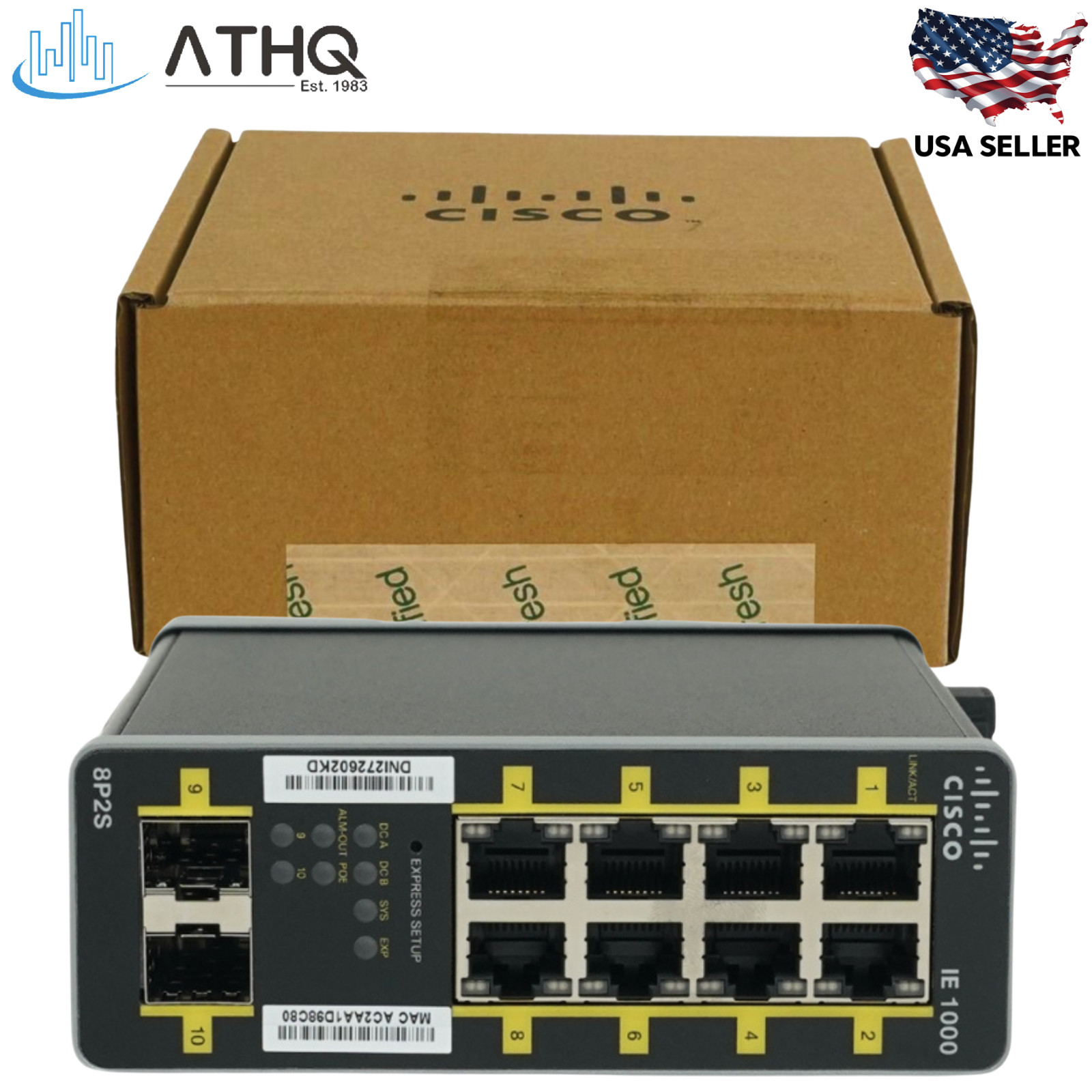

Cisco IE-1000-8P2S-LM - Industrial Ethernet Switch | 8-Port PoE/PoE+ 10/100 | 2x 1G SFP Uplinks | 180W PoE Budget | DIN Rail - Cisco Refresh

The Cisco IE-1000-8P2S-LM is a compact, fanless, DIN-rail industrial Ethernet switch built for operational technology (OT) networks, factory automation, intelligent transportation, city surveillance, and building automation. It delivers 8x Fast Ethernet (10/100) PoE/PoE+ ports with a 180W total PoE budget and up to 30W per port (802.3at), plus 2x Gigabit SFP uplinks for flexible fiber or copper connectivity. A lightly-managed, web GUI-based platform makes out-of-the-box deployment simple for OT teams with limited IT experience. This is a Cisco Refresh (certified remanufactured) unit — power supply and SFP modules sold separately.

Cisco IE-1000-8P2S-LM - Key Features & Benefits

• 8x PoE/PoE+ Fast Ethernet Ports: IEEE 802.3af (15.4W) and 802.3at (30W max per port) on all 8x 10/100BASE-T RJ-45 downlinks with a 180W total PoE budget (sum across ports, not per port) — powers IP cameras, wireless access points, VoIP phones, and industrial sensors from one switch.
• 2x Gigabit SFP Fiber Uplinks: Two 1000BASE-X SFP slots accept Cisco-supported 1G SFPs (GLC-SX-MM, GLC-LH-SM, GLC-T) and 100M FE SFPs (GLC-FE-100FX, GLC-FE-100LX); reach is transceiver-dependent — short-reach MMF up to 550m, standard SMF up to 10 km, long-reach SMF (e.g., GLC-ZX-SM-RGD) up to 70–100 km. SFP modules sold separately.
• Rugged, Fanless, DIN-Rail Design: Metal enclosure with IP30 rating, −40°C to +70°C operating range (vented enclosure), 374,052-hour MTBF, and hazardous location certifications (ANSI/ISA 12.12.01 Class I Div 2, ATEX Zone 2) for harsh OT environments.
• Lightly-Managed with Web GUI: Out-of-the-box setup via browser — VLANs (802.1Q), QoS, IGMP snooping, MSTP/RSTP, SPAN port mirroring, storm control, and EtherNet/IP (CIP) support with an EDS file for integration with Rockwell, Siemens, and other OT platforms.
• Access Control & Security: IEEE 802.1x authentication, port security with Sticky-MAC, BPDU Guard, DHCP snooping, and SNMPv3 — standards-based access control appropriate to the IE-1000's lightly-managed OT positioning.
• Redundant DC Power & Alarm I/O: Dual 48–54V DC input terminals for redundant voltage feeds (the total PoE + system load must stay within the connected power supply's rating), plus a top-panel alarm relay output (1.0A@24VDC or 0.5A@48VDC) for fault signaling. Power supply sold separately — see PWR-IE65W-PC, PWR-IE170W-PC, or PWR-IE240W-PCAC-L.

Cisco IE-1000-8P2S-LM - Technical Specifications

• Manufacturer: Cisco • Series: Industrial Ethernet 1000
• Part Number: IE-1000-8P2S-LM
• Product Type: Lightly-Managed Industrial Ethernet Switch
• Total Ports: 10 (8x FE downlinks + 2x GE SFP uplinks)
• Downlink Ports: 8x 10/100BASE-T RJ-45 with PoE/PoE+ (IEEE 802.3af/802.3at)
• Uplink Ports: 2x 1G SFP (1000BASE-X) — modules sold separately
• PoE Budget: 180W total across all 8 ports • Per-Port Max: 30W (802.3at)
• Switching Capacity: 5.6 Gbps (full-duplex, non-blocking) • Forwarding Bandwidth: 2.8 Gbps (per Cisco datasheet)
• Software Features: VLAN (802.1Q), QoS, MSTP/RSTP, IGMP snooping, DHCP snooping, SPAN, BPDU Guard, Storm Control, EtherNet/IP (CIP) with EDS file, Smartport Macro
• Security: 802.1x, Port Security, Sticky-MAC, SSH, SNMP v1/v2/v3
• Management: Web GUI (primary), SNMP, Syslog
• Input Power: 48–54V DC (redundant inputs supported; power supply sold separately)
• Operating Temperature: −40°C to +70°C (−40°F to +158°F) vented enclosure
• Dimensions (H × W × D): 5.0" × 1.8" × 5.3" (127 × 45.7 × 134 mm) incl. DIN rail
• Weight: 1.85 lb (0.84 kg) • MTBF: 374,052 hrs (Cisco-published)
• Condition: Cisco Refresh (Certified Remanufactured)

Cisco IE-1000-8P2S-LM - Frequently Asked Questions (FAQ)

• Is this a fully managed Layer 2 switch?
  No. The IE-1000 is a lightly-managed switch, configured primarily through its web device manager (browser GUI) with SNMP and syslog for monitoring. It supports core Layer 2 features — VLANs, QoS, MSTP/RSTP, IGMP snooping, SPAN, BPDU Guard, and EtherNet/IP (CIP) — but does not run Cisco IOS-XE and has limited CLI functionality. It is designed for OT users who need a simple industrial switch, not a full enterprise Catalyst platform.
• Is a power supply included, and how do I size it?
  No — an external 48–54V DC power supply is sold separately. Size it to cover switch draw (~10W) + total PoE load. For the full 180W PoE budget, use PWR-IE170W-PC-AC/DC (170W) or PWR-IE240W-PCAC-L (240W, recommended for headroom). For redundancy (dual supplies in parallel), each supply must independently cover the full load — they share the load; they do not sum.
• Are SFP transceivers included?
  No. The 2x SFP uplink slots are empty. Use Cisco-supported 1G SFPs (e.g., GLC-SX-MM for short MMF, GLC-LH-SM for 10 km SMF, GLC-ZX-SM-RGD for long-reach SMF) or 100M FE SFPs (GLC-FE-100FX, GLC-FE-100LX). Fiber distance is determined by the SFP module, not the switch — choose the transceiver based on your link type and reach.
