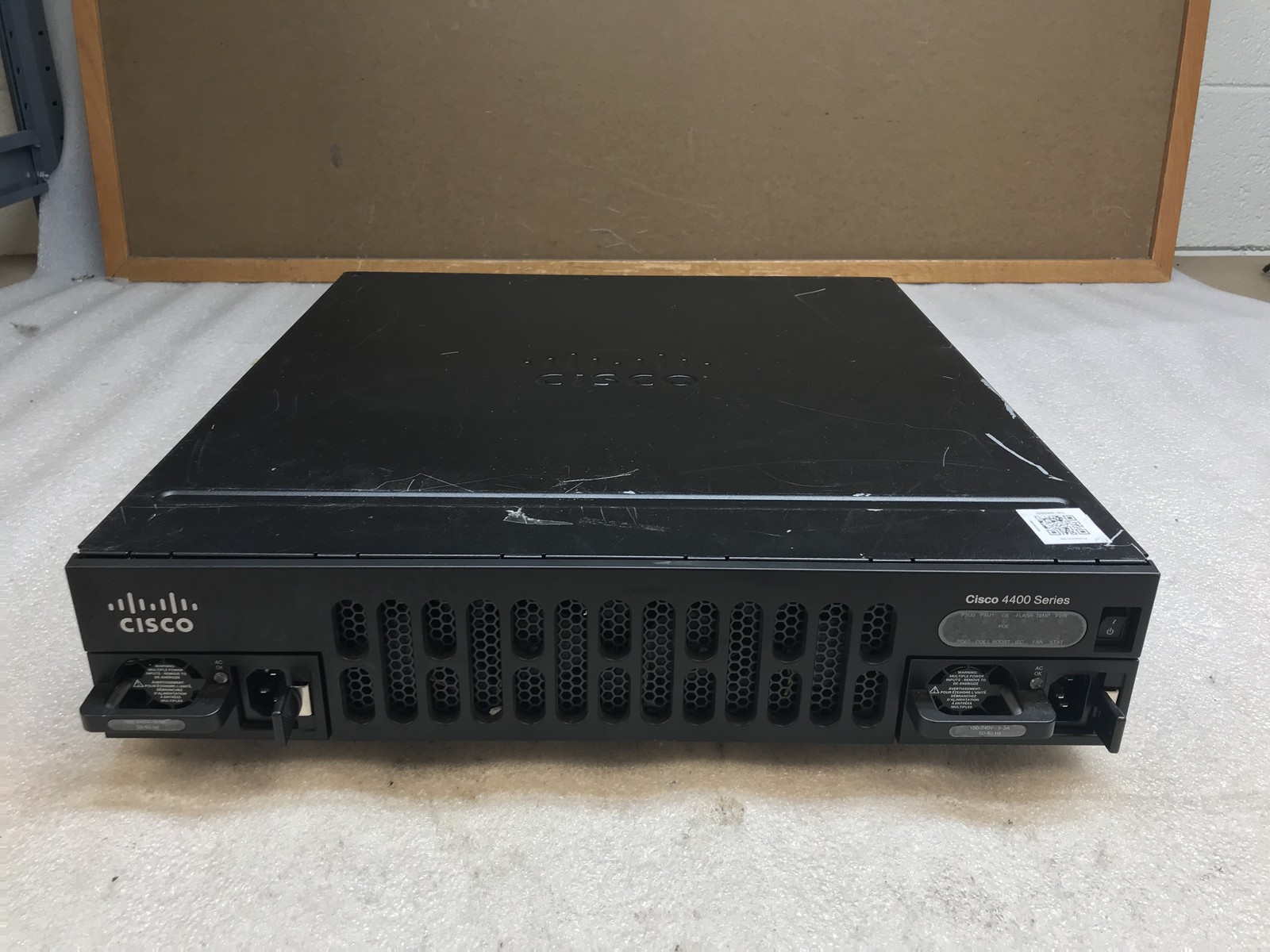

Listing Grid template example Product Photo Description Cisco ISR4451-X/K9 V03 4-Port Gigabit Router Dual PSU SecurityK9 Tested Cisco ISR4451-X/K9 V03 4-Port Gigabit Router Dual PSU SecurityK9 Tested
The Cisco ISR4451-X/K9 is a 2RU enterprise Integrated Services Router designed for high-performance WAN connectivity, security, voice, and application services. This unit has been console tested, reset to a clean configuration, and verified to boot normally without user intervention.
The boot configuration was corrected and successfully retained through a full reload. Both installed power supplies, the fan assembly, route processor, forwarding processor, and integrated network module report operational status. Environmental readings, including temperatures, voltages, and fan speeds, are normal.
Specifications
- Brand: Cisco
- Model: ISR4451-X/K9
- Hardware Revision: V03
- Form Factor: 2RU rackmount
- Integrated Network Ports: 4 × Gigabit Ethernet
- Dedicated Management Port: 1 × Gigabit Ethernet
- Physical Memory: 4 GB
- Bootflash Capacity: Approximately 7 GB
- Nonvolatile Configuration Memory: 32 MB
- IOS XE Version: 03.16.05.S Extended Support Release
- Cisco IOS Version: 15.5(3)S5
- System Throughput Level: 1,000,000 Kbps / 1 Gbps
- Installed Licenses: Permanent IP Base and SecurityK9
- Power Supplies: 2 × Cisco PWR-4450-AC 450W AC
- Fan Assembly: Cisco ACS-4450-FANASSY
- Configuration Register: 0x2102
Key Features
- Four integrated Gigabit Ethernet routing interfaces
- Permanent Cisco SecurityK9 license installed and active
- Permanent IP Base license installed and active
- Licensed for up to 1 Gbps aggregate throughput
- Dual redundant hot-swappable 450W AC power supplies
- Modular NIM and service-module expansion capability
- Hardware-assisted routing and security services
- Suitable for enterprise WAN, VPN, branch-office, and lab applications
Testing Performed
- Successfully powered on and completed POST
- Successfully booted IOS XE from internal bootflash
- Corrected and verified the boot-image configuration
- Restored configuration register to normal 0x2102 operation
- Saved configuration and verified retention after reboot
- Verified both 450W power supplies report ok
- Verified route processor and forwarding processor report ok, active
- Verified integrated four-port Gigabit Ethernet module reports OK
- Verified fan assembly and all monitored fan speeds
- Verified temperatures, voltages, and power readings are normal
- Verified permanent SecurityK9 and IP Base licenses
- Verified licensed 1 Gbps throughput level
- Checked system logs after reboot with no NVRAM, critical, failure, or error messages found
Important Notes
- Network interfaces show down because no network cables were connected during final testing
- AppX, Unified Communications, and other optional feature licenses are not permanently activated
- No additional NIM or service modules are installed
- Unit housing may have scratches, scuffs, labels, or other cosmetic wear from previous rack installation
- IOS licensing and software entitlement transferability are not ISR4451-X/K9 V03 router
- 2 × Cisco PWR-4450-AC 450W power supplies
- Cisco ACS-4450-FANASSY fan assembly
- Power Cable
Not Included
- User Manual
- Original Packaging
Specifications Functional Condition:
F3 - Key Functions Working
Equipment in this category has undergone testing to confirm that its core functionalities are operational. Essential functions that a typical user would expect are verified working. Secondary functions or software may not be present or configured. Units may be missing components or parts that are not essential to key functions.
Cosmetic Condition:
C4 - Used Good
Good overall used condition. Some light scratches or scuffs. No dents, dings or cracks.
Data Sanitization:
S3 - Data Clear
Device has been sanitized by one of the following methods: Factory Reset, NIST 800-88 Clear, or DOD 5220.22
Mpn
ISR4451-X/K9 V03 Function Tests Powers On
