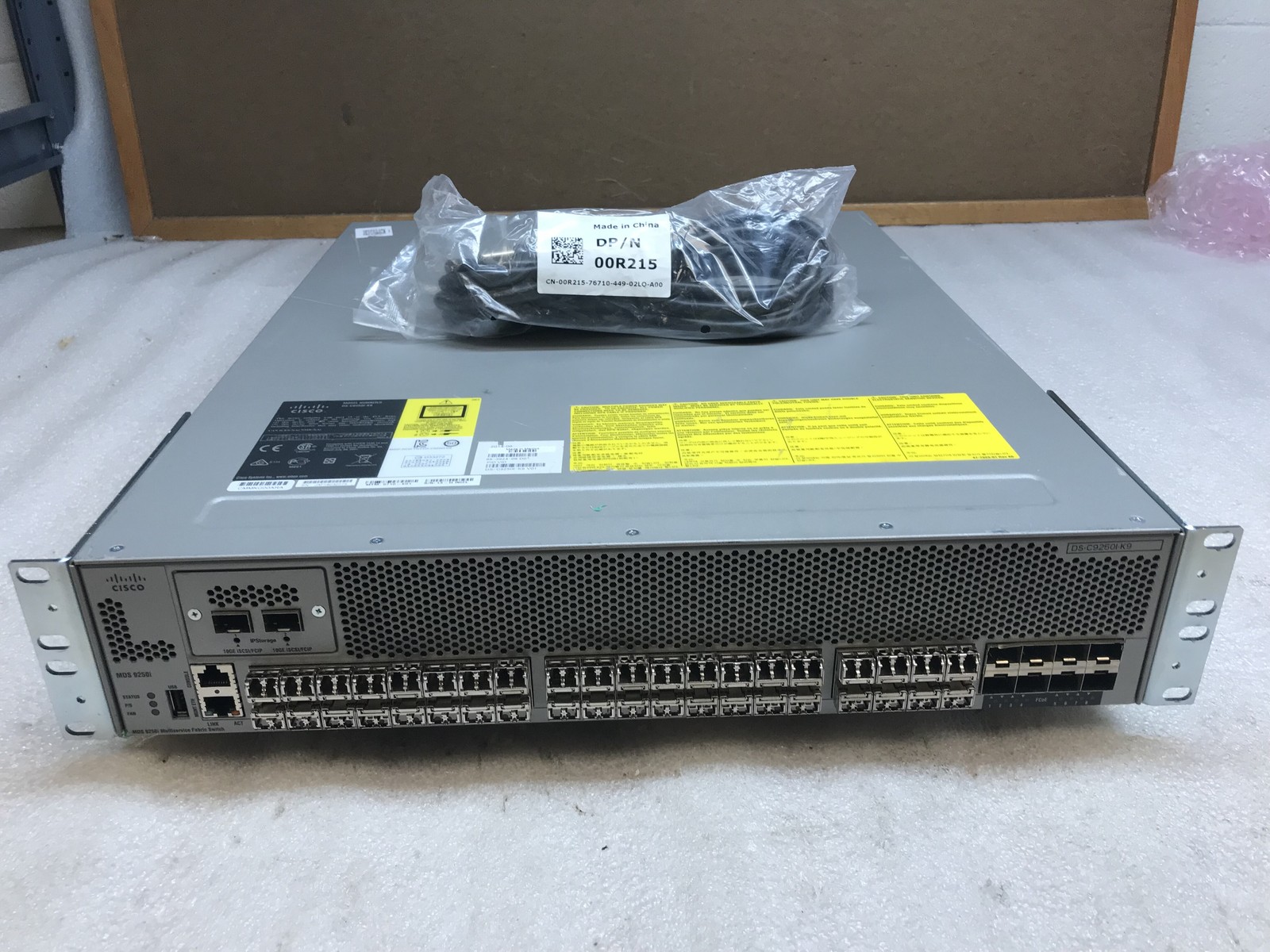

Listing Grid template example Product Photo Description Cisco MDS 9250i DS-C9250I-K9 Multiservice Fabric Switch W/ 3x PSU & 40 16G SFP Cisco MDS 9250i DS-C9250I-K9 Multiservice Fabric Switch W/ 3x PSU & 44 16G SFP

The Cisco MDS 9250i is a fixed-configuration 2RU multiservice fabric switch designed for Fibre Channel storage networking, FCoE connectivity, and SAN extension over IP. It provides forty physical 16Gb Fibre Channel ports, eight 10GbE FCoE ports, and two 1/10GbE IP storage services ports supporting FCIP and iSCSI.

This unit powers on, boots successfully, and has been factory reset to the initial System Admin Account Setup screen. It includes 44 Cisco DS-SFP-FC16G-SW short-wave Fibre Channel SFP+ transceivers and three hot-swappable 300W AC power Cisco

Model: MDS 9250i

Manufacturer Part Number: DS-C9250I-K9

Switch Type: Multiservice Fibre Channel SAN Fabric Switch

Form Factor: 2RU rack-mountable

Fibre Channel Ports: 40 physical SFP+ ports

Fibre Channel Speeds: 2/4/8/16Gbps autosensing

Base Fibre Channel Activation: 20 ports

Maximum Fibre Channel Activation: 40 ports with applicable port license

FCoE Ports: 8 × 10GbE SFP+ ports

IP Storage Services Ports: 2 × 1/10GbE ports

Supported IP Storage Protocols: FCIP and iSCSI

Management: Ethernet management, serial console, and USB

Operating System: Cisco MDS NX-OS

Power Supplies: 3 × DS-C50I-300AC 300W AC

Power Redundancy: Hot-swappable 2+1 design

Airflow: Front-to-back

Included Transceivers: 44 × Cisco DS-SFP-FC16G-SW

Included transceiver specifications

• Manufacturer Part Number: DS-SFP-FC16G-SW
• Type: Short-wave Fibre Channel SFP+
• Supported Speeds: 4/8/16Gbps
• Wavelength: 850nm
• Connector: Duplex LC
• Fiber Type: Multimode fiber

Key Features

• High-density 16Gb Fibre Channel SAN connectivity
• Integrated FCoE, FCIP, and iSCSI capabilities
• Supports Fibre Channel zoning and fabric security
• Cisco SAN Extension over IP functionality
• Hot-swappable power supplies, fan modules, and SFP+ transceivers
• Three installed power supplies for 2+1 redundancy
• Fixed 2RU chassis suitable for enterprise and data-center SAN environments
• Managed through Cisco MDS NX-OS

Important Notes

• Tested for successful power-on, boot, and console access
• Factory reset to the initial System Admin Account Setup screen
• Scratches and blemishes are present on the housing
• Forty physical Fibre Channel ports are present; the number of activated ports depends on the installed license
• Included SFP+ transceivers have not been individually traffic tested unless you actually tested them
• No representation should be made regarding additional feature or port-activation licenses until license status is verified

Included

• 1 × Cisco MDS 9250i DS-C9250I-K9 Switch
• 3 × Cisco DS-C50I-300AC 300W AC Power Supplies
• 40 × Cisco DS-SFP-FC16G-SW 16Gb Fibre Channel SFP+ Transceivers
• Rack Ears
• 1 × Power Cable

Not Included

• Rack Rail Kit
• Console Cable
• Ethernet or Fiber-Optic Cables
• Manual
• Original packaging

Specifications Functional Condition:
F3 - Key Functions Working

Equipment in this category has undergone testing to confirm that its core functionalities are operational. Essential functions that a typical user would expect are verified working. Secondary functions or software may not be present or configured. Units may be missing components or parts that are not essential to key functions.

Cosmetic Condition:
C4 - Used Good

Good overall used condition. Some light scratches or scuffs. No dents, dings or cracks.

Data Sanitization:
S3 - Data Clear

Device has been sanitized by one of the following methods: Factory Reset, NIST 800-88 Clear, or DOD 5220.22

Port Count
48 Port Speed
10G Management Type
Managed Poe Support
None Poe Budget
NO Stackable
NO Layer
Layer 3 Sfp Ports
48 Function Tests Powers On
Passed Management Interface Access
Passed Port Connectivity
Passed Link Lights
Passed Factory Reset
