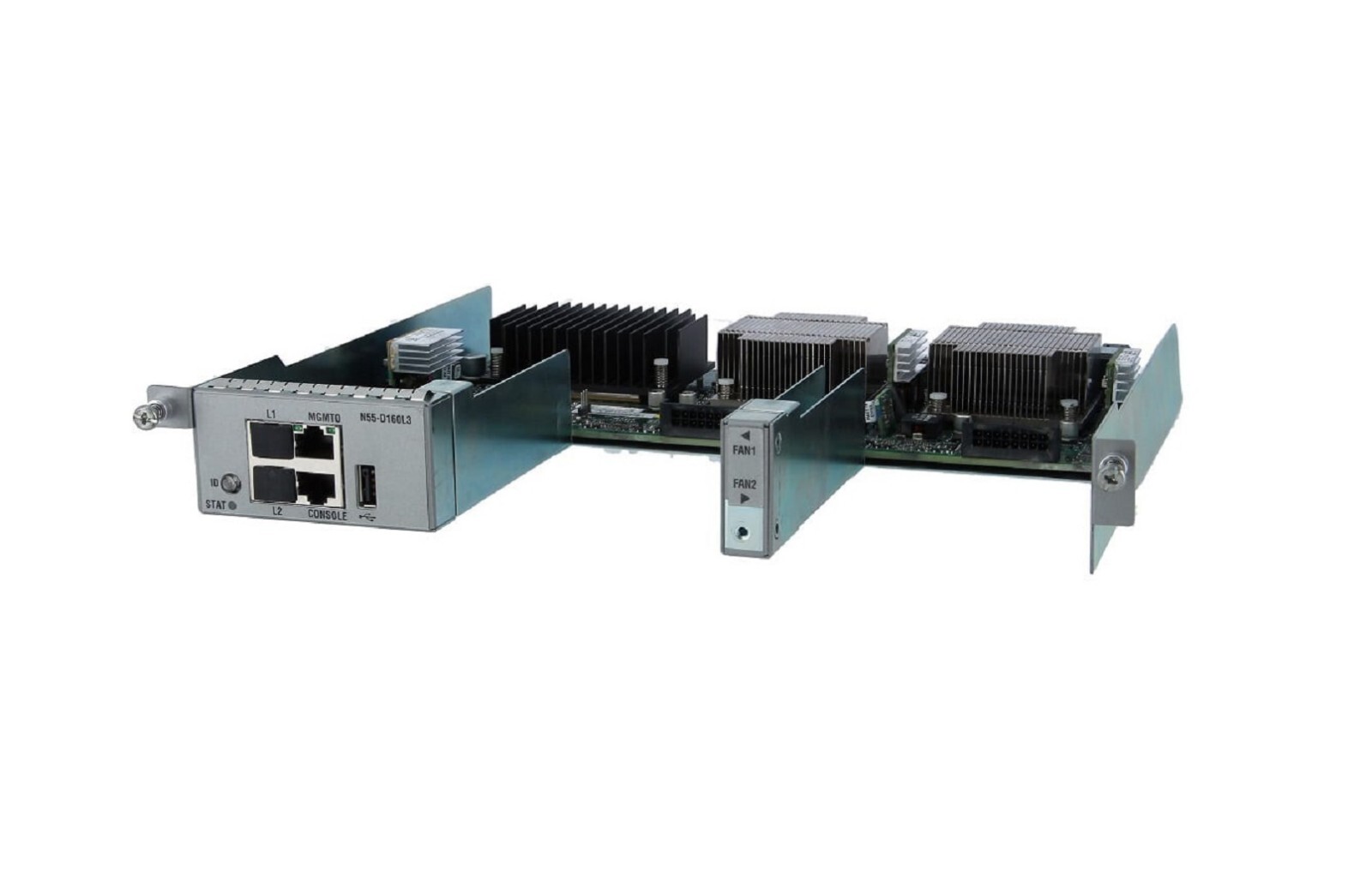

Cisco Nexus N55-D160L3 5548 Layer 3 Daughter Card Expansion Module 1 Year Warranty
Ask More Qty
N55-D160L3 Nexus 5548 2 Ports Layer 3 Daughter Card 160 Gigabit Per Second Expansion Module
Action is including: 1x N55-D160L3
* These items are used, tested and 100% in good condition. ASK MORE QUANYITY
* 1 Year warranty.
* Free Shipping.
Description: The N55-D160L3 Cisco Nexus 5548 Layer 3 Daughter Card Expansion Module is an expansion module designed to provide additional functionality and capacity to the Cisco Nexus 5548 switch. Specifically, this module adds Layer 3 routing capabilities to the switch, allowing it to route traffic between different subnets or VLANs.
Industrial automation and control systems (IACS) are systems used to control and monitor industrial processes. These systems often rely on communication networks to transfer data between different devices and systems. The Cisco Nexus 5548 switch with the N55-D160L3 expansion module can be used as a key component in an IACS, providing reliable, high-performance networking capabilities.
In an IACS, the switch with the expansion module can be used to route data between different devices and systems, ensuring that critical data is delivered in a timely and reliable manner. The switch can also be configured to provide redundancy and failover capabilities, helping to ensure that the system remains operational even in the event of a failure.
Network Topology and Architecture
The N55-D160L3 Cisco Nexus 5548 Layer 3 Daughter Card Expansion Module is a networking module that is designed to be used with the Cisco Nexus 5548UP Switch. It is used to expand the capabilities of the switch, specifically adding layer 3 routing capabilities.
In terms of network topology, the N55-D160L3 module is designed to be used in a data center or enterprise environment where there are high bandwidth requirements and a need for reliable and efficient network connectivity. It supports a variety of network topologies including Ethernet, Fibre Channel, and FCoE (Fibre Channel over Ethernet).
The N55-D160L3 module has three main components: the data plane, the control plane, and the management plane. The data plane is responsible for forwarding packets and is implemented using ASICs (Application-Specific Integrated Circuits). The control plane is responsible for managing the network and is implemented using a CPU (Central Processing Unit) and memory. The management plane is responsible for managing the device itself and is implemented using a separate CPU and memory.
In terms of architecture, the N55-D160L3 module uses a distributed architecture. This means that the data plane and control plane functions are separated, with the data plane functions being implemented using ASICs and the control plane functions being implemented using a CPU. This allows for greater scalability and performance, as the ASICs can handle high-speed packet forwarding while the CPU can handle the more complex control plane functions.
Configuration and Management Options
The N55-D160L3 Cisco Nexus 5548 Layer 3 Daughter Card Expansion Module can be configured and managed using several options. Here are some of the key options:
Command Line Interface (CLI): The Cisco Nexus 5548 switch with the N55-D160L3 expansion module can be configured and managed using the CLI. The CLI provides a command-based interface that allows administrators to configure and manage the switch using a series of commands.
Simple Network Management Protocol (SNMP): SNMP is a protocol that allows network administrators to monitor and manage network devices, including the Cisco Nexus 5548 switch with the N55-D160L3 expansion module. Using SNMP, administrators can collect and analyze data about the switch's performance and health.
Cisco Data Center Network Manager (DCNM): DCNM is a management tool that provides a centralized, web-based interface for configuring and managing multiple Cisco devices, including the Nexus 5548 switch with the N55-D160L3 expansion module. DCNM allows administrators to monitor device status, configure device settings, and perform software upgrades.
Cisco Application Policy Infrastructure Controller (APIC): APIC is a policy-based automation solution that provides a centralized management interface for Cisco data center switches, including the Nexus 5548 switch with the N55-D160L3 expansion module. APIC allows administrators to define policies for managing the network and automatically applies those policies to the devices.
Cisco Prime Infrastructure: Cisco Prime Infrastructure is a management tool that provides a single interface for managing Cisco devices, including the Nexus 5548 switch with the N55-D160L3 expansion module. It provides features such as network discovery, device configuration management, and software image management.
General Information
Manufacturer: Cisco
MPN: N55-D160L3
Product Name: Layer 3 Daughter Card
Product Type: Expansion Module
Form Factor: Plug-in module
Networking
Connectivity Technology: Wired
Performance: Layer 3 throughput: 160 Gbps
Expansion / Connectivity
Interfaces: 2 - RJ-45 1 x management - RJ-45 1 x management - RJ-45 1 x USB - 4 pin USB Type A
Compatible Slots: 1 x expansion slot
Compatibility
Cisco Nexus 5548 Storage Solutions Bundle, 5548P, 5548UP, 5548UP Storage Solutions Bundle
