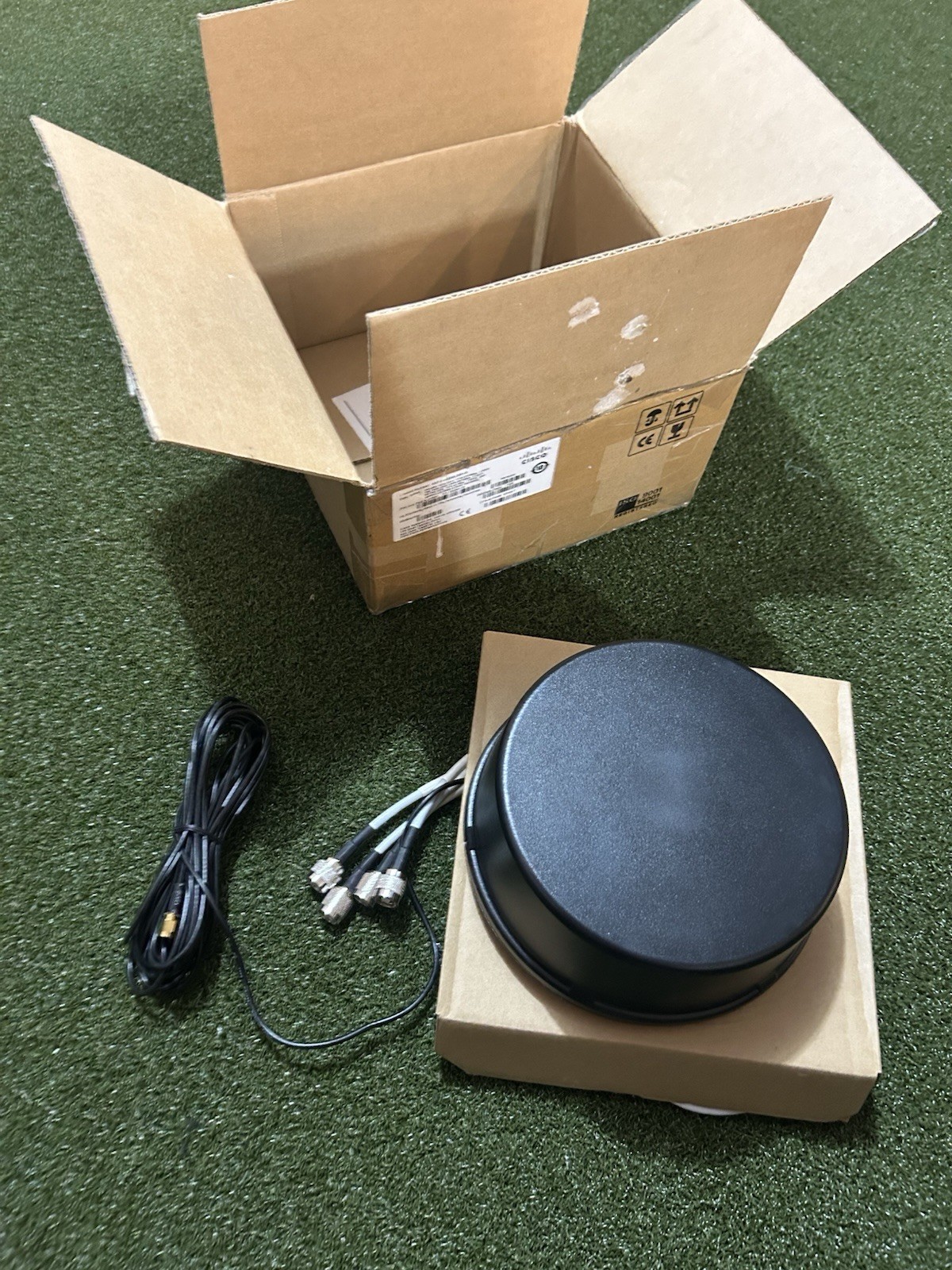

The Cisco ANT-5-4G2WL2G1-O (also written as ANT-5-4G2WL2G1-O=) is a rugged, 5-in-1 multi-element outdoor and vehicular roof-mountable combo antenna.

It integrates five distinct RF connections into a single housing: two for 4G/LTE cellular, two for dual-band WLAN (Wi-Fi), and one for GPS/GNSS.

It is engineered for industrial routers, outdoor fixed enclosures, and fleet or transportation vehicles.

Key Specifications:

Antenna Type: Omni-directional, multi-band

Cellular Bands: Supports 2G, 3G, and 4G/LTE across 698–960 MHz and 1710–2700 MHz

Wi-Fi Bands: Dual-band support covering 2.4–2.5 GHz and 4.9–5.875 GHz

GPS/GNSS: Low-noise active GPS receiver tuned to 1575.42 MHz with built-in interference rejection

Physical Design: IP67 waterproof rated, UV-stable polycarbonate black housing built to withstand vehicular shock and vibration

Dimensions: Approximately 7.1 inches high by 2.6 inches wide (mounting base diameter roughly 7.1 inches)

Never used. This is surplus inventory from a recent contract, priced low to clear shelf space quickly.
