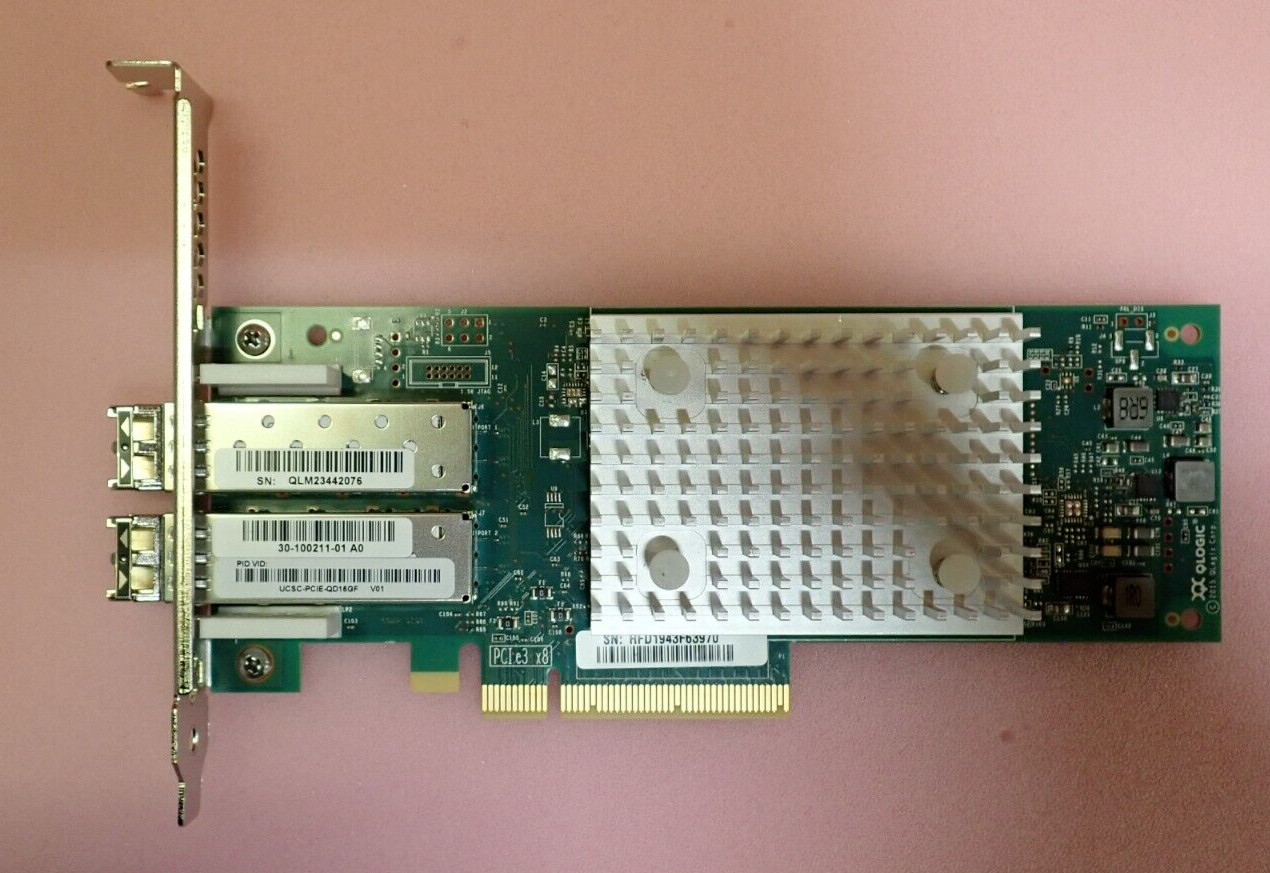

Cisco QLE2692-CSC Dual Port 16Gb FC Host Bus Adapter UCSC-PCIE-QD16GF FH + 2x SFP
Model:QLE2692-CSCCisco PID/VID:UCSC-PCIE-QD16GFIn Good Condition, Full Working OrderTested2 Year WarrantyLow Profile Card With Full Height Bracket
Includes 2x 16G SFP's
Included:

• 1 xCisco QLE2692-CSC Dual Port 16Gb FC Host Bus Adapter UCSC-PCIE-QD16GF Full Height Bracket
• 2 x 16Gb FC SFP Transceiver Modules

Specification:
Host Bus Interface Specifications

• Bus Interface: QLE2692-CSC: PCIe 3.0×8 (dual port)
• Host Interrupts: INTx and Express Base Specification, rev. 3.1
• PCI Express Card Electromechanical Specification, rev. 3.0
• PCI Bus Power Management Interface Specification, rev. 1.2

Fibre Channel Specifications

• Throughput: 16Gbps line rate per port (maximum)
• Logins: Support for 2,048 concurrent logins and 2,048 active exchanges per port
• Port Virtualization: Fibre Channel Protocol (SCSI-FCP)
• Fibre Channel Tape (FC-TAPE) Profile
• SCSI Fibre Channel Protocol-2 (FCP-2)
• Second Generation FC Generic Services (FC-GS-2)
• Third Generation FC Generic Services (FC-GS-3)
• PCI Hot Plug Specification, rev. 1.1
• Fibre Channel-Physical Interface-5 (FC-PI-5)
• Fibre Channel-Physical Interface-6 (FC-PI-6)

Tools and Utilities

• Management Tools and Device Utilities: QConvergeConsole integrated network management utility (GUI) for Linux and Windows
• Boot Support: BIOS, Unified Extensible Firmware Interface (UEFI)
• APIs: SNIA HBA API V2, SMI-S

End-to-End Provisioning and Management Features:

• The following features require a supported Brocade switch running Fabric OS version 7.3.0a or and Ping
• FC Traceroute
• Fabric device management interface (FDMI) enhancements

Physical Specifications

• Ports: QLE2692-CSC: dual-port, Gen 5 FC
• Form Factor: Low-profile PCIe card (6.6 inches × 2.731 inches)

Environment and Equipment 0°C to 55°C (32°F to 131°F)

Storage: –20°C to 70°C (–4°F to (noncondensing): 10% to 90%

Storage: 5% to 95%
