- Basic Information

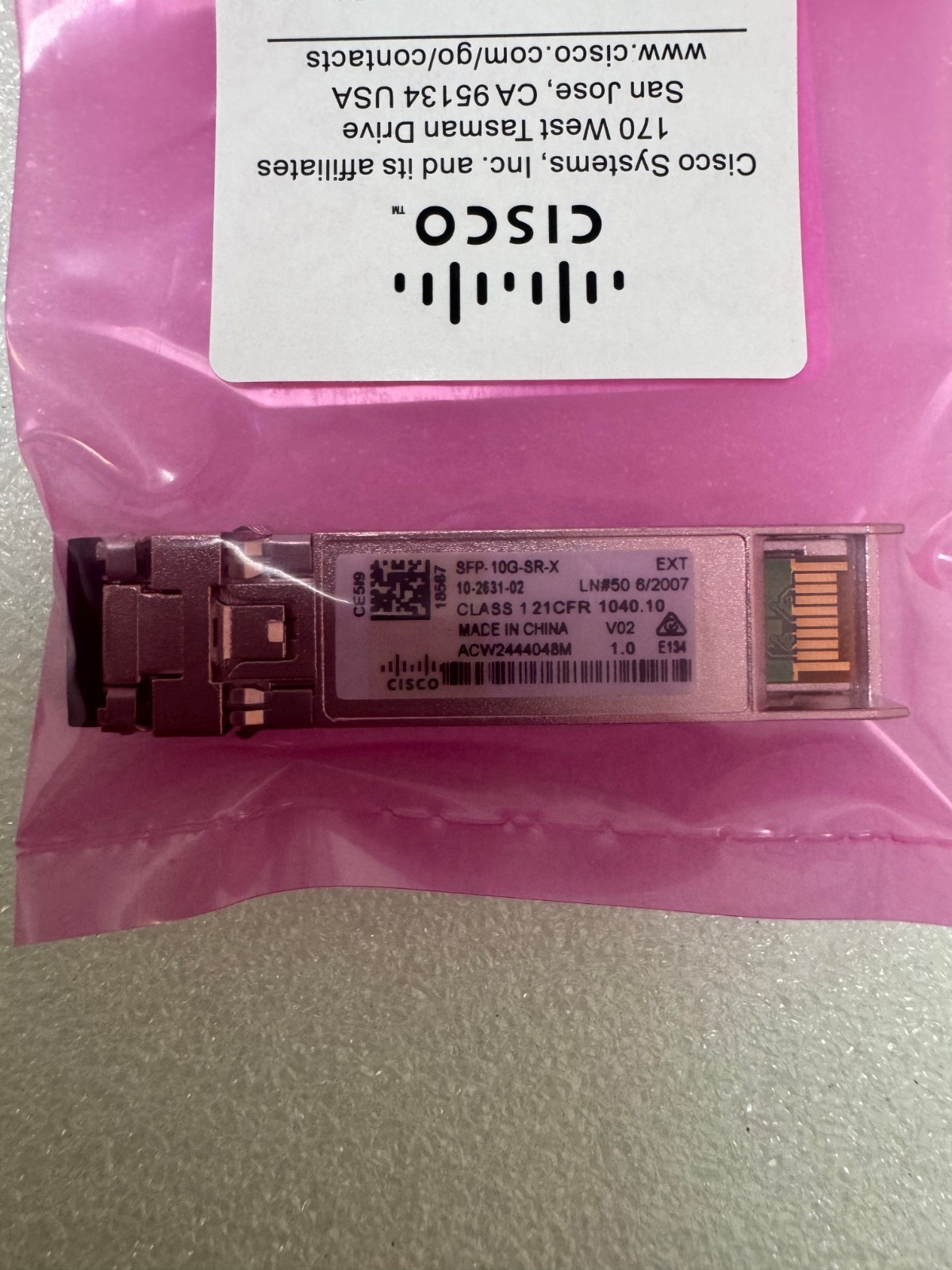

- Model: SFP-10G-SR-X.
- Form Factor: Adopts the SFP+ (Small Form-factor Pluggable Plus) form factor, which has the advantages of small size and high density, being compatible with standard SFP+ ports.
- Compliance: Complies with standards such as IEEE 802.3ae, SFP+ MSA (Multi-Source Agreement), etc.
- Transmission Characteristics
- Data Rate: The data rate can reach 10Gbps.
- Wavelength: The operating wavelength is 850nm.
- Fiber Type: Suitable for multi-mode fiber (MMF), including OM3 and OM4 fibers.
- Transmission Distance: On standard FDDI - grade multi-mode fiber, the link length is 26m. Using 2000MHz·km MMF (OM3), the maximum transmission distance can reach 300m; using 4700MHz·km MMF (OM4), the maximum transmission distance can reach 400m.
- Optical Interface: The connector type is usually LC/PC duplex, which has the characteristics of reliable connection and high density.
- Key Features
- Hot-swappable: Supports hot-swapping, allowing the module to be installed or removed without powering off the network equipment, which is convenient for maintenance and expansion.
- Digital Optical Monitoring (DOM): Supports the DOM function, which can monitor real-time parameters of the optical module, such as optical output power, optical input power, temperature, and laser bias current, helping to detect and troubleshoot faults.
- Extended Temperature Range: Some SFP-10G-SR-X modules can work in an extended temperature range, such as -5°C to 85°C, which improves the environmental adaptability of the module.
- Application Scenarios: It is mainly used in short-distance high-speed link scenarios in data centers, enterprise networks, and core distribution layers, such as connecting switches, servers, and storage devices within the same room or building.
 |
|
