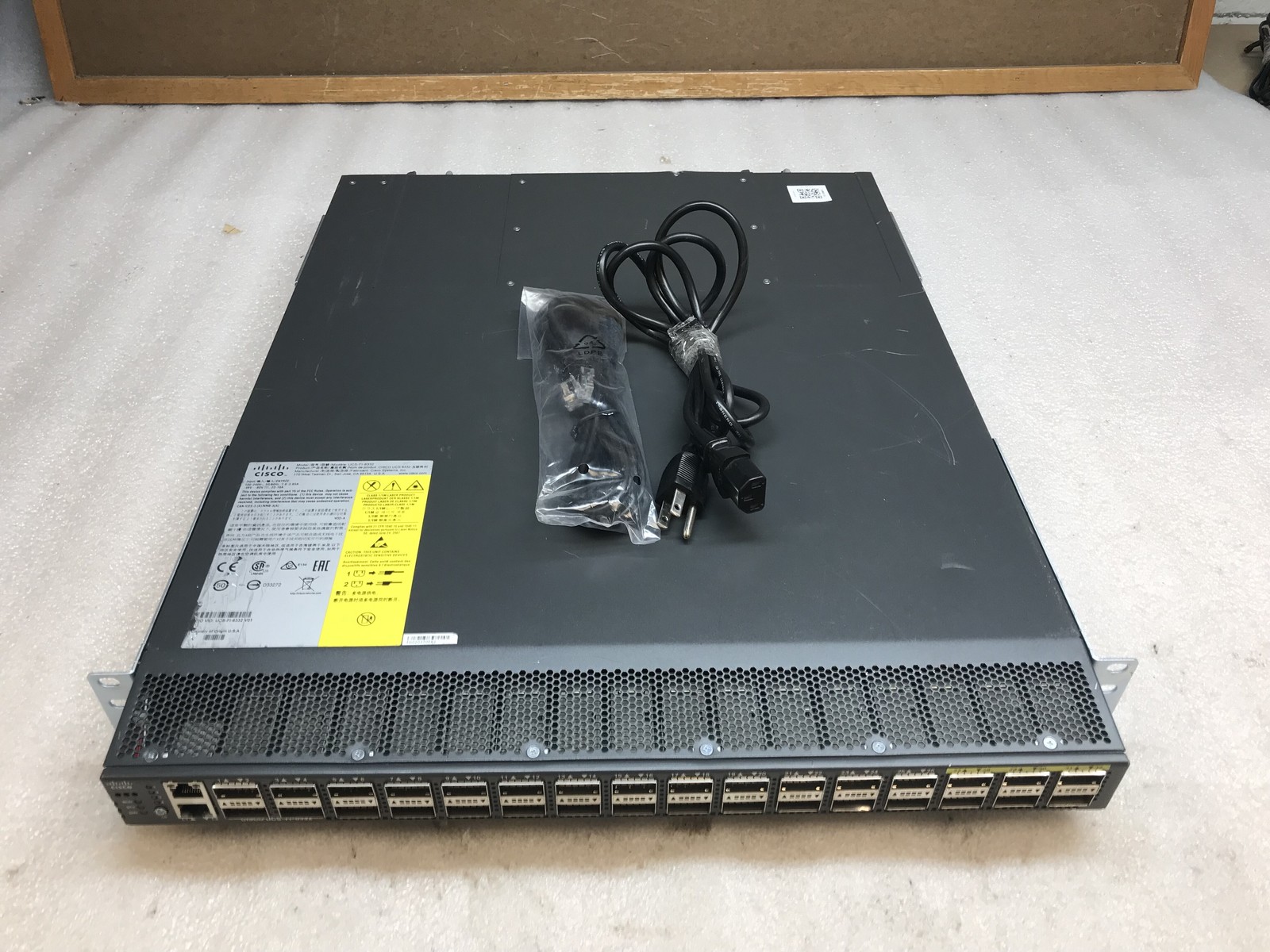

Listing Grid template example Product Photo Description Cisco UCS-FI-6332 32-Port 40GbE Fabric Interconnect V00 Tested Reset Cisco UCS-FI-6332 32-Port 40GbE Fabric Interconnect V00 Tested Reset
The Cisco UCS-FI-6332 is a 32-port 40GbE Fabric Interconnect designed for Cisco Unified Computing System environments. This 1U unit provides high-bandwidth connectivity and centralized management for UCS servers, networking, and storage infrastructure.
This unit has been powered on and tested. Hardware POST completed successfully, the Fabric Interconnect reported an operable status with normal thermal condition, and the unit was factory reset to an unconfigured state for the next user.
Specifications
- Model: UCS-FI-6332
- Product: Cisco UCS 6332 Fabric Interconnect
- Version: V00
- Ports: 32 x 40GbE QSFP+ ports
- Form Factor: 1U rack mount
- Installed Memory: 32 GB
- Management: Cisco UCS Manager
- Firmware Tested: UCS Manager 4.1(3c)
- Redundant Power Supply Support
- Hot-swappable fan modules
Key Features
- 32 high-density 40GbE QSFP+ interfaces
- Designed for Cisco Unified Computing System environments
- Centralized management of UCS compute and networking resources
- High-bandwidth, low-latency data center connectivity
- Redundant power and cooling design
- Rack-mountable 1U chassis
Testing Performed
- Unit successfully powered on
- Hardware POST completed successfully
- SEEPROM test passed
- Gigabit Ethernet hardware test passed
- PCIe test passed
- FPGA test passed
- Fabric Interconnect reported Operability: Operable
- Thermal status reported: OK
- Internal storage detected and accessible
- Firmware successfully booted and verified
- Configuration erased and unit factory reset for new setup
Important Notes
- Scratches, scuffs, and cosmetic blemishes are present on the housing from previous use
- Housing has a dent near fan bay 2
- Fan module in the affected area remains removable and intact
- Unit has been factory reset and will require configuration by the new owner
- Port 24 has slightly bent housing.
Included
- Cisco UCS-FI-6332 Fabric Interconnect
- 2x UCS-PSU-6332-AC V01 Power Supply Units
- 4x Fan Modules
- Rack Ears
- Power Cable
- Ethernet Cable
Not Included
- User Manual
- Original Packaging
Specifications Functional Condition:
F3 - Key Functions Working
Equipment in this category has undergone testing to confirm that its core functionalities are operational. Essential functions that a typical user would expect are verified working. Secondary functions or software may not be present or configured. Units may be missing components or parts that are not essential to key functions.
Cosmetic Condition:
C4 - Used Good
Good overall used condition. Some light scratches or scuffs. No dents, dings or cracks.
Data Sanitization:
S3 - Data Clear
Device has been sanitized by one of the following methods: Factory Reset, NIST 800-88 Clear, or DOD 5220.22
Mpn
UCS-FI-6332 Function Tests Powers On
Passed Physical Inspection
Passed Functions
Passed Buttons
Passed Shipping
