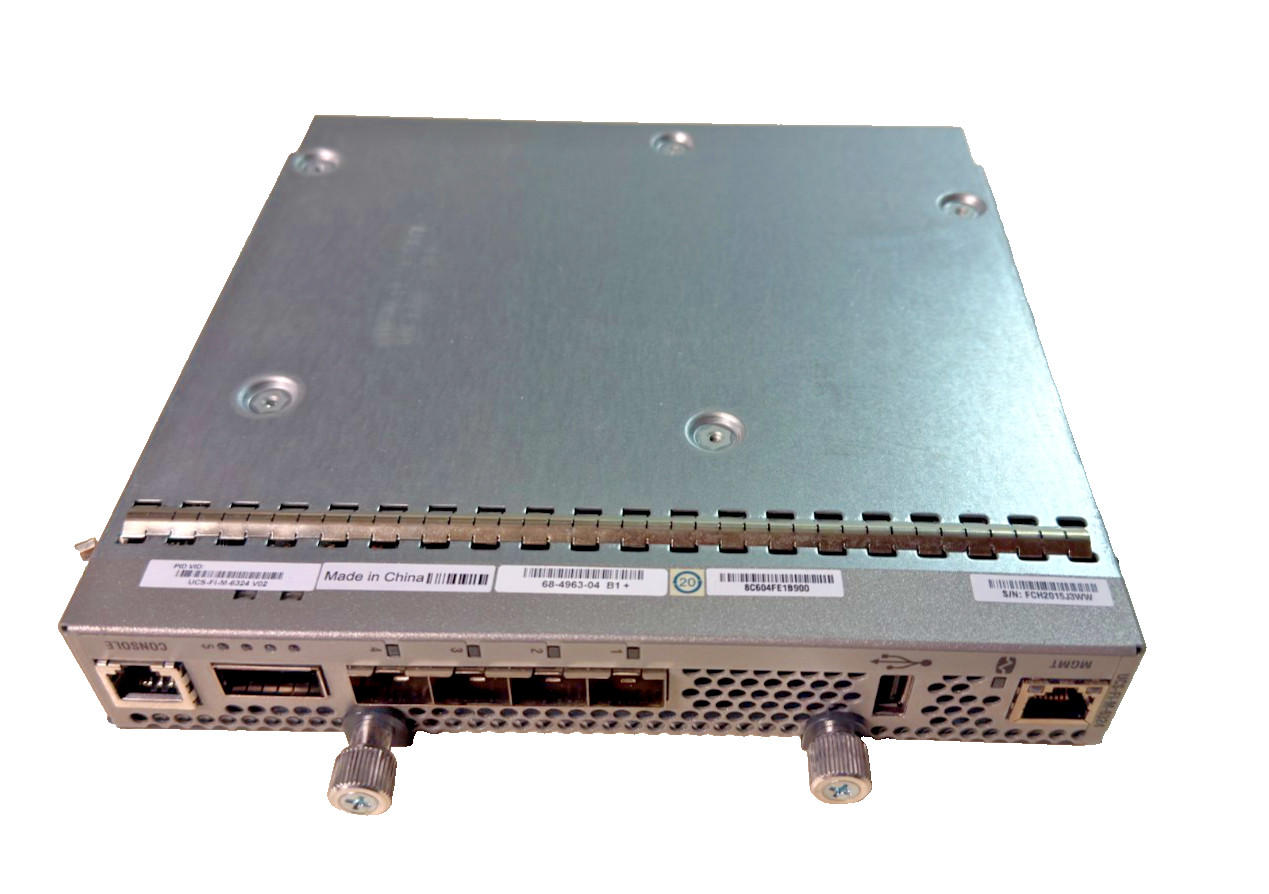

Cisco UCS-FI-M-6324 in-chassis Fabric Interconnect, pulled from a working production Cisco UCS Mini deployment and tested functional before removal. I have 3 available — sold individually, not as a matched set (though I can bundle for a buyer who wants more than one — message me).

Note: Cisco Fabric Interconnects are designed to run in redundant pairs (Fabric A / B). This listing is for a single unit — ideal if you're adding a second FI to an existing 6324 you already own, replacing a failed unit, or running non-redundant in a lab/test environment. If you need a working pair, buy two.

Specs:

• In-chassis I/O module for the Cisco UCS 5108 Blade Server Chassis (UCS Mini architecture) — installs into the chassis IOM bay, no rack rails required
• 4x unified 10GbE/FCoE/Fibre Channel SFP+ ports, 1x 40GbE QSFP+ scalability port
• 16x 10GBASE-KR internal lanes for direct blade connectivity (20 Gbps per server)
• Up to 500 Gbps switching capacity, sub-microsecond cut-through latency
• Requires UCS Manager 3.0 or later

Licensing:

• The four 10G unified SFP+ ports ship with a factory-installed base license — usable out of the box, no additional purchase required
• The 40G QSFP+ scalability port is not licensed by default; activating it requires a separate per-FI license (PID UCS-6324-40G), not included

Condition / disclosures:

• Removed from a working production environment, powered on and verified functional before pull
• No transceivers, cables, rail kit, or power cords included — module only
• Sold as-is, no warranty. This is the UCS Mini in-chassis variant — not compatible with standalone rack-mount UCS 6300-series chassis
