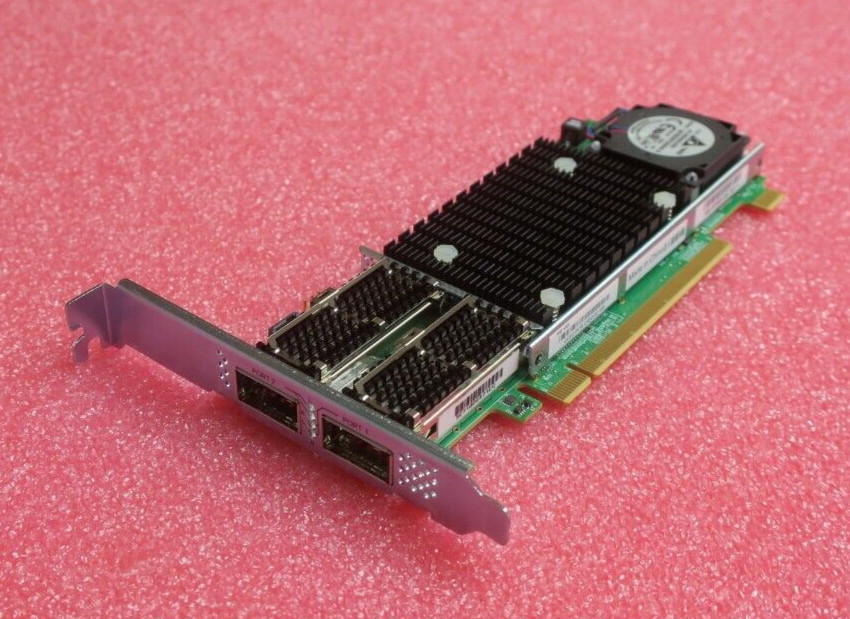

Cisco UCSC-PCIE-C40Q-03 Dual-Port 40Gb QSFP Virtual Interface Card VIC 1385

In Good Condition, Full Working Order
Tested
2 Year Warranty
Low Profile Card With Full Height Bracket

Includes:

• 1 xCisco UCSC-PCIE-C40Q-03 Dual-Port 40Gb QSFP Virtual Interface Card VIC 1385

Specification:

• Standards:
• 40 Gigabit Ethernet
• IEEE 802.3ae
• IEEE 802.3x
• IEEE 802.1q VLAN
• IEEE 802.1p
• IEEE 802.1Qaz
• IEEE 802.1Qbb
• Pre-standard IEEE 802.1BR
• Jumbo frames up to 9 KB
• Fibre Channel Protocol (FCP)
• SCSI-FCP
• T11 FCoE
• Components:Cisco UCS custom Application-Specific Integrated Circuit (ASIC)
• Ports:2 x 40-Gbps FCoE QSFP ports
• Connectivity:PCIe 3.0 x 16 form factor
• Performance:40-Gbps line rate per port, limited by PCIe 3.0 to 64 Gbps per PCIe port
• Management:Cisco UCS Manager Release 2.2 (4) and later (standalone server mode)
• Number of interfaces:Over 256 virtual interfaces (approximately 8 are reserved for internal use; other factors such as the OS and hypervisor may limit this number further)
• Supported switches:
• Cisco Nexus switches supporting SFP+ and QSFP+ host interfaces including:
• Cisco UCS-FI-64108
• Cisco UCS-FI-6454
• Cisco UCS-FI-6332-16UP
• Cisco UCS-FI-6332
• Cisco UCS-FI-6248
• Cisco UCS-FI-6296
• Cisco Nexus 3016Q Switch
• Cisco Nexus 3064-X Switch
• Cisco Nexus 3064-T Switch
• Cisco Nexus 3132Q Switch
• Cisco Nexus 3172 Switch
• Cisco Nexus 3172TQ Switch
• Cisco Nexus 6001 Switch
• Cisco Nexus 6004 Switch
• Cisco Nexus 9332PQ Switch
• Cisco Nexus 9508 Switch
• Physical dimensions:
• Length = 6.6 in. (16.76 cm)
• Width = 2.5 in. (6.35 cm)
• Typical power:17 watts (W)

System Requirements/Compatibility:
The Cisco UCS VIC 1385 is designed for use only on Cisco UCS C-Series Rack Servers. A single VIC 1385 is supported on Cisco UCS C220 M4/M5, C240 M4/M5, C460 M4, and C480 M5 Rack Servers. The C-series rack servers can support up to two VIC 1385 cards.CS 294343 -30 295149 -20 dup .co.ukCS 312659 -36 312660 -9 dup dup .co.uk
