Condition

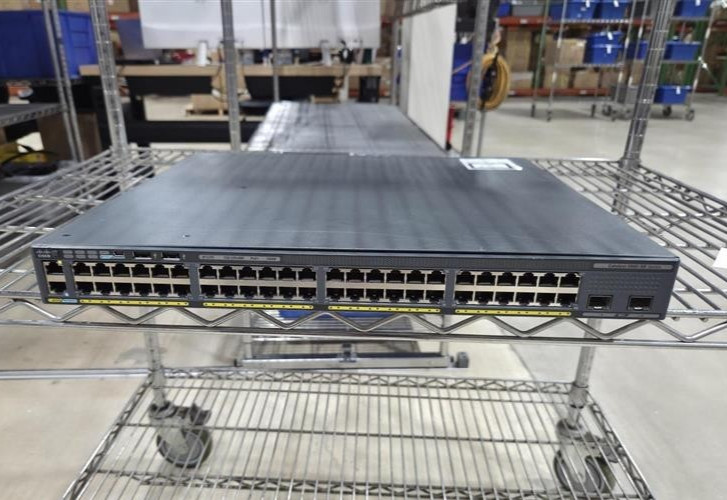

- Switch has dents to the chassis, POE and data do not work at all.
- Have been reset to factory default settings and are ready to be configured
- No power cord included
Warranty:
- Returns accepted, buyer pays shipping
Show Ver:
Switch#show versionCisco IOS Software, C2960X Software (C2960X-UNIVERSALK9-M), Version 15.2(7)E2, RELEASE SOFTWARE (fc3)Technical Support:Copyright (c) 1986-2020 by Cisco Systems, Inc.Compiled Sat 14-Mar-20 16:53 by prod_rel_team
ROM: Bootstrap program is C2960X boot loaderBOOTLDR: C2960X Boot Loader (C2960X-HBOOT-M) Version 15.2(6r)E, RELEASE SOFTWARE (fc1)
Switch uptime is 24 minutesSystem returned to ROM by power-onSystem restarted at 07:21:27 UTC Tue Aug 4 2026System image file is reload reason: Unknown reason
This product contains cryptographic features and is subject to UnitedStates and local country laws governing import, export, transfer anduse. Delivery of Cisco cryptographic products does not implythird-party authority to import, export, distribute or use encryption.Importers, exporters, distributors and users are responsible forcompliance with U.S. and local country laws. By using this product youagree to comply with applicable laws and regulations. If you are unableto comply with U.S. and local laws, return this product immediately.
A summary of U.S. laws governing Cisco cryptographic products may be found at:If you require further assistance please contact us by sending email tocisco WS-C2960XR-48FPD-I (APM86XXX) processor (revision J0) with 524288K bytes of memory.Processor board ID FDO1951I17BLast reset from power-on1 Virtual Ethernet interface1 FastEthernet interface50 Gigabit Ethernet interfaces4 Ten Gigabit Ethernet interfacesThe password-recovery mechanism is enabled.
512K bytes of flash-simulated non-volatile configuration memory.Base ethernet MAC Address : 0C:11:67:6C:98:00Motherboard assembly number : 73-15626-04Power supply part number : 341-0533-02Motherboard serial number : FDO19511606Power supply serial number : DCB1949C49JModel revision number : J0Motherboard revision number : A0Model number : WS-C2960XR-48FPD-IDaughterboard assembly number : 73-14200-03Daughterboard serial number : FDO195200YTSystem serial number : FDO1951I17BTop Assembly Part Number : 68-5044-04Top Assembly Revision Number : A0Version ID : V04CLEI Code Number : CMMKJ10ARCDaughterboard revision number : A0Hardware Board Revision Number : 0x06Switch Ports Model SW Version SW Image ------ ----- ----- ---------- ---------- * 1 54 WS-C2960XR-48FPD-I 15.2(7)E2 C2960X-UNIVERSALK9-M Configuration register is 0xF
Switch#show inventoryNAME: "1", DESCR: "WS-C2960XR-48FPD-I"PID: WS-C2960XR-48FPD-I, VID: V04 , SN: FDO1951I17B
NAME: "Switch 1 - Power Supply 2", DESCR: "FRU Power Supply"PID: PWR-C2-1025WAC , VID: V02L , SN: LIT193109UM
NAME: "GigabitEthernet1/0/49", DESCR: "10/100/1000BaseTX SFP"PID: GLC-T , VID: , SN: MTC145000UT
NAME: "GigabitEthernet1/0/50", DESCR: "10/100/1000BaseTX SFP"PID: GLC-T , VID: , SN: AGM171225S7 Switch#dir flash:Directory of flash:/
2 -rwx 26665984 Oct 5 2020 21:28:55 +00:00 c2960x-universalk9-mz.152-7.E2.bin 3 drwx 512 Dec 13 1931 21:54:40 +00:00 c2960x-universalk9-mz.152-2.E3 668 drwx 512 Dec 13 1931 21:54:40 +00:00 dc_profile_dir
122185728 bytes total (68202496 bytes free)Switch#show env allFAN PS-1 is NOT PRESENTFAN PS-2 is OKSYSTEM TEMPERATURE is OKSystem Temperature Value: 0 Degree CelsiusSystem Temperature State: GREENYellow Threshold : 67 Degree CelsiusRed Threshold : 75 Degree CelsiusPOWER SUPPLY 1A TEMPERATURE: Not PresentPOWER SUPPLY 1B TEMPERATURE: OKSW PID Serial# Status Sys Pwr PoE Pwr Watts-- ------------------ ---------- --------------- ------- ------- -----1A Not Present 1B PWR-C2-1025WAC LIT193109UM OK Good Good 250/775Switch#show postStored system POST messages:
Switch 1---------
POST: MA BIST : BeginPOST: MA BIST : End, Status Passed
POST: TCAM BIST : BeginPOST: TCAM BIST : End, Status Passed
POST: Inline Power Controller Tests : BeginPOST: inline power post failed for port 0POST: inline power post failed for port 1POST: inline power post failed for port 2POST: inline power post failed for port 3POST: inline power post failed for port 4POST: inline power post failed for port 5POST: inline power post failed for port 6POST: inline power post failed for port 7POST: inline power post failed for port 8POST: inline power post failed for port 9POST: inline power post failed for port 10POST: inline power post failed for port 11POST: inline power post failed for port 12POST: inline power post failed for port 13POST: inline power post failed for port 14POST: inline power post failed for port 15POST: inline power post failed for port 16POST: inline power post failed for port 17POST: inline power post failed for port 18POST: inline power post failed for port 19POST: inline power post failed for port 20POST: inline power post failed for port 21POST: inline power post failed for port 22POST: inline power post failed for port 23POST: inline power post failed for port 24POST: inline power post failed for port 25POST: inline power post failed for port 26POST: inline power post failed for port 27POST: inline power post failed for port 28POST: inline power post failed for port 29POST: inline power post failed for port 30POST: inline power post failed for port 31POST: inline power post failed for port 32POST: inline power post failed for port 33POST: inline power post failed for port 34POST: inline power post failed for port 35POST: inline power post failed for port 36POST: inline power post failed for port 37POST: inline power post failed for port 38POST: inline power post failed for port 39POST: inline power post failed for port 40POST: inline power post failed for port 41POST: inline power post failed for port 42POST: inline power post failed for port 43POST: inline power post failed for port 44POST: inline power post failed for port 45POST: inline power post failed for port 46POST: inline power post failed for port 47POST: Inline Power Controller Tests : End, Status Failed
POST: Thermal Tests : BeginPOST: Thermal Tests : End, Status Passed
POST: PortASIC Stack Port Loopback Tests : BeginPOST: PortASIC Stack Port Loopback Tests : End, Status Passed
POST: PortASIC Port Loopback Tests : BeginPOST: PortASIC Port Loopback Tests : End, Status Passed
POST: EMAC Loopback Tests : BeginPOST: EMAC Loopback Tests : MAC Loopback PassedPOST: EMAC Loopback Tests : PHY Loopback PassedPOST: EMAC Loopback Tests : End, Status Passed
