INCLUDING C3KX-NM-1G MODULE
INCLUDING 1x C3KX-PWR-350WAC POWER SUPPLY
INCLUDING RACK EARS
EXCLUDING NETWORK CABLES
See photos for actual item!
Price is for 1 item.

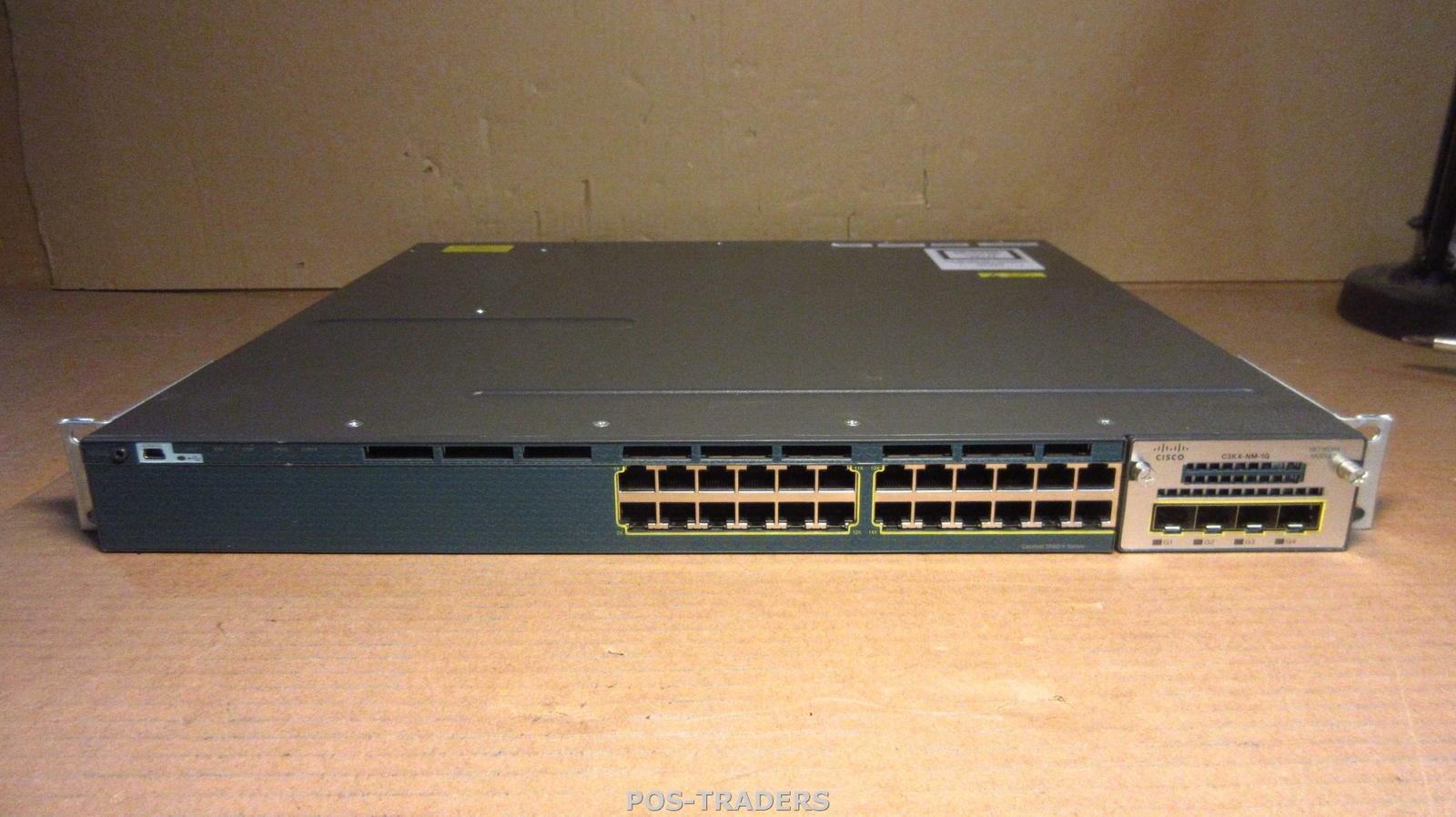

WS-C3560X-24T-L (USED) Specification
WS-C3560X-24T-L data sheet Manufacturer Cisco Systems, Inc Manufacturer Part Number WS-C3560X-24T-L Product Type Switch - 24 ports - Managed Form Factor Rack mountable - 1U Switch Ports 24 x 10/100/1000 Ethernet Ports Ethernet Ports Remote Management Protocol SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, FTP, TFTP, SSH Authentication Method Kerberos, Secure Shell (SSH), RADIUS, TACACS+ Features Hot swap module replacement, Layer 2 switching, dynamic IP address assignment , DHCP support, auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, traffic shaping, Broadcast Storm Control, High Availability, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+) Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s DRAM Memory 256 MB Flash Memory 64 MB Flash Status Indicators Port status, link activity, port transmission speed, port duplex mode, power, system Connectivity Slots Interfaces 24 x 10Base-T/100Base-TX/1000Base-T - RJ-45
USB : 1 x 4 PIN USB Type A
USB : 1 x mini-USB Type B
1 x RS-232 - RJ-45 - management
1 x 10Base-T/100Base-TX - RJ-45 - management Expansion Slot(s) 1 (total) / 1 (free) x Expansion Slot Power Supply Power Device Power supply - redundant - plug-in module Installed Qty 1 (installed) / 2 (max) Power Redundancy Optional Power Redundancy Scheme 1+1 (with optional power supply) Voltage Required AC 120/230 V ( 50/60 Hz ) Features Redundant Power System (RPS) connector Dimensions / Weight / Miscellaneous Width 44.5 cm Depth 46 cm Height 4.5 cm Weight 7 kg
Comes as shown on picture, if something is not on the picture it's not included unless stated otherwise
