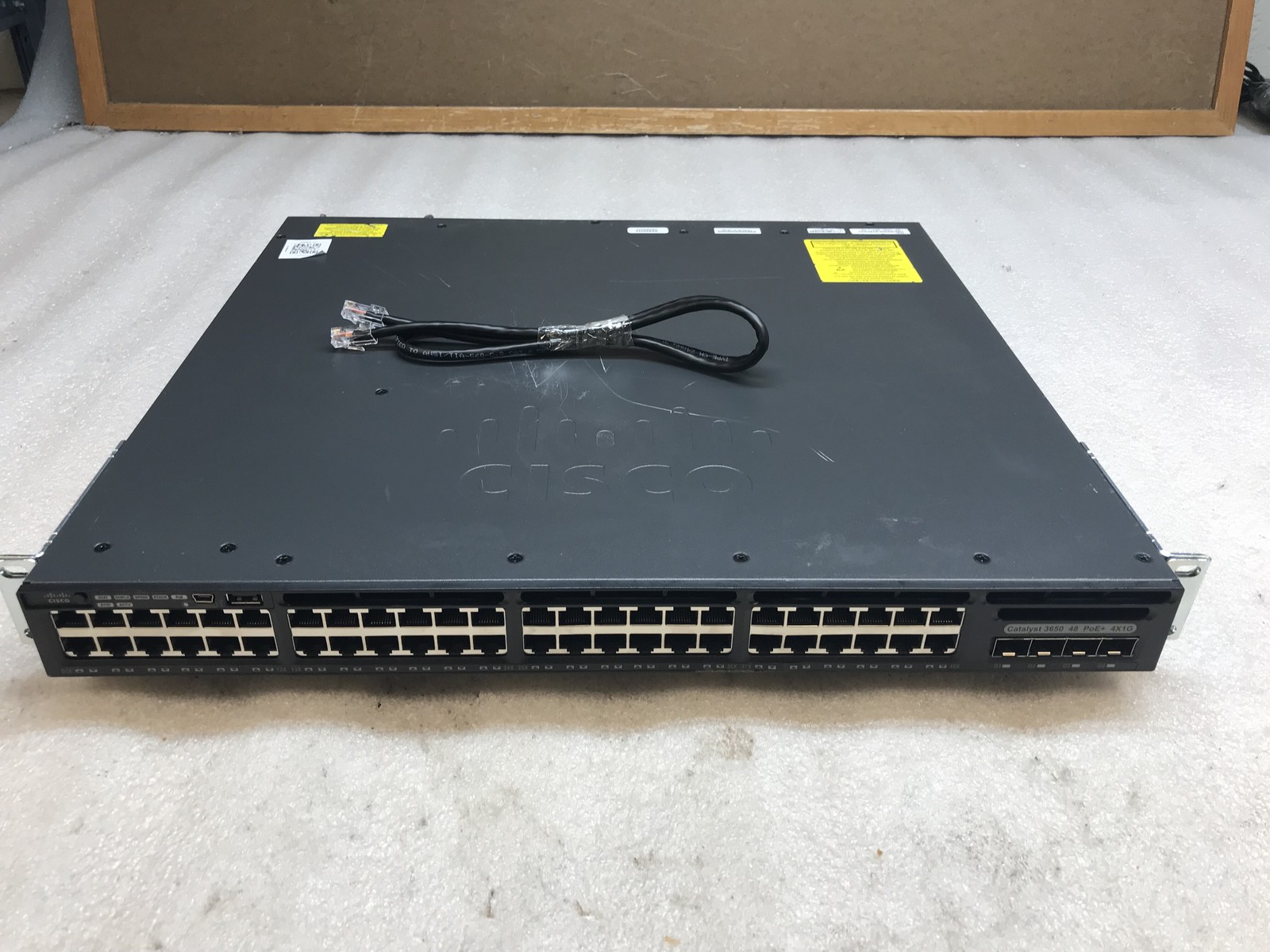

Listing Grid template example Product Photo Description Cisco WS-C3650-48FS-L V05 48-Port Gigabit PoE+ Switch 4x SFP LAN Base 640W Cisco WS-C3650-48FS-L V05 48-Port Gigabit PoE+ Switch 4x SFP LAN Base 640W
The Cisco Catalyst WS-C3650-48FS-L V05 is a managed enterprise network switch featuring 48 Gigabit Ethernet PoE+ ports, four 1Gb SFP uplink ports, Cisco IOS-XE software, and StackWise support. This unit is equipped with a PWR-C2-640WAC V02 power supply, providing up to approximately 390W of available PoE power.
The switch has been accessed through the console and verified to boot successfully. Licensing has also been checked and confirmed as permanent LAN Base.
Specifications
- Model: WS-C3650-48FS-L
- Hardware Version: V05
- 48 x 10/100/1000 Gigabit Ethernet ports
- 48 x PoE/PoE+ capable ports
- 4 x 1Gb SFP uplink ports
- Managed enterprise switch
- Cisco Catalyst 3650 Series
- Cisco IOS-XE
- IOS-XE Version: 16.3.5b Denali
- Software Image: CAT3K_CAA-UNIVERSALK9
- Install Mode
- Permanent LAN Base license
- StackWise-160 capable
- IPv4 and IPv6 support
- VLAN, QoS, ACL, STP, EtherChannel, and other enterprise Layer 2 management features
- Limited Layer 3 functionality associated with the LAN Base feature set
Power / PoE
- Installed PSU: Cisco PWR-C2-640WAC V02
- 640W AC power supply
- Approximately 390W PoE power budget with the installed PSU
- Supports IEEE 802.3af PoE and 802.3at PoE+
Note: The WS-C3650-48FS platform can support a higher PoE budget when configured with a higher-output power supply. This unit includes the 640W PSU and is therefore listed with a 390W PoE budget.
Licensing
- LAN Base: Permanent / Lifetime
- LAN Base license is active and in use
- LAN Base selected for next reboot
- IP Base and IP Services are not activated
Key Features
- 48 Gigabit PoE+ ports for IP phones, wireless access points, cameras, and other powered network devices
- Four SFP uplink ports for fiber or compatible copper SFP connectivity
- Cisco IOS-XE command-line and network management capabilities
- VLAN and traffic segmentation support
- Quality of Service features for traffic prioritization
- Access Control Lists and enterprise security features
- EtherChannel/link aggregation support
- StackWise capability for supported Catalyst 3650 stacking configurations
- Suitable for business, lab, enterprise, surveillance, VoIP, and network infrastructure condition
- Unit has scratches, scuffs, and cosmetic blemishes from previous installation and use
- Please review photos for exact cosmetic WS-C3650-48FS-L V05 Switch
- Cisco PWR-C2-640WAC V02 Power Supply
- Rack Ears
Not Included
- SFP modules
- Ethernet/network cables
- Console cable
- StackWise module or stacking cables
- User manuals or installation guides
- Power Cable
Specifications Functional Condition:
F3 - Key Functions Working
Equipment in this category has undergone testing to confirm that its core functionalities are operational. Essential functions that a typical user would expect are verified working. Secondary functions or software may not be present or configured. Units may be missing components or parts that are not essential to key functions.
Cosmetic Condition:
C4 - Used Good
Good overall used condition. Some light scratches or scuffs. No dents, dings or cracks.
Data Sanitization:
S3 - Data Clear
Device has been sanitized by one of the following methods: Factory Reset, NIST 800-88 Clear, or DOD 5220.22
Port Count
48 Port Speed
Gigabit Management Type
Managed Poe Support
PoE+ Poe Budget
390 Stackable
NO Layer
Layer 3 Sfp Ports
4 Function Tests Powers On
Passed Management Interface Access
Passed Port Connectivity
Passed PoE Output
Passed Link Lights
Passed Factory Reset
Passed Shipping
