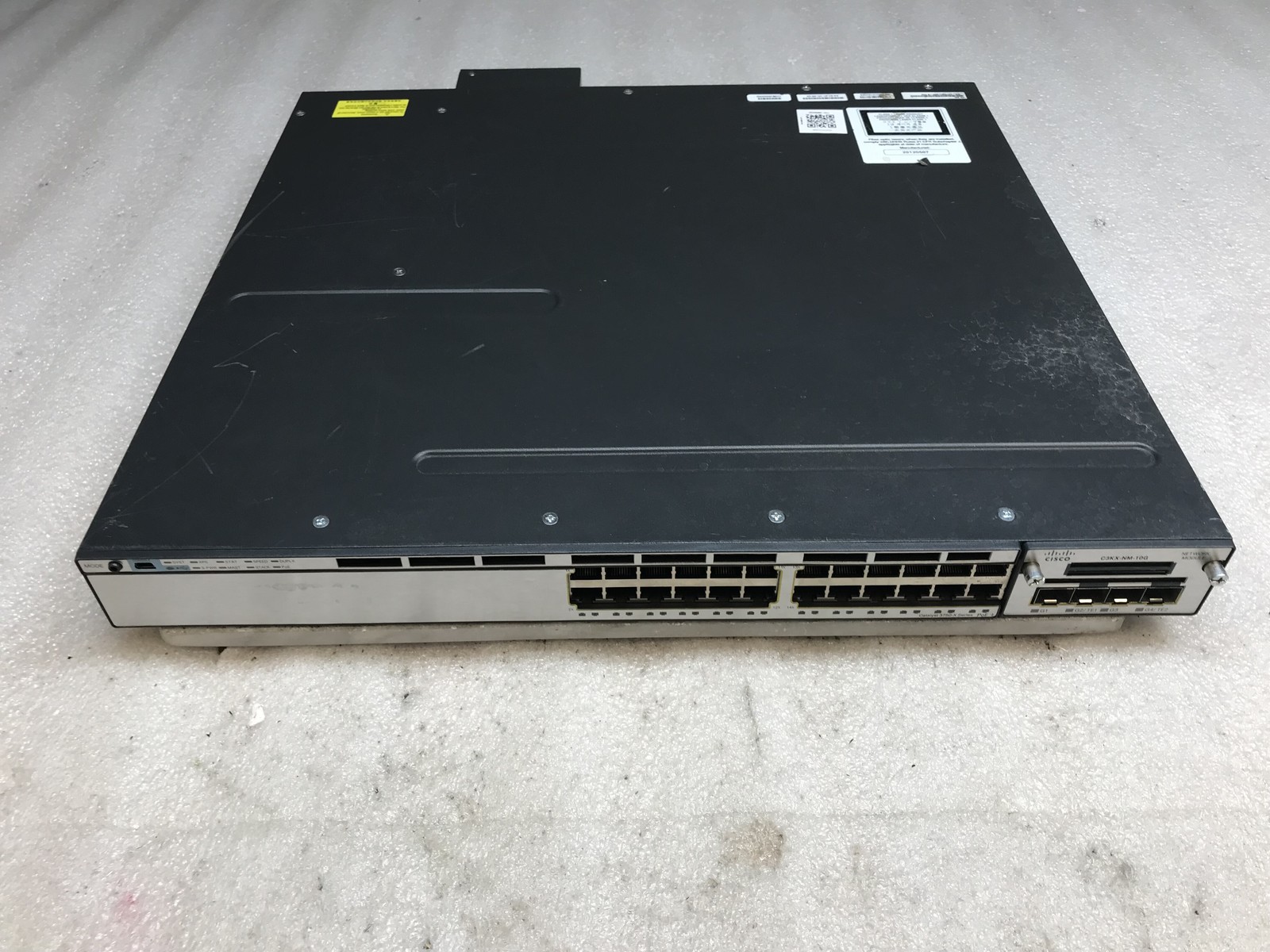

Listing Grid template example Product Photo Description Cisco WS-C3750X-24P-S V02 24-Port PoE+ 720W C3KX-NM-10G IP Base Tested Cisco WS-C3750X-24P-S V02 24-Port PoE+ 720W C3KX-NM-10G IP Base Tested
The Cisco Catalyst WS-C3750X-24P-S V02 is a managed Layer 3 enterprise switch designed for reliable Gigabit Ethernet connectivity, Power over Ethernet Plus, advanced routing, and scalable network deployments. This unit features 24 Gigabit Ethernet PoE+ ports, a verified 720W available PoE budget, permanent Cisco IP Base licensing, and an installed C3KX-NM-10G uplink module.
Specifications
- Model: WS-C3750X-24P-S
- Version: V02
- 24 x 10/100/1000 Gigabit Ethernet Ports
- IEEE 802.3af / 802.3at PoE and PoE+ Support
- 720W Available PoE Power Budget
- Up to 30W PoE+ per Supported Port
- Managed Layer 3 Switch
- Permanent Cisco IP Base License
- Cisco IOS 15.0(1)SE2
- C3KX-NM-10G V01 Network Module Installed
- 1Gb SFP and 10Gb SFP+ Uplink Capability
- Cisco StackWise Plus Support
- Stackable Design
- Rack-Mountable Form Factor
Key Features
- Gigabit Ethernet connectivity across all 24 primary network ports
- PoE+ support for compatible IP phones, wireless access points, cameras, and other powered devices
- Verified 720W available PoE capacity
- Up to 30W of PoE+ power per supported port
- Layer 3 routing capabilities with permanent Cisco IP Base software
- Installed C3KX-NM-10G module supporting flexible 1Gb SFP and 10Gb SFP+ uplink configurations
- Cisco StackWise Plus technology for combining multiple compatible switches into a single logical stack
- VLAN support for network segmentation
- Advanced Quality of Service (QoS) features
- Security features including 802.1X authentication, ACLs, port security, and DHCP snooping
- Cisco IOS command-line management
Important Notes
- Unit shows scratches, scuffs, and cosmetic blemishes from normal use
- One power supply is installed and reports normal system and PoE power status
- Second power supply bay is empty
- No SFP or SFP+ transceivers are included
- Please review photos for exact cosmetic WS-C3750X-24P-S V02 Switch
- C3KX-NM-10G V01 Network Module
- Ethernet Cable
- PSU 1100 watt
Not Included
- SFP or SFP+ Transceivers
- Second Power Supply
- Console Cable
- User Manual or Documentation
- Power Cable CE15
- Any accessories not specifically listed above
Specifications Functional Condition:
F3 - Key Functions Working
Equipment in this category has undergone testing to confirm that its core functionalities are operational. Essential functions that a typical user would expect are verified working. Secondary functions or software may not be present or configured. Units may be missing components or parts that are not essential to key functions.
Cosmetic Condition:
C4 - Used Good
Good overall used condition. Some light scratches or scuffs. No dents, dings or cracks.
Data Sanitization:
S3 - Data Clear
Device has been sanitized by one of the following methods: Factory Reset, NIST 800-88 Clear, or DOD 5220.22
Port Count
24 Port Speed
Gigabit Management Type
Managed Poe Support
PoE+ Poe Budget
720 Stackable
YES Layer
Layer 3 Sfp Ports
4 Function Tests Powers On
Passed Management Interface Access
Passed Port Connectivity
Passed PoE Output
Passed Link Lights
Passed Factory Reset
Passed Shipping
