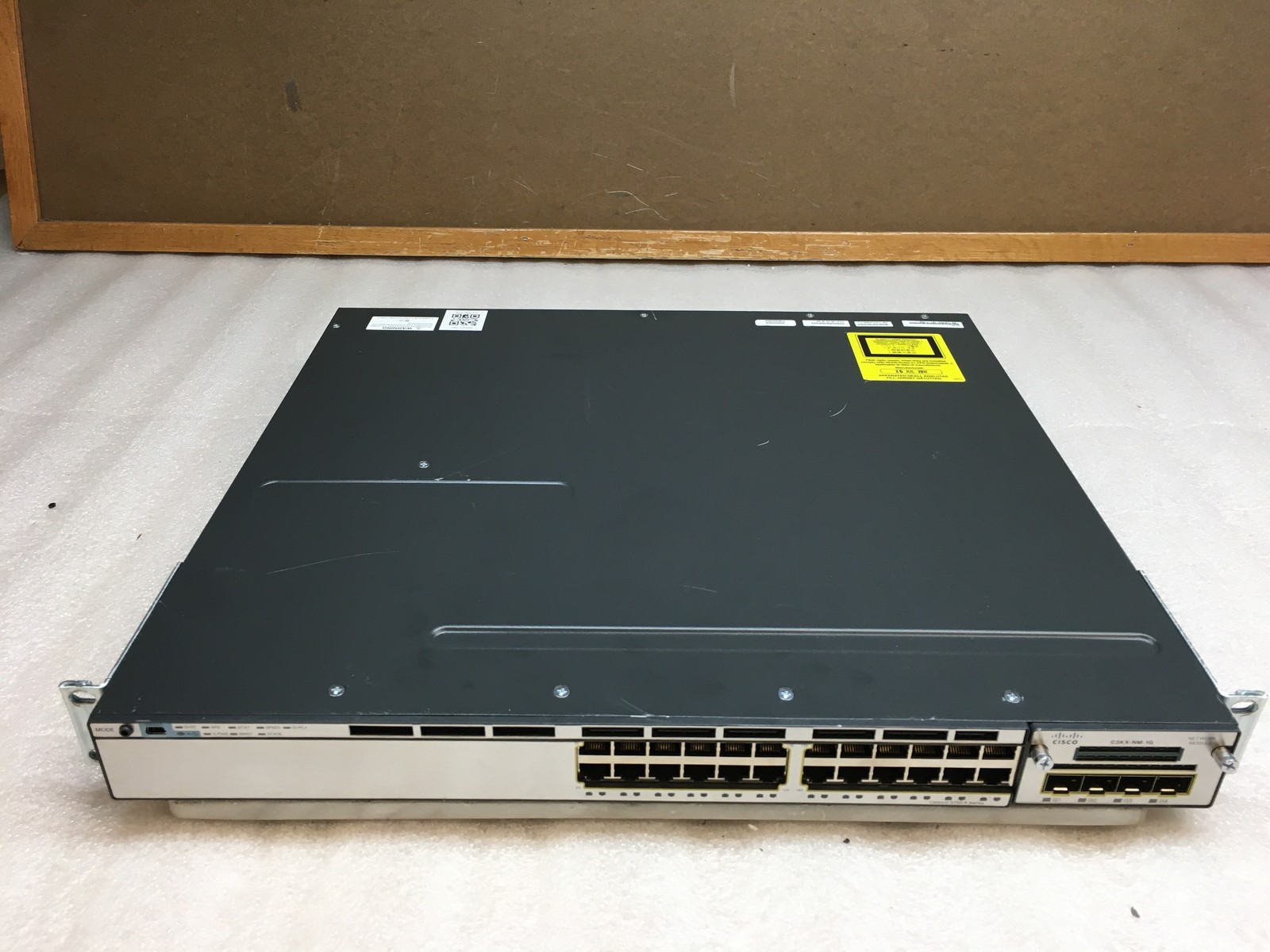

Listing Grid template example Product Photo Description Cisco WS-C3750X-24T-L 24-Port Gigabit Switch w/ 2x C3KX-PWR-350WAC & C3KX-NM-1G Cisco WS-C3750X-24T-L 24-Port Gigabit Switch w/ 2x C3KX-PWR-350WAC & C3KX-NM-1G
The Cisco WS-C3750X-24T-L is a high-performance 24-port Gigabit Ethernet switch designed to deliver reliable and scalable network connectivity. Ideal for enterprise environments, it supports advanced features for enhanced security, multicast routing, and high availability,
making it a solid choice for growing networks.
Device Info
- cisco WS-C3750X-24 (PowerPC405) processor (revision A0) with 262144K bytes of me
- Processor board ID FDO1530R1LJ
- Last reset from power-on
- 1 Virtual Ethernet interface
- 1 FastEthernet interface
- 28 Gigabit Ethernet interfaces
- 2 Ten Gigabit Ethernet interfaces
- The password-recovery mechanism is enabled.
- 512K bytes of flash-simulated non-volatile configuration memory.
- Base ethernet MAC Address: 70:81:05:34:AF:00
- Motherboard assembly number: 73-12530-05
- Motherboard serial number: FDO15302B4E
- Model revision number: A0
- Motherboard revision number: B0
- Model number: WS-C3750X-24T-L
- Daughterboard assembly number: 800-32727-01
- Daughterboard serial number: FDO15310EM1
- System serial number: FDO1530R1LJ
- Top Assembly Part Number: 800-31327-02
- Top Assembly Revision Number: C0
- Version ID: V02
- CLEI Code Number: COMJV00ARB
- Hardware Board Revision Number: 0x03
- Switch Ports ModelSW VersionSW Image
- ------ ----- -------------------------
- *1 register is 0xF
Specifications
- 24 Gigabit Ethernet ports
- StackWise Plus technology supporting stacking of up to 9 switches
- Supports Layer 3 routing features
- Switching capacity: 208 Gbps
- Forwarding rate: up to 77.4 Mpps
- PoE support: Not included (model without PoE)
- Two redundant C3KX-PWR-350WAC power supplies included
- One C3KX-NM-1G network module for additional Gigabit SFP connectivity
- Rack-mountable with included rack ears
- Enhanced security features including IEEE 802.1X and ACLs
Key Features
- StackWise Plus technology allowing high-speed stack interconnect at 32 Gbps
- Advanced Layer 3 features including OSPF, EIGRP, and RIP routing protocols
- Robust Quality of Service (QoS) for improved traffic management
- Support for IPv4 and IPv6 addressing
- Integrated network security with features such as DHCP snooping and Dynamic ARP Inspection
- Energy Efficient Ethernet (EEE) for lower power consumption during low data activity
Included
- Rack Ears
- 2x C3KX-PWR-350WAC Power Supplies
- C3KX-NM-1G Network Module
Not Included
Specifications Functional Condition:
F3 - Key Functions Working
Equipment in this category has undergone testing to confirm that its core functionalities are operational. Essential functions that a typical user would expect are verified working. Secondary functions or software may not be present or configured. Units may be missing components or parts that are not essential to key functions.
Cosmetic Condition:
C4 - Used Good
Good overall used condition. Some light scratches or scuffs. No dents, dings or cracks.
Data Sanitization:
S3 - Data Clear
Device has been sanitized by one of the following methods: Factory Reset, NIST 800-88 Clear, or DOD 5220.22
