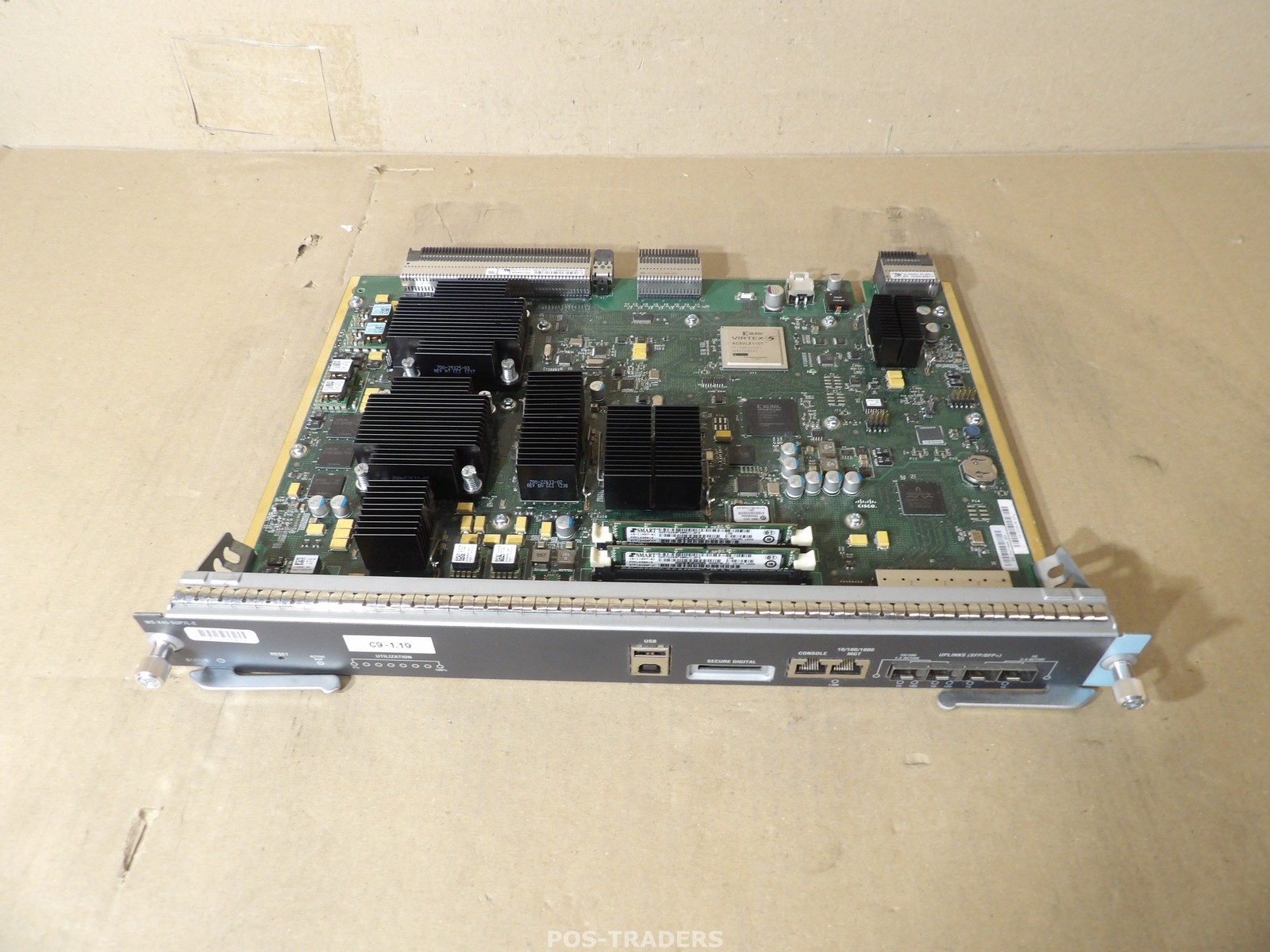

Second-hand Electronic Device ListingCisco WS-X45-SUP7L-E Catalyst Supervisor Engine 2x 1GB RAM - PULLED FROM 4607R+E

General Information

Cisco WS-X45-SUP7L-E Catalyst Supervisor and Condition

Condition: USED

Note: Product will be cleaned before shipping!

Package ContentsIncluded

• Cisco WS-X45-SUP7L-E

Not Notice

This is a used product. It comes as shown in photos, if something is not in the photo, it's not included unless stated otherwise.

The price is for 1 item.

Technical Specifications

• Switching capacity (system-wide): 848 Gbps Router-Switch.com+1

• Per-slot switching capacity: 48 Gbps Router-Switch.com+1

• Throughput:

  • IPv4 forwarding: 250 Mpps (million packets per second) Router-Switch.com+1

  • IPv6 forwarding: 125 Mpps Router-Switch.com

  • L2 bridging: 250 Mpps Routing, VLAN & Table Capacities

  • IPv4 routing entries (hardware-forwarded): 256,000 Router-Switch.com+1

  • IPv6 routing entries: 128,000 Router-Switch.com+1

  • Multicast routes: 16,000 (with IOS XE 3.1.0 SG), or up to 32,000 (with IOS XE 3.2.0 SG or later) Router-Switch.com+1

  • MAC address table entries: 55,000 ALLHDD+1

  • Active VLANs supported: 4,094 ALLHDD+1

  • ARP entries: 47,000 ALLHDD+1

  • Switched Virtual Interfaces (SVIs): 4,094 [link removed by ]

  • Spanning-Tree Protocol (STP) instances: up to 10,000 [link removed by ]

  • SPAN / RSPAN sessions: up to 8 (ingress or egress) ALLHDD+1

  • 🧠 CPU & Memory

  • CPU: Dual-core, 1.5 GHz Router-Switch.com+1

  • CPU queues: 64 Router-Switch.com+1

  • Memory: 2 GB SDRAM (upgradeable to 4 GB) Router-Switch.com+1

  • NVRAM: 1 GB Router-Switch.com+1

  • 🔐 Security / QoS & Additional Features

  • Hardware entries for security & QoS: 128,000 Router-Switch.com+1

  • Entries for NAC (Network Admission Control) & DHCP Snooping: 12,000 Router-Switch.com+1

  • Support for advanced routing / features: includes IPv6 (with unicast & multicast forwarding in hardware), hardware-based IPv6 routing, MLD snooping, Unicast Reverse Path Forwarding (URPFv6) in hardware. [link removed by ]

  • Network standards supported: IEEE 802.1Q (VLAN tagging), 802.1p (QoS prioritization), 802.1s, 802.1w (Spanning Tree variants), 802.1x (port-based access control), 802.3/802.3az, i.e. standard Ethernet (10/100/1000/10 000) & Energy-Efficient Ethernet support. [link removed by ]

  • Ethernet speeds supported: 10, 100, 1000, 10 000 Mbit/s (i.e. 10 GbE on appropriate SFP/SFP+ ports) [link removed by ]

  • 📦 Compatibility & Environmental / Operational Info

  • Compatible with chassis from the Cisco Catalyst 4500-E series (including 4503-E, 4506-E, 4507R-E / 4507R+E, 4510R-E / 4510R+E — with specific slot restrictions depending on chassis model). Router-Switch.com+1

  • Operating temperature: 0 – 40 °C [link removed by ]

  • Storage temperature: –40 – 75 °C [link removed by ]

  • Relative humidity (non-condensing): 10 – 90% [link removed by ]

  • Operating altitude: –60 to 3000 m [link removed by ]

  • Typical power consumption: ~280 W [link removed by ]
