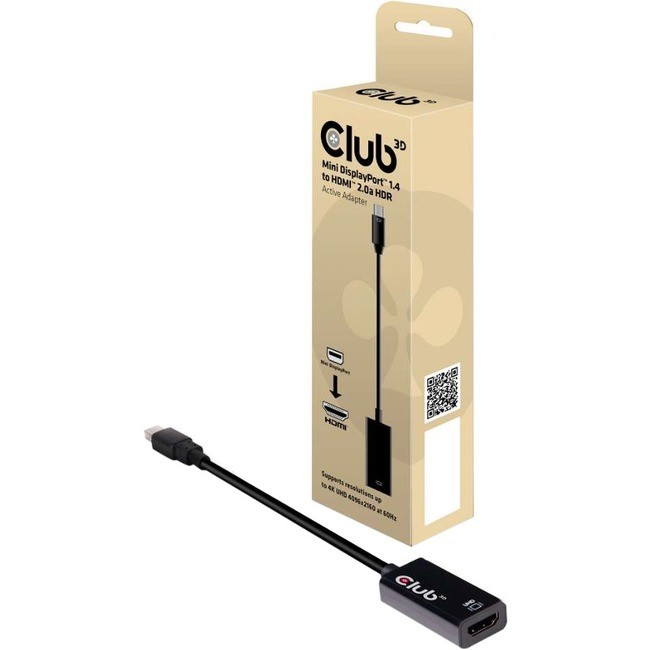

Club 3D Mini DisplayPort 1.4 to HDMI 2.0a HDR Brand: CLUB 3D UPC: 0841615101054 Mfr Part #: CAC1180
General Information
Mini DisplayPort 1.4 to HDMI 2.0a HDR
CAC-1180 - The Club3D CAC-1180 is a Mini DisplayPort™ 1.4 to HDMI™ 2.0a active signal converter. It features support for HDR Video quality for deep color media content playback. The Mini DisplayPort™ receiver supports up to 5,4 Gbps per lane over 4 lanes. The HDMI™ output is fully compliant to HDMI™ specification version 2.0a. The CAC-1180 is downwards compatible to earlier Displayport™ and HDMI™ versions, but this can influence the functionality and/or supported features such as HDR.
Resolution Support
The CAC-1180 supports UHD resolutions up to 4096 x 2160p at 60Hz.
Color Formats
It supports RGB/YCbCr video color formats with a color depth of 16bpc (or 48 bits per pixel) as long as it fits within the Mini DisplayPort™ and HDMI™ link bandwidth. The CAC-1180 also supports pixel encoding conversion from RGB or YCbCr 4:4:4 to YCbCr 4:2:0 and YCbCr 4:2:0 pass-trough function. In addition HDR with deep color up to 12Bpc at 4K 60Hz is supported through the conversion of RGB/YCbCr 4:4:4 over DP link to YCbCr 4:2:0 on the HDMI™ output with a horizontal expansion to CEA timings.
Technical InformationCable Type:HDMI/Mini DisplayPortCable Length:6.61"Connector Type on First End:Mini DisplayPort 1.4 Digital Audio/Video - MaleConnector on First End Details:1 x Mini DisplayPort 1.4 Digital Audio/Video - MaleConnector Type on Second End:HDMI 2.0a Digital Audio/Video - FemaleConnector on Second End Details:1 x HDMI 2.0a Digital Audio/Video - FemaleDevice Supported:Audio/Video DeviceData Transfer Rate:5.4 Gbit/sSupported Resolution:4096 x 2160Features:RepeaterFeatures:Active
Physical CharacteristicsColor Family:BlackProduct Color:BlackWeight (Approximate):0.07 lb
