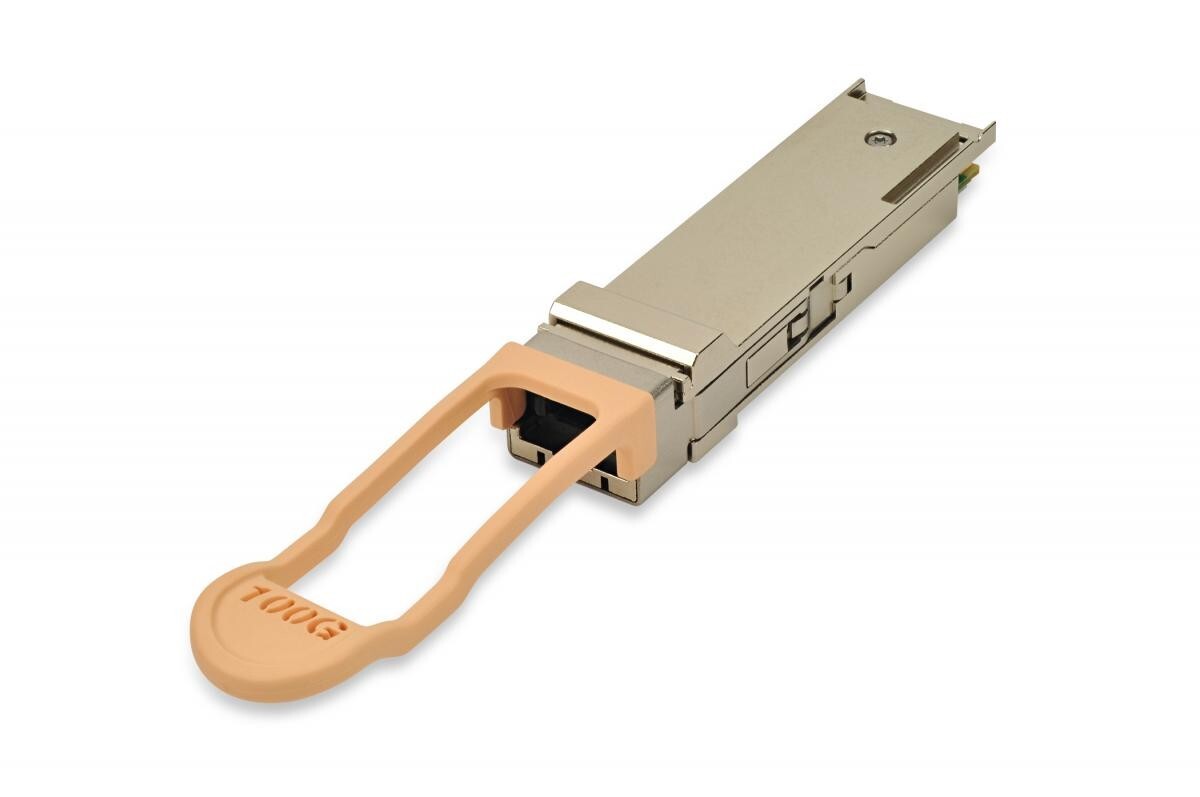

Coherent | Finisar FTLC1155RGPL6 100G CWDM4 LITE QSFP28 TRANSCEIVER
Price: US $99.97
FTLC1155RGPL6100G CWDM4 LITE QSFP28 TRANSCEIVERPRODUCT DETAIL
The FTLC1155RGPL6 QSFP28 Lite reach and limited temperature transceiver modules are engineered for application in 100 Gigabit Ethernet links, capable of spanning up to 500m of single mode fiber. These modules adhere to the QSFP28 MSA standards and are a Lite variant of the CWDM4 MSA (500m reach, temperature range of 15°C to +60°C), and certain sections of IEEE P802.3bm. Digital diagnostic features are accessible through the I2C interface, in accordance with the QSFP28 MSA and Application Notes AN-21535 and AN-21546.
FEATURES & BENEFITS
Supports 103.1Gb/s aggregate bit rate
I2C management interface
Power dissipation
RoHS compliant
Case temperature range of 15°C to 60°C
Single 3.3V power supply
Loss budget of 3.5dB on up to 500m of Single Mode Fiber (SMF) with KR4 FEC
4x25Gb/s CDWM transmitter
4x25G retimed electrical interface
Duplex LC receptacles
TECHNICAL SPECIFICATIONSConnectorLCData Rate (max)103.1 Gb/sDiagnosticsDigitalDistance500 mForm FactorQSFP28High End Case Temperature (°C)60Low End Case Temperature (°C)15Protocol100G Ethernet CompliantReceiverPINTransmitterCWDM DFB LaserVoltage Supply3.3Wavelength1310nm Band
