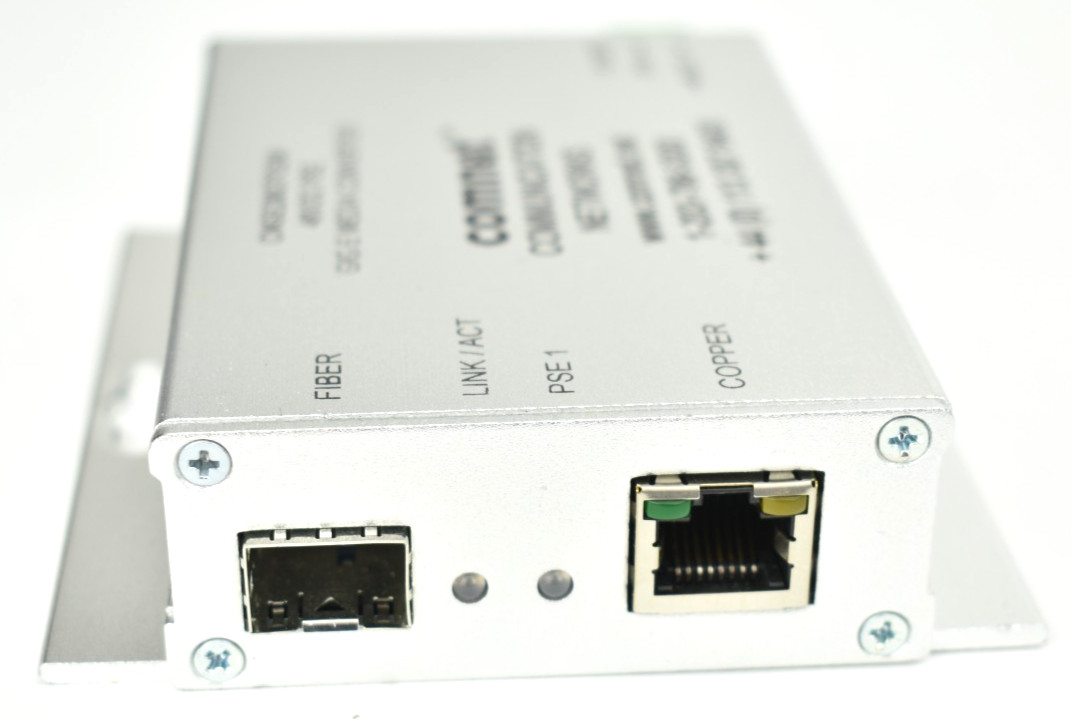

ComNet CNGE2MCPOEM – 2 Port 10/100/1000 Mbps Ethernet Media Converter with High Power PoE

The CNGE2MCPOEM is a two-port gigabit Ethernet media converter that transmits and receives a single channel of Ethernet data over optical fiber via a user-selectable SFP. What separates it from an ordinary copper-to-fiber converter is that it also acts as power sourcing equipment: it supports IEEE 802.3at Class 1–4 Power over Ethernet with up to 30 watts to the remote powered device. That lets a single fiber run plus this unit deliver both the network link and the operating power to a device such as a PTZ camera or a wireless access point at the far end, with no local mains at the pole or cabinet.

It is environmentally hardened for out-of-plant service, designed to meet the full environmental requirements of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment, with voltage transient protection on all power and signal lines. The electrical interface auto-negotiates 10, 100 or 1000 Mbps with no adjustments and the optical interface runs at 1000 Mbps full duplex. No in-field optical adjustments are required, and because the fiber side is SFP-based, the same unit covers multimode or single mode and distances up to 120 km depending on the SFP fitted.

Confirmed Specifications

• Manufacturer: ComNet (Communication Networks)
• Model: CNGE2MCPOEM
• Product Type: 2 port Ethernet media converter with Power over Ethernet (PSE)
• Data Interface: Ethernet
• Data Rate: 10/100/1000 Mbps, IEEE 802.3 BASE-T/TX electrical port — auto-negotiation, full or half duplex
• 1000 BASE-FX optical port — 1000 Mbps full duplex

Power over Ethernet: IEEE 802.3at Class 1–4, power sourcing equipment (PSE), up to 30 W to the remote device

PoE Pin Assignment: RJ45 port #1, end-point — positive (VCC+) pins 1, 2; negative (VCC-) pins 3, 6

Automatic MDI/MDI-X crossover

Optical Distance: Up to 120 km with optional SFPs

Fiber: SFP dependent — requires sold-separately interchangeable SFP modules for fiber type, distance and Terminal block

Electrical: RJ45

Power Input (surface mount): 48 VDC @ 1 A

LED Indicators: Optical link/data activity, power, PSE

Current Protection: Automatic resettable solid-state current limiters

Circuit Board: Meets IPC standard

Size (L x W x H): 4.1 x 3.7 x 1.1 in (10.4 x 9.4 x 2.8 cm)

Shipping Weight: < 2 lbs / 0.9 kg

MTBF: > 100,000 hours

Operating Temperature: –40°C to +75°C

Storage Temperature: –40°C to +85°C

Relative Humidity: 0% to 95% (non-condensing)

Environmental Compliance: NEMA TS-1/TS-2 and Caltrans Specification for Traffic Signal Control Equipment

Laser Safety: Complies with FDA Performance Standard for Laser Products, Title 21 CFR Subchapter J

Warranty: Lifetime warranty (manufacturer)

Design Features

• Environmentally hardened to operate in extreme temperatures
• Voltage transient protection on all power and signal input/output lines
• No in-field optical adjustments required
• Interchangeable SFP allows one unit to cover multimode or single mode fiber, different distances and connector types
• LED indicators for confirming equipment operating status

Typical Applications

• 10/100/1000 Mbps Ethernet media conversion
• Powering and linking remote IP cameras, PTZ cameras and wireless access points over fiber
• Intelligent transportation systems and traffic signal cabinets
• High speed computer links
• Fiber backbone extension into outdoor or unconditioned enclosures
• Perimeter security and out-of-plant surveillance networks
