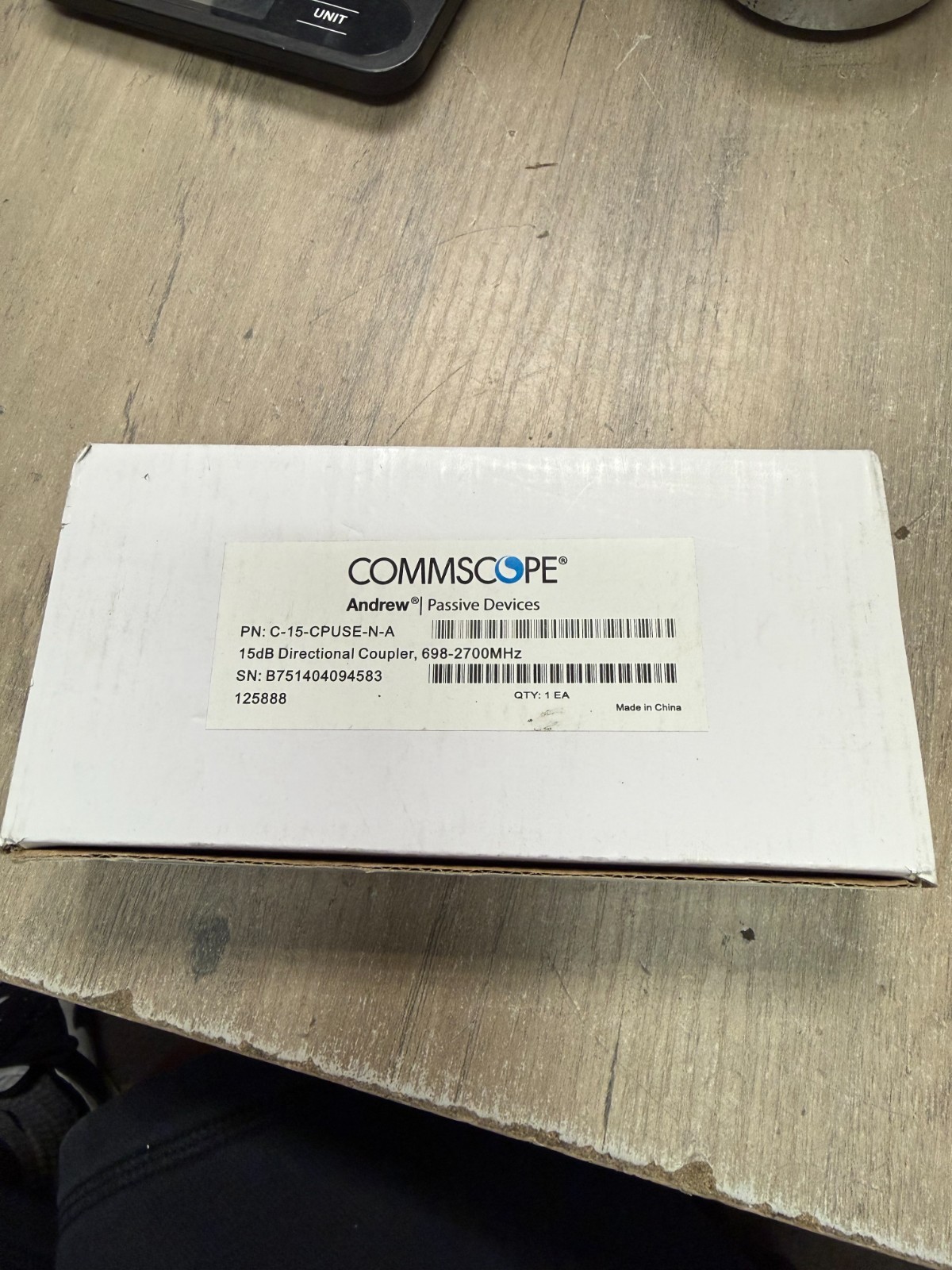

CommScope Andrew C-15-CPUSE-N-A Directional Coupler 15db Operating Band NEW
Price: US $22.49
CommScope Andrew C-15-CPUSE-N-A Directional Coupler 15db Operating Band NEW BRAND NEW
Key specifications
Model: C-15-CPUSE-N-A
Type: Directional coupler
Coupling: 15 dB
Frequency range: 698–2700 MHz
Impedance: 50 Ω
Connectors: N-type female
Insertion loss: Approximately 0.4 dB
Isolation: 35 dB
VSWR: 1.2:1
Maximum average power: 200 W
Peak power: 1 kW
Return loss: ≥20.8 dB
3rd-order PIM: −140 dBc (two +43 dBm carriers)
Environmental rating: IP65, suitable for indoor and outdoor use
Operating temperature: −25 °C to +85 °C
A 15 dB coupler samples a relatively small portion of the RF signal (15 dB below the main line) while allowing nearly all of the power to continue through the main transmission path with only about 0.4 dB of insertion loss. This makes it suitable for monitoring, signal distribution, and feeding remote antennas in DAS installations.
