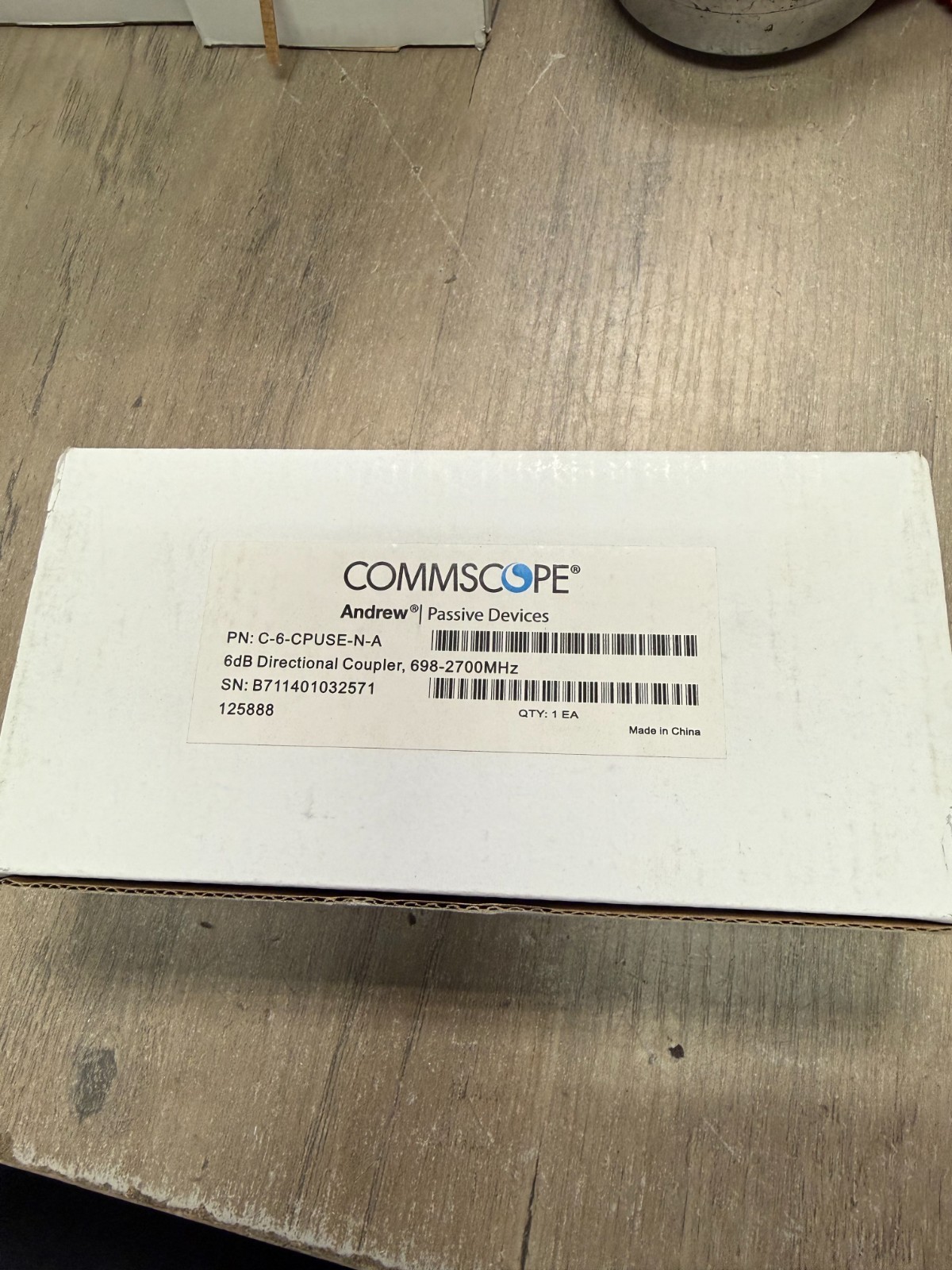

CommScope Andrew C-6-CPUSE-N-A Directional Coupler 6db Operating Band NEW
Price: US $29.89
CommScope Andrew C-6-CPUSE-N-A Directional Coupler 6db Operating Band BRAND NEW
The CommScope / Andrew C-6-CPUSE-N-A is a 6 dB low-PIM air dielectric directional coupler used in Distributed Antenna Systems (DAS), cellular base stations, and other RF signal distribution networks.
Key specifications
Model: C-6-CPUSE-N-A
Type: Directional coupler
Coupling: 6 dB
Operating frequency: 698–2700 MHz
Impedance: 50 Ω
Connectors: N-type female
Insertion loss: 1.5 dB
Isolation: 26 dB
VSWR: 1.2:1
Maximum average power: 200 W
Peak power: 1 kW
Reflected power: 40 W
Return loss: ≥20.8 dB
3rd-order PIM: −140 dBc (two +43 dBm carriers)
Environmental rating: IP65, suitable for indoor and outdoor installations
Operating temperature: −25 °C to +85 °C
A 6 dB coupler taps off approximately 25% of the RF power to the coupled port while allowing the remaining signal to continue through the main line. This coupling value is commonly used in DAS designs where a relatively strong branch signal is required.
