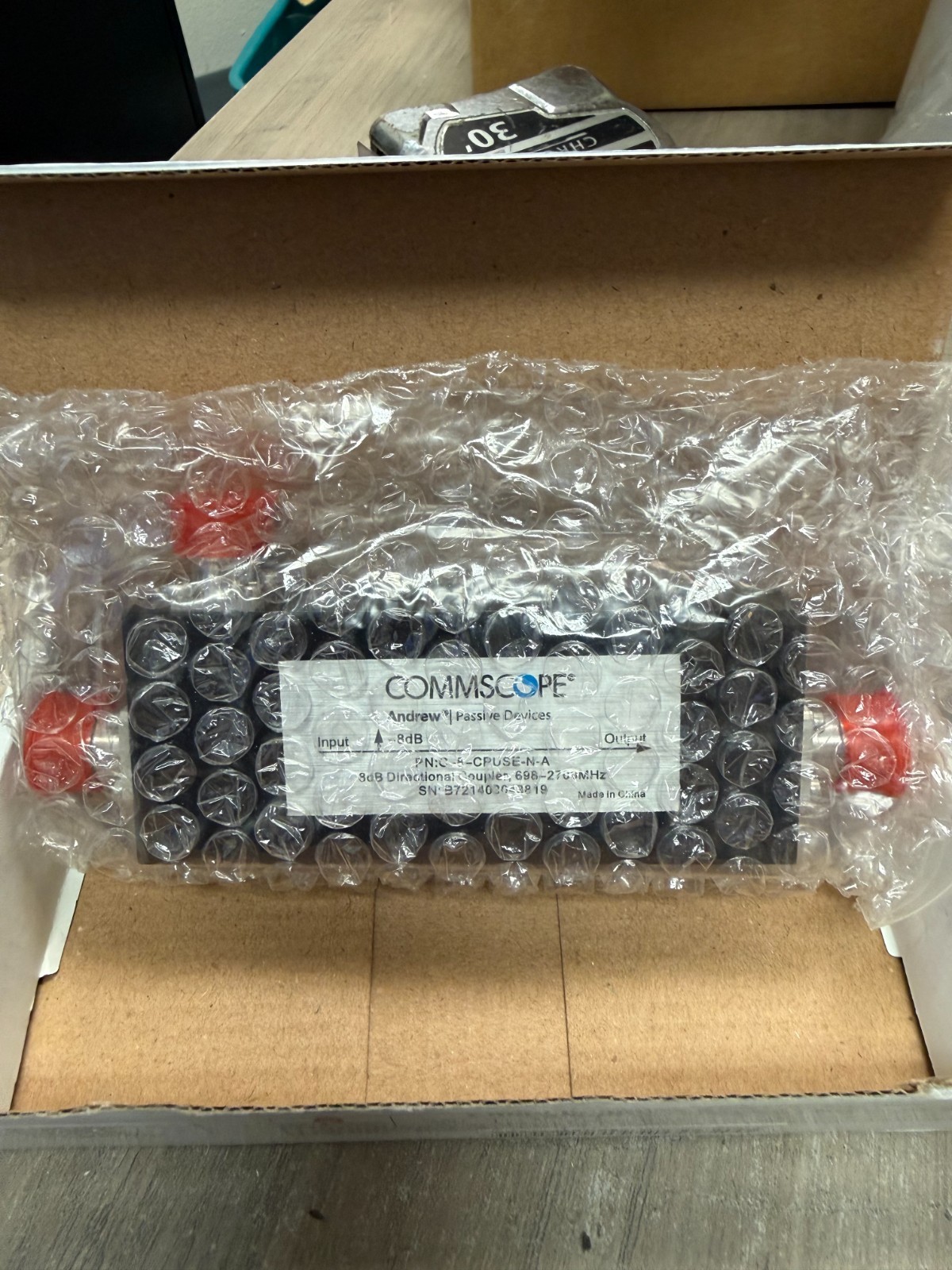

CommScope Andrew C-8-CPUSE-N-A Directional Coupler 8db Operating Band NEW
Price: US $29.89
CommScope Andrew C-8-CPUSE-N-A Directional Coupler 8db Operating Band NEW BRAND NEW Key specifications
Type: Air dielectric directional coupler
Coupling: 8 dB
Operating frequency: 555–2700 MHz
Impedance: 50 Ω
Insertion loss (through path): Approximately 1.1 dB
Isolation: 28 dB
VSWR: 1.2:1
Maximum average power: 300 W
Peak power: 1 kW
Return loss: ≥20.8 dB
Operating temperature: −35 °C to +85 °C
Ingress protection: IP65 (indoor/outdoor use)
Applications
This coupler is commonly used in:
Cellular DAS systems
Public safety radio networks
LTE and 5G deployments
RF signal monitoring and distribution
Indoor coverage systems for stadiums, airports, hospitals, and office buildings
An 8 dB coupling value means about 8 dB below the input power is sampled at the coupled port, while most of the RF power continues through the main line with only about 1.1 dB of insertion loss.
