Commodore A2300 NTSC Genlock
Original Commodore A2300 internal NTSC Genlock for the Amiga 2000 video slot.
The A2300 allows Amiga graphics to be synchronized and overlaid onto a live composite video source, making it one of Commodore's classic desktop video accessories. It provides composite video input/output together with the Amiga's RGB monitor connection and includes a three-position output selector switch.Amiga Resource

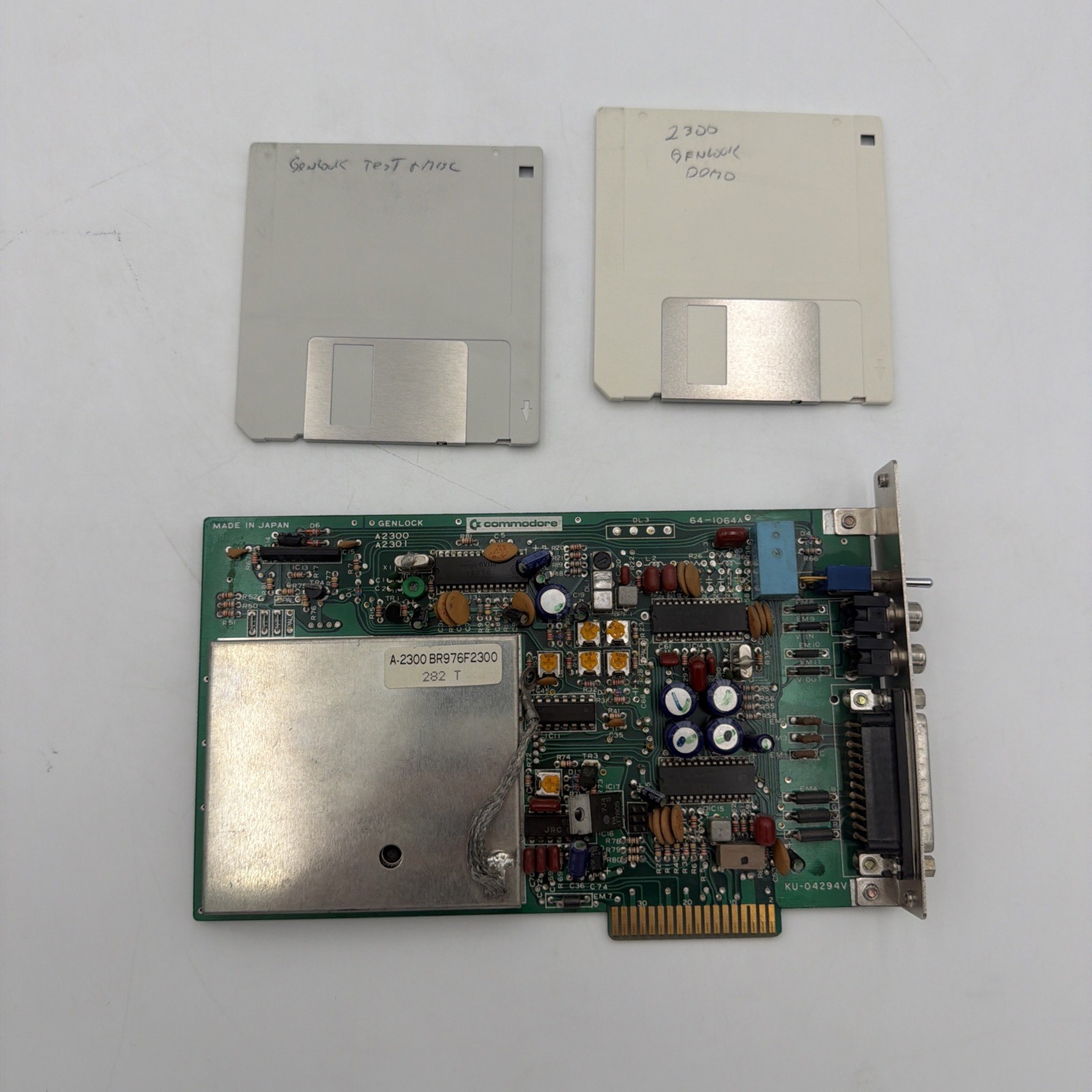

Included
- Commodore A2300 NTSC Genlock
- Handwritten "A2300 Genlock Demo" floppy
- Handwritten "Genlock Test (NTSC)" floppy
Only the items shown are included.
Testing Performed
Installed into an Amiga 2000.
Verified:
- Card installs correctly
- Hardware recognized by the Amiga
Not Tested:
- Composite video input
- Composite video output
- Genlock overlay
- Chroma key functions
- External video synchronization
- Demo/Test floppy disks
Testing was limited because a complete NTSC video production setup was not available.
Cosmetic Condition
- Original Commodore board
- Edge connector is clean
- Components appear original
- Metal RF shield present
- Rear connectors are straight
- Overall very good vintage condition
Please review all photos carefully.
Item Specifics
Brand: Commodore
Model: A2300
Type: NTSC Genlock
Compatible Computer: Commodore Amiga 2000
Interface: Amiga Video Slot
Video Standard: NTSC
Video Connections:
- Composite Video In
- Composite Video Out
- 23-pin Amiga RGB Monitor Port
Includes Software: Handwritten demo/test disks only (untested)
Made in Japan
Vintage: Yes
