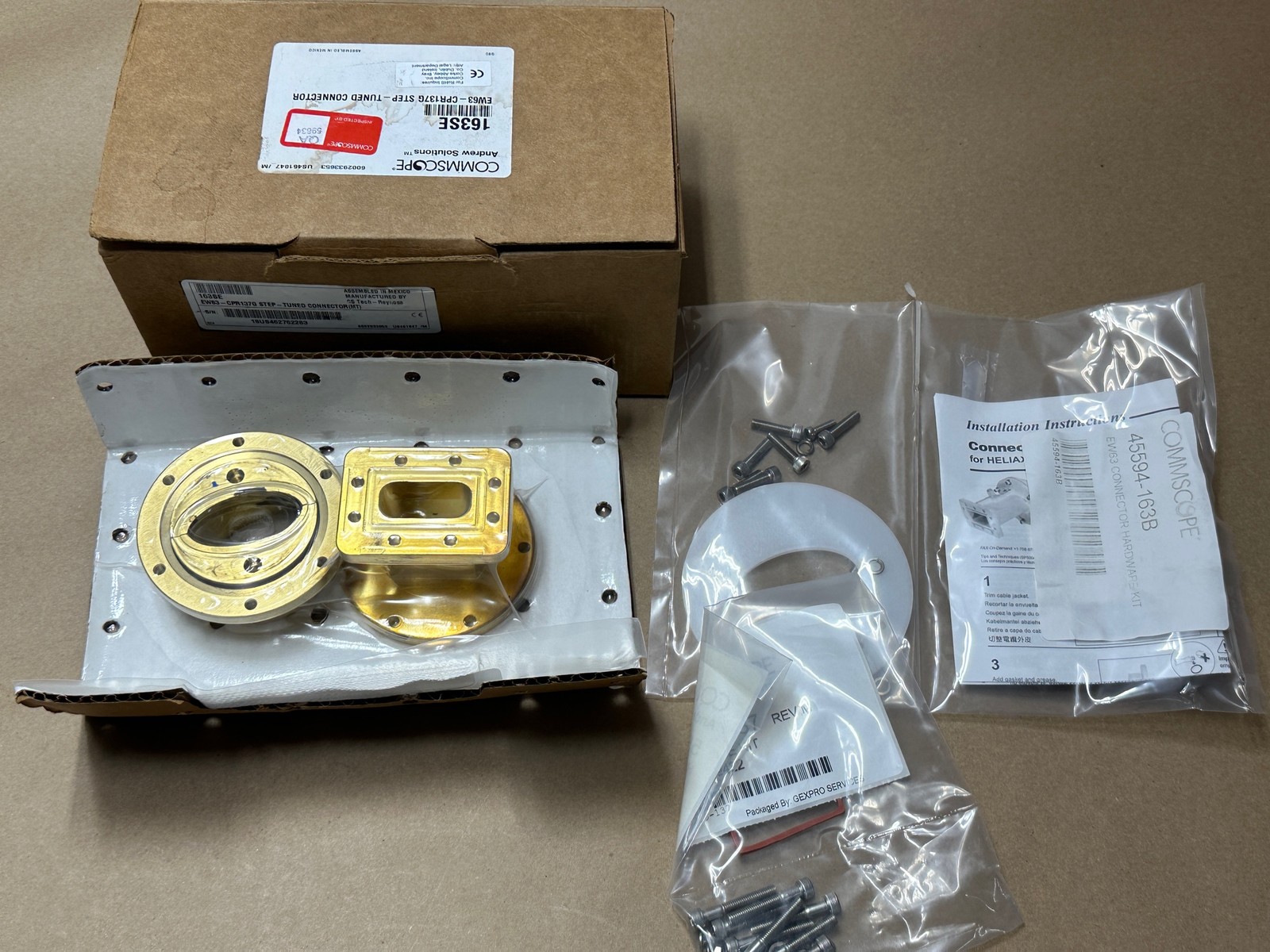

Commscope 163SE Fixed Tuned Connector CPR137G for Elliptical Waveguide 63 EW63 For Sale
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
Width 85.852 mm | 3.38 in Length 85.344 mm | 3.36 in Transition Length 52.832 mm | 2.08 in Waveguide Size WR137 | WG14 | R70 Electrical Specifications
Insertion Loss, typical 0.01 dB Operating Frequency Band 5.725 7.125 GHz Peak Power at Frequency, maximum 102.00 kW @ 6.78 GHz Material Specifications
Material Type Brass Environmental Specifications
Operating Temperature -55 °C to +85 °C (-67 °F to +185 °F) Storage Temperature -55 °C to +85 °C (-67 °F to +185 °F) Packaging and Weights
Weight, net 1.7 kg | 3.748 lb Regulatory Compliance/Certifications
Agency Classification ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system ROHS Compliant CHINA-ROHS Below maximum concentration value REACH-SVHC
If there's something you're not sure about or have a question about anything, just send us a message by clicking "Ask a question" below the listing. Free Shipping is only for the inner 48 states (Large Freight Shipments Do Not Apply).
