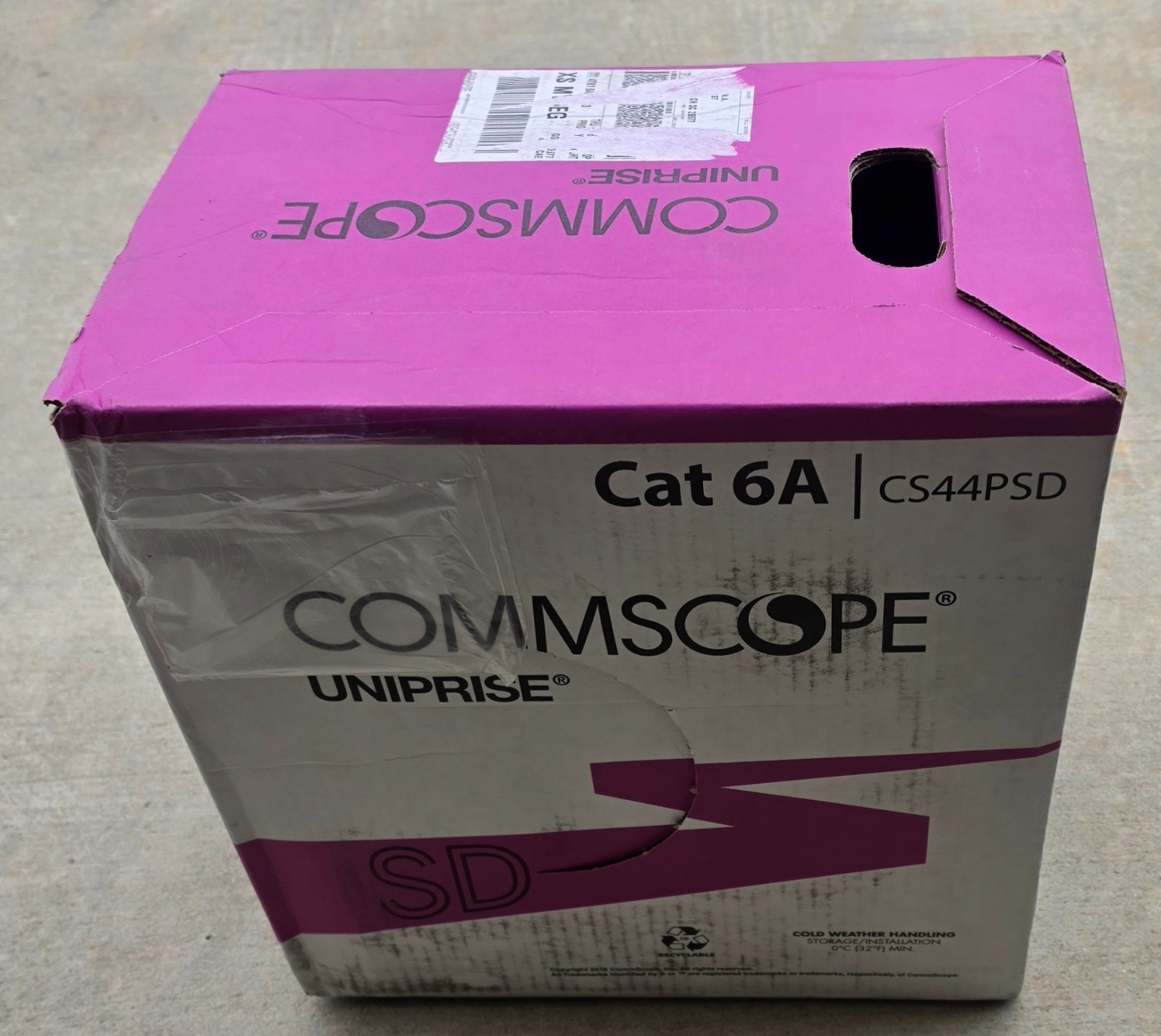

COMMSCOPE
CS44PSD YEL
C6A 4/23 U/UTP CPK 1KFT
CAT6A
U/UTP
YELLOW NETWORK CABLE
BRAND NEW!
1000 FEET
Specifications
Product classification
Regional Availability
North America
Portfolio
Uniprise®
Product Type
Twisted pair cable
General Specifications
Product Number
CS44PSD
ANSI/TIA Category
6A
Cable Component Type
Horizontal
Cable Type
U/UTP (unshielded)
Conductor Type, singles
Solid
Conductors, quantity
8
Jacket Color
Blue
Note
Consult ANSI/TIA-568-C.2 Annex G for length de-rating guidance for cable installation in higher temperature environments
Pairs, quantity
4
Separator Type
Isolator
Transmission Standards
ANSI/TIA-568.2-D
Dimensions
Cable Length
304.8 m | 1000 ft
Diameter Over Insulated Conductor
1.115 mm | 0.0439 in
Diameter Over Jacket, nominal
6.325 mm | 0.249 in
Jacket Thickness
0.406 mm | 0.016 in
Conductor Gauge, singles
23 AWG
Cross Section Drawing
Click on image to enlarge.
Electrical Specifications
dc Resistance Unbalance, maximum
4 %
dc Resistance, maximum
8 ohms/100 m | 2.438 ohms/100 ft
Dielectric Strength, minimum
1500 Vac | 2500 Vdc
LP (Limited Power) Rating
0.7 A
Mutual Capacitance at Frequency
5.6 nF/100 m @ 1 kHz
Nominal Velocity of Propagation (NVP)
70 %
Operating Frequency, maximum
500 MHz
Operating Voltage, maximum
80 V
Remote Powering
Fully complies with the recommendations set forth by IEEE 802.3bt (Type 4) for the safe delivery of power over LAN cable when installed according to ISO/IEC 14763-2, CENELEC EN 50174-1, CENELEC EN 50174-2 or TIA TSB-184-A
Electrical Performance
Click on image to enlarge.
Click on image to enlarge.
Material Specifications
Conductor Material
Bare copper
Insulation Material
FEP
Jacket Material
PVC
Separator Material
FEP
Tape Material
Mechanical Specifications
Pulling Tension, maximum
11.34 kg | 25 lb
Environmental Specifications
Installation temperature
0 °C to +60 °C (+32 °F to +140 °F)
Operating Temperature
-20 °C to +75 °C (-4 °F to +167 °F)
Environmental Space
Plenum
Temperature Rating, UL
105 °C | 221 °F
Flame Test Method
CMP/FT6
Smoke Test Method
CMP/FT6
Packaging and Weights
Cable weight
58.038 kg/km | 39 lb/kft
Packaging Type
CommPak® box
