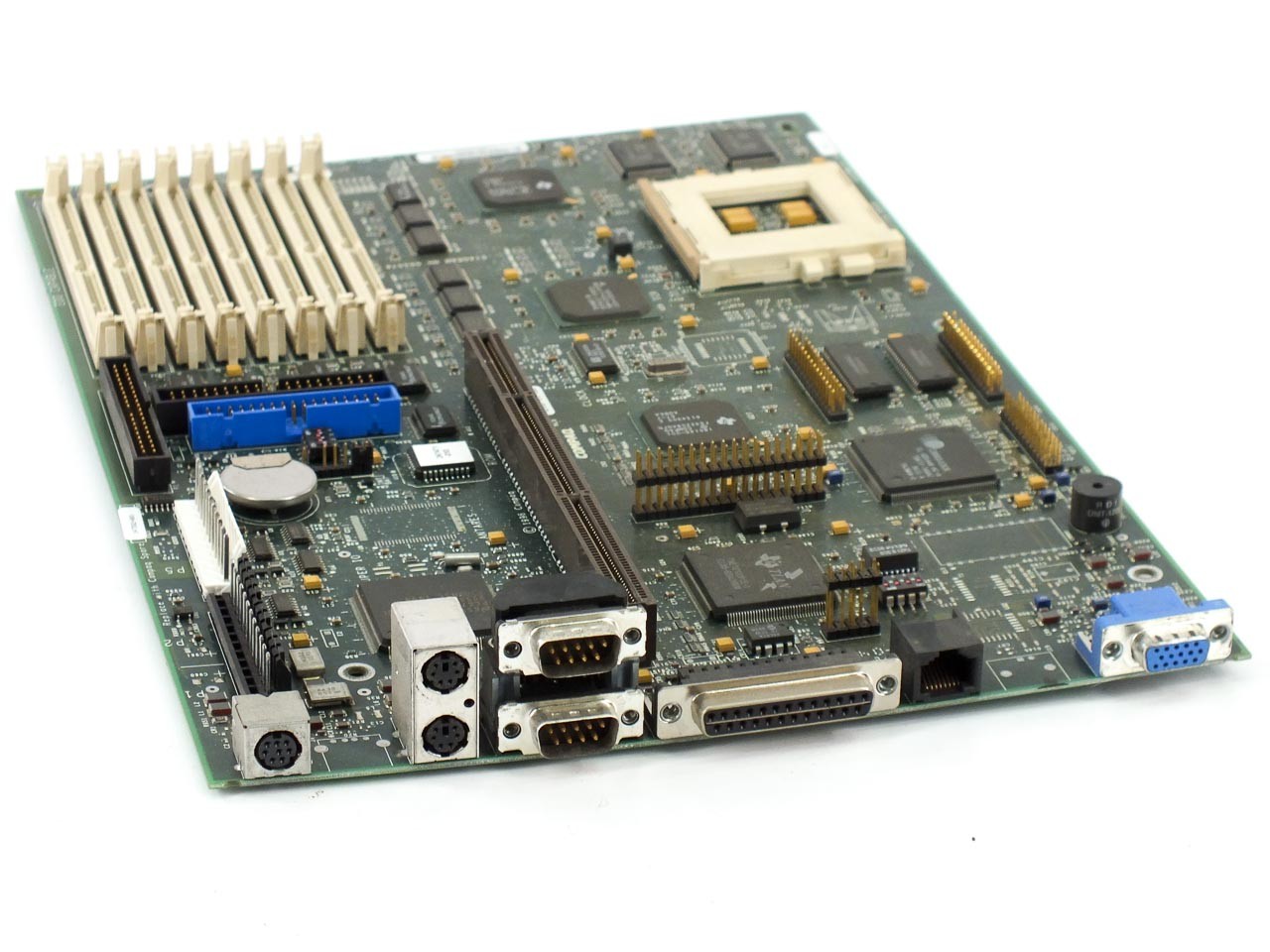

Compaq 247382-001 Deskpro 4000 Socket 7 Pentium Motherboard Cirrus Logic Video
Compaq 247382-001 Deskpro 4000 Socket 7 Pentium Motherboard Cirrus Logic Video
The Compaq 247382-001 is the original proprietary system board for the Compaq Deskpro 4000 desktop PC. It features a Socket 7 CPU socket supporting Intel Pentium processors up to 233MHz and integrates onboard Cirrus Logic video and a network adapter, keeping the Deskpro 4000's slim chassis free of expansion cards for those functions.
Specifications & What's Included
- Part Number: 247382-001
- Platform: Compaq Deskpro 4000
- CPU Socket: Socket 7 — supports Intel Pentium up to 233MHz
- Memory: 4 SIMM banks
- Storage Interfaces: Two IDE controllers; one floppy controller
- Power Interface: AT
- Integrated Video: Cirrus Logic (VGA output)
- Integrated NIC: Yes — onboard network adapter
- Serial Ports: Dual serial ports
- Parallel Port: Yes
- Compatible Riser Board: Compaq 247392-001 (ISA slots)
- Compatible Power Supply: Compaq 247134-001 200W ATX for Deskpro 4000
- Included: System board only
Applications
The Compaq Deskpro 4000 was a mid-1990s business desktop line designed around Intel's Socket 7 platform, targeting corporate and institutional deployments that needed a compact, managed PC with integrated networking. The Deskpro 4000 line dates from approximately 1995–1997, during the transition from 486-class to Pentium-class computing in enterprise environments. This system board is the correct replacement or spare for anyone maintaining, restoring, or repurposing a Deskpro 4000 chassis. Because the form factor and power interface are proprietary to the Deskpro 4000, this board is not a generic ATX replacement — it is specifically sought by technicians and collectors working with this machine. The integrated Cirrus Logic video and onboard NIC were standard features of Compaq's corporate desktop strategy of the era, reducing the need for additional ISA or PCI expansion cards in the slim case.
Condition: Used
This Compaq 247382-001 Deskpro 4000 Socket 7 Pentium system board has been tested at our facility and is in working order — with the proper components installed, it boots successfully to the BIOS screen. The board is from 1996 and shows normal wear consistent with its age and prior use. Cosmetically it appears clean with no visible damage to the PCB, sockets, or connectors. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function. Visit Our Store
