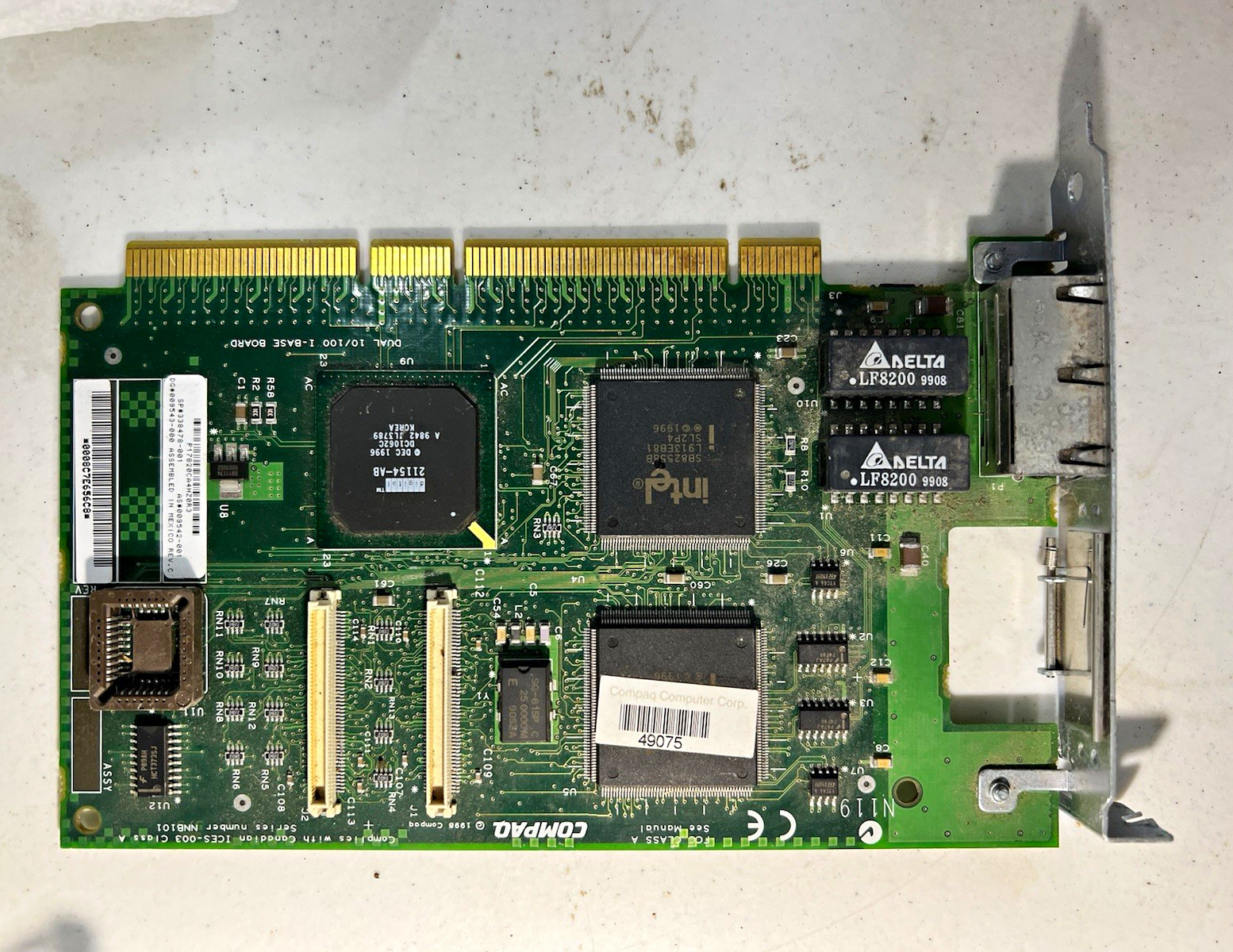

Vintage Compaq NC3131 Fast Ethernet Server NIC, Compaq spare part 338478-001.This is a genuine Compaq enterprise/server network adapter featuring two built-in 10/100BASE-TX RJ-45 Ethernet ports and Compaq’s modular expansion system for adding additional Ethernet or Gigabit network capability.Identification / specifications:* Model: Compaq NC3131
* Compaq Spare P/N: 338478-001
* Compaq Assembly P/N: 009542-001
* Compaq Option P/N: 338456-B21
* Two built-in 10/100BASE-TX RJ-45 Ethernet ports
* 32/64-bit PCI 2.1 Universal Connector, 33 MHz
* Full duplex and auto-negotiation support
* PCI bus-mastering architecture
* PCI Hot Plug capable
* Digital/DEC 21154-AB PCI-to-PCI bridge
* Intel Ethernet controller hardware
* ©1998 CompaqPLEASE NOTE THE EXTENDED PCI CONNECTOR:
This card has a longer edge connector than a conventional 32-bit PCI card. This is intentional. The NC3131 uses a 32/64-bit PCI Universal Connector, allowing it to operate with compatible 32-bit or 64-bit PCI bus slots. The additional contacts provide the extended 64-bit PCI bus connection. MODULAR EXPANSION DESIGN:
The two white connectors visible on the card are factory expansion connectors for Compaq optional network daughter modules. The unusual spring-loaded opening in the rear bracket is also part of this factory modular design and provides access for the connector(s) of an installed upgrade module.Compaq offered several upgrades for the NC3131, including:* NC3132 — additional dual 10/100 Ethernet
* NC3133 — 100BASE-FX fiber
* NC6132 — 1000BASE-SX Gigabit fiber
* NC6133 — 1000BASE-LX Gigabit fiberThis allowed a server to gain additional Fast Ethernet or Gigabit connectivity without replacing the base NC3131 adapter. Condition / testing:
This card was removed from a working computer approximately 20 years ago and stored since. It has not been recently tested, so it is being represented as a historical working pull rather than currently tested hardware.The card shows normal cosmetic wear, dust, oxidation and storage marks consistent with its age. Please review all photographs carefully for exact condition.The optional expansion/daughter module is not included. The card is being sold in its base NC3131 dual-port configuration exactly as pictured.Included:
One Compaq NC3131 338478-001 network adapter only.No drivers, cables, software, manuals, upgrade modules or other accessories are included.Buyer is responsible for verifying compatibility with their system.
