Introduction:

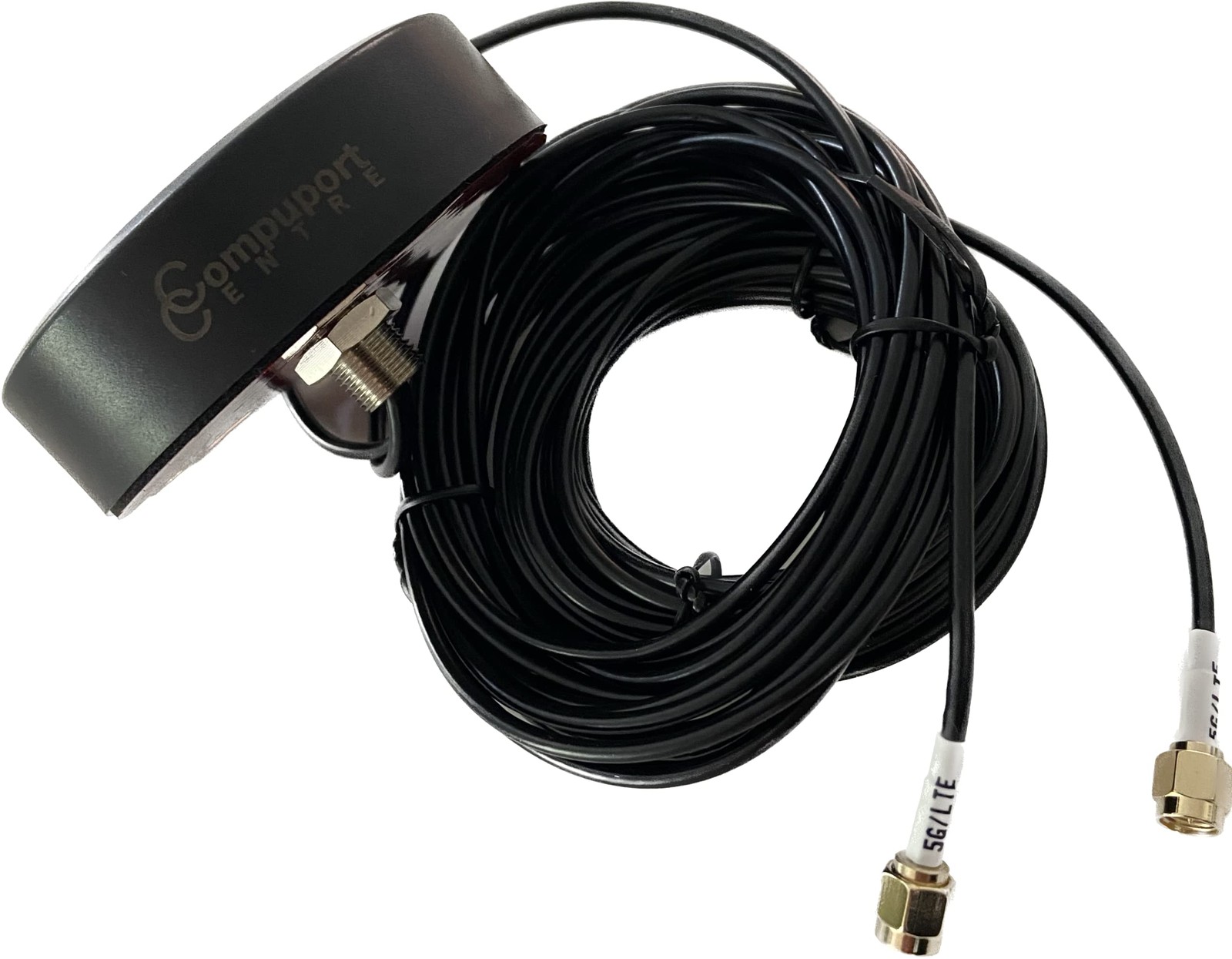

The 2 in 1 LTE 5G 4G antenna is a low profile, heavy-duty, waterproof reach IP66.
It is used by RF professionals in telematics, transportation, Smart Metering, SCADA, and remote monitoring applications.
It combines the highest possible efficiency and peak gain in GPS/3G/4G/5G in a low profile compact format for mounting via high-quality first-tier
For installation combines 3M adhesive foam, screw mount together。 Specification:
Frequency range: 2x 698-960/1710-3800MHz, Supports 40 Bands, Cellular Modems, HSPA GSM GPRS
V.S.W.R :＜2
Gain: 2x3dBi
Polarization: Linear
Impedance: 50Ω
Housing: Black
Cables: 2x RG174
Length: 2x 15' (4.5 meters)
Connectors: 2x SMA Male
Working Temp: -40℃~+85℃
Humidity: 55%-75%RH
Waterproof: IP66
Antenna Radome Material: ABS
Mount way: Screw
Antenna Dimension: Ф80x15 mm
Weight: 150g
RoHS Compliant: YES【Advantages】- VANDAL Resistant - NEMA Enclosures, Ceilings, and Covert Installations - Water Resistant - No Exposed Cabling, supports all the cellular bands.
【Features】:CompuPort 5G 4G LTE Puck antenna is a low-profile, heavy-duty, waterproof IP66.
【Compatibility】:Compuport Puck Antennas are designed for Remote Monitor, IoT, IIoT, Smart Cities, Vehicles, Oil&Gas, Smart-meters, and any Cellular 5G Wireless modems
