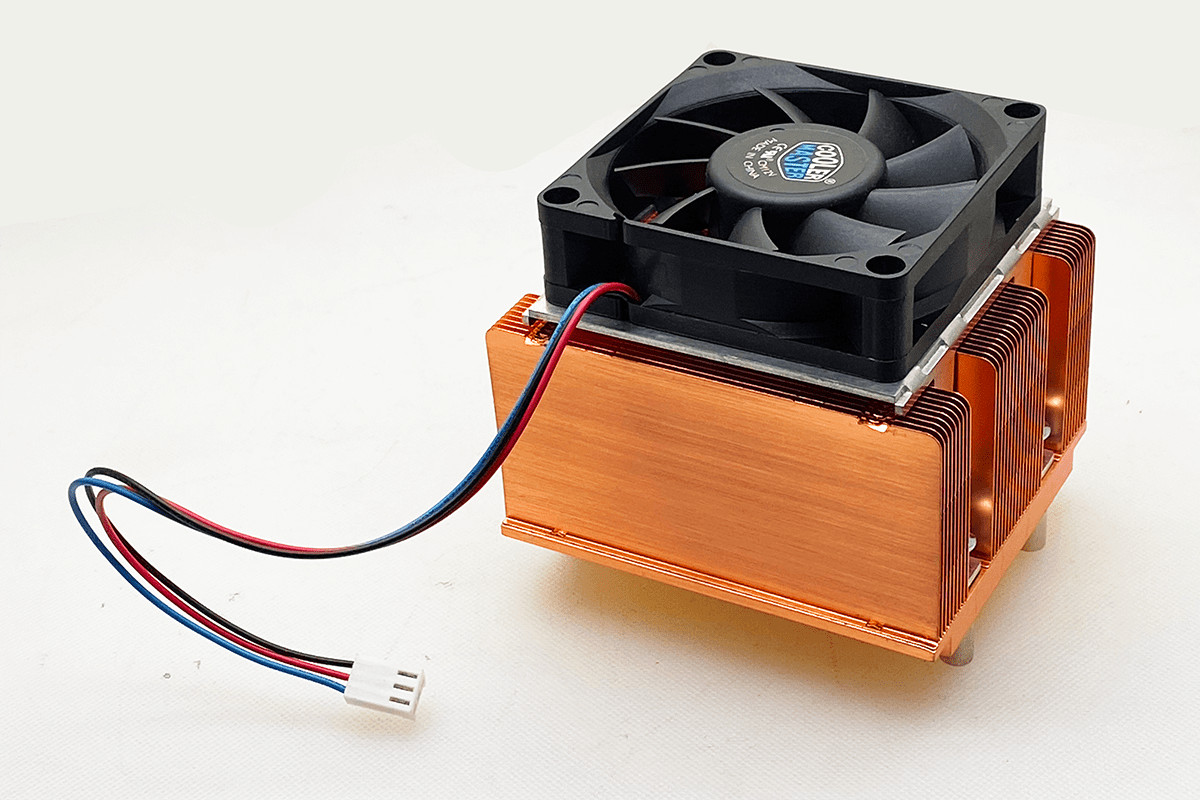

Cooler Master Socket 604 3U Heatsink Cooling Fan
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
Cooler Master Socket 604 3U Heatsink Cooling Fan
Price: US $59.00
For Intel Xeon (Nocona Code, Irwindale Code) processor 3U
  • Application System: 2.5U+ Form Factor Active Solution
  • CPU Type: Intel Xeon (Nocona / Irwindale)
  • Supported CPU: 2.8 ~ 4.0 GHz up; FSB 800 MHz
  • Socket Type: 604-Pin


    • Heat Sink:
  • Manufacturer: Cooler Master
  • Heat Sink: Copper Base + Copper Stacked Fin
  • Cooler Dimension: 89 x 75 x 52 mm
  • Fastener: Screws
  • Interface Material: Shin Etsu X-23-7762
  • CEK Spring: Provide by Motherboard

    • Fan:
  • Delta Electronics
  • Model: AFB0712HHD
  • Dimensions: 70x70x20 MM
  • Rated Voltage: DC 12V
  • Operating Voltage: DC 5 - 13.8V
  • Current: 0.25A, (Max. 0.30A)
  • Input Power: 3.0W
  • Speed: 4400 RPM
  • Air Flow: 40.43 CFM
  • Noise: 40.5 dBA
  • Bearing: Dual Ball Bearing
  • Feature: Speed Sensor (Tach)
  • Mounting Style: Rib Type, Both Side Counterbore
  • Termination: 3-Pin Connector Plug
