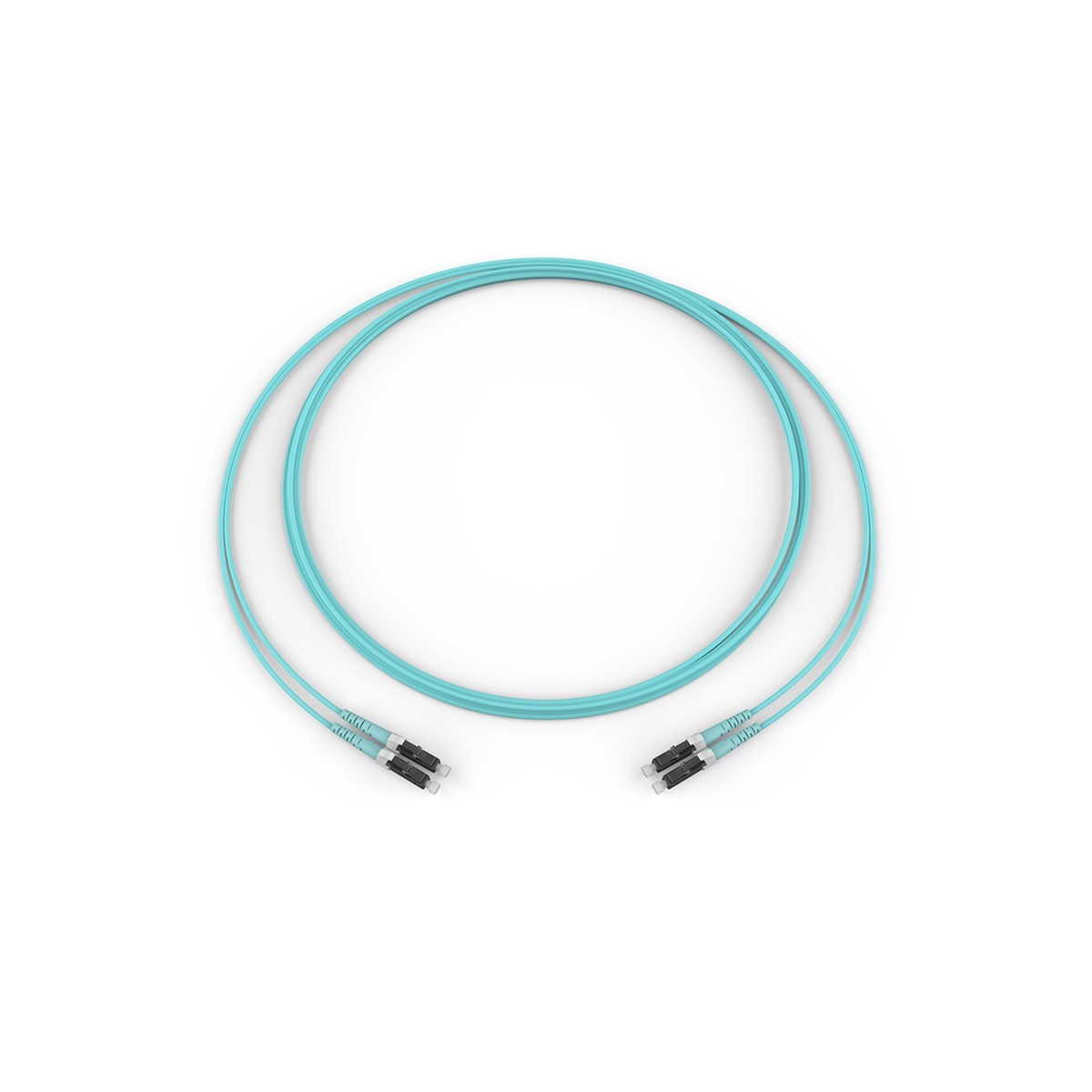

Corning 050502T5120001M 1 Meter LC Duplex Fiber Optic Jumper Aqua 50µm (OM3) Click Thumbnails to EnlargeDESCRIPTION
• Corning 050502T5120001MFiber Optic Jumper, 2 F, LC Duplex to LC Duplex, Zipcord Cable, Riser, 2.0 mm legs 2F, Zipcord Riser, LC Duplex MM to LC Duplex MM, OM3, 50 μm, aqua jacket, 1 meter
APPLICATIONS
• General Building Applications, Vertical Riser
OPTICAL CHARACTERISTICS
• Fiber Code: T
• Performance Option Code: 80
• Fiber Category: OM3
• Fiber Type: Multimode
• Fiber Name: 50 µm MM (OM3)
• Maximum Attenuation: 2.8 dB/km / 1.0 dB/km
• Wavelengths: 850 nm / 1300 nm
• Fiber Compliance: IEC 60793-2-10
• Fiber Core Diameter: 50 µm
• Serial 1 Gigabit Ethernet: 1000 m / 600 m
• Serial 10 Gigabit Ethernet: 33 m / -
• Minimum Effective Modal Bandwidth (EMB): 2000 MHz*km / -
• Minimum Overfilled Launch (OFL) Bandwidth: 1500 MHz*km / 500 MHz*km
SPECIFICATIONS - CONNECTOR A
• Insertion Loss, Typical: 0.35 dB
• Boot Color: Aqua
• Connector Type: LC Duplex
• Ferrule Material: Ceramic
• Housing Color: Beige
• Housing Material: Composite
SPECIFICATIONS - CONNECTOR B
• Insertion Loss, Typical: 0.35 dB
• Boot Color: Aqua
• Connector Type: LC Duplex
• Ferrule Material: Ceramic
• Housing Color: Black
STANDARDS
• Free of hazardous substances according to RoHS 2011/65/EU
PRODUCT SPECIFICATIONSPart Number 050502T5120001MFiber Count 2Length 1 meter (3.28 ft)Outer Jacket Color AquaFlame RatingRiser (OFNR)Fiber Category50 µm MM (OM3)Cable Assembly Type Two FiberCable TypeTight-BufferedNominal Outer Diameter4 mm (0.16 in)
