Corning SST-Drop 12 Fiber OS2 SM Outdoor Dielectric Gel-Filled FastAccess Cable 2500 FT Wooden Spool 012EB4-14701A20
Item description
Genuine Corning SST-Drop™ outdoor single-tube gel-filled dielectric drop cable with FastAccess® Technology. 12-fiber single-mode OS2. Cut length 2,500 feet wound on a wooden spool.
This is the FastAccess version (Corning P/N 012EB4-14701A20). Jacket removal is designed to be up to ~55% faster than traditional flat drop, with no special access tool required. All-dielectric construction — no bonding or grounding. RDUP (RUS) listed. Built for outdoor drop, duct, and buried work with high crush resistance.
What’s included
- 2,500 ft Corning SST-Drop™ 12F OS2 dielectric gel-filled cable with FastAccess®
- Wound on a wooden spool
- Factory print and sequential footage markings (typical Corning print)
- Unterminated bulk cable (no connectors)
Cable Outdoor, Single-Tube, Gel-Filled Dielectric with FastAccess®Part number012EB4-14701A20Fiber count12Fiber typeSingle-mode OS2 / 250 µmFiber standardITU-T G.652.DBufferSingle 3 mm gel-filled tubeJacketBlack polyethylene (PE)ConstructionAll-dielectric strength membersProfileApprox. 8.1 mm × 4.4 mm (0.32 in × 0.17 in)Fiber colorsBlue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, AquaWeight~20 lb / 1,000 ft (30 kg/km)Max tensile, short-term1350 N (~300 lbf)Max tensile, long-term400 N (~90 lbf)Min bend radius (operation)80 mm (3.15 in)Install temp−22°F to 158°F (−30°C to 70°C)Operate / store temp−40°F to 158°F (−40°C to 70°C)Max attenuation0.4 / 0.4 / 0.3 dB/km @ 1310 / 1383 / 1550 nmListingsRDUP (RUS), RoHS
Applications
- FTTx / last-mile outdoor drop
- Aerial drop (dielectric, no messenger required on this construction)
- Duct and direct-buried drop
- Rural broadband / RUS-funded builds
- Splice-ready bulk cable for field termination or pre-term assemblies
Condition & notes
- New Corning cable, cut to 2,500 ft
- On wooden spool for handling and payout
- Length is a cut from bulk — ends are not factory sealed or connectorized

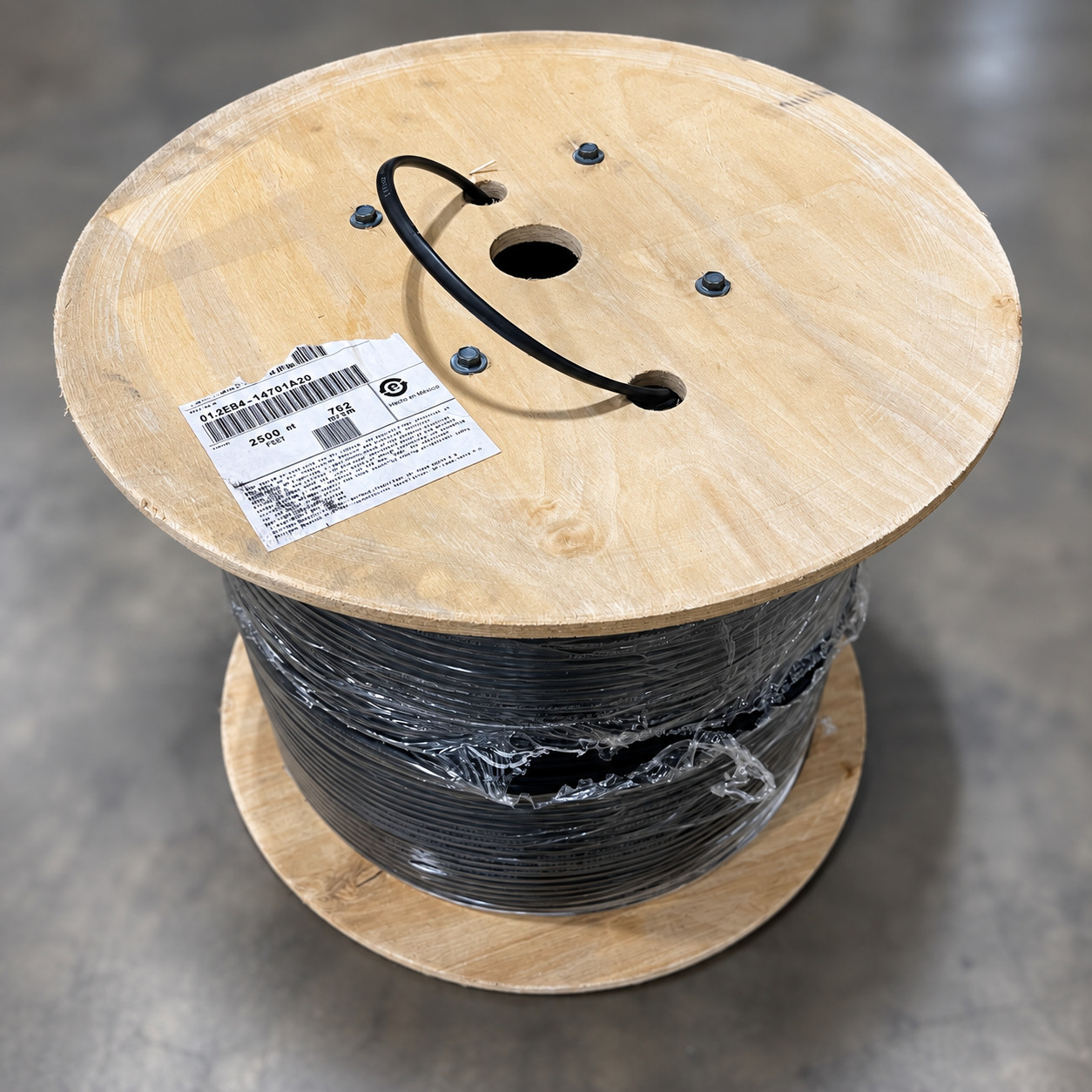

- Photos show typical product/spool style; actual print date and footage marks will be on the cable
