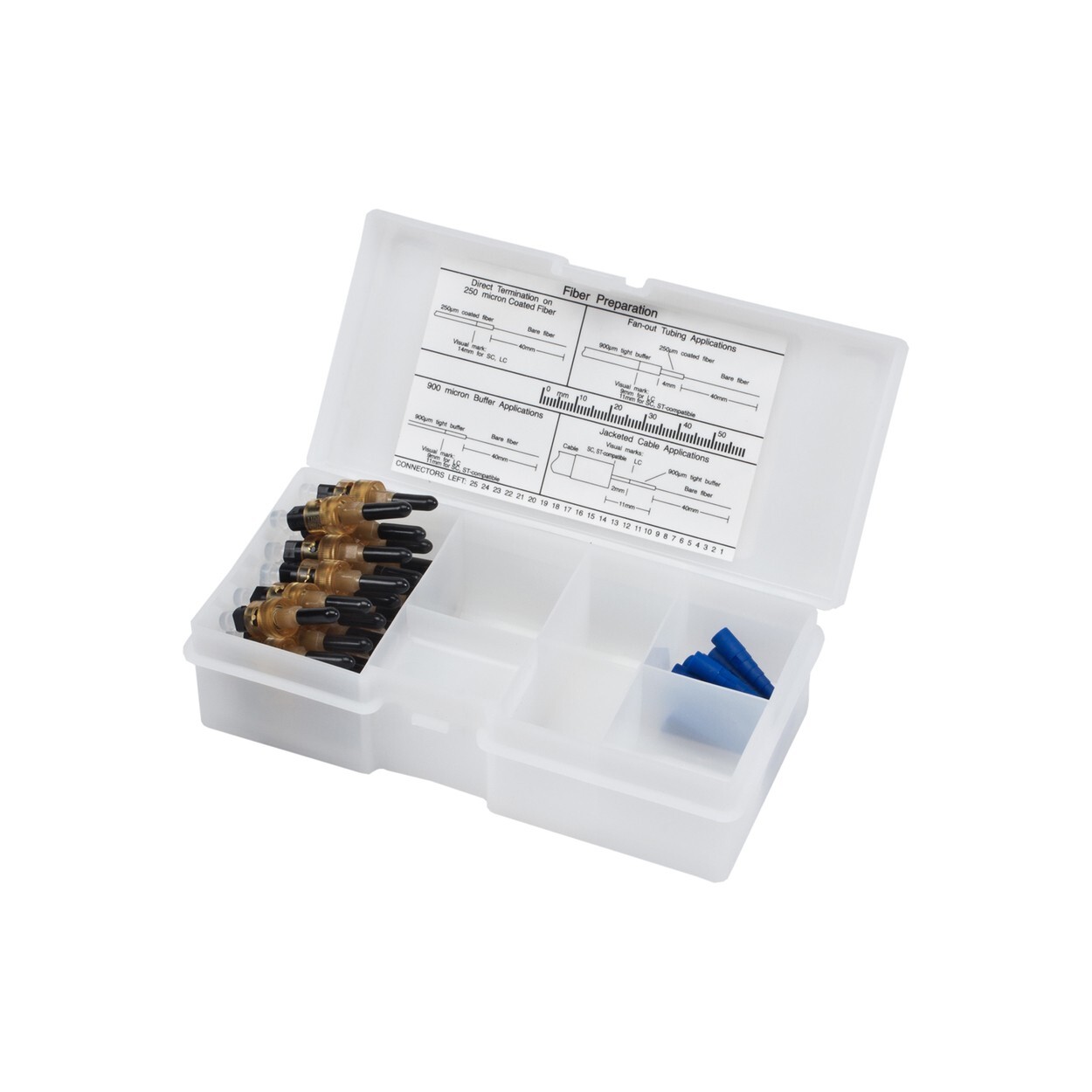

Corning 95-200-51-Z ST Compatible UniCam Connector Single-Mode (OS2) Click Thumbnails to EnlargeDESCRIPTION
• Corning 95-200-51-ZUniCam Connector, ST Compatible Single-mode (OS2)
FEATURES & BENEFITS
• Performance guaranteed ; 100 percent yield guarantee
• Broad operating temperature range (-40°C to +75°C) ; Utility and flexibility
• Factory-polished end face ; Consistent optical performance
• Fast termination and no consumables ; Low installation cost
• Minimum insertion loss ; Optimum optical performance
GENERAL SPECIFICATIONS
• Fiber Category: Single-mode (OS2)
• Product Type: Field-Installable Connectors
• Corning Logo: Yes
• Keyed (security) : No
• Technology: RoHS: Free of hazardous substances according to RoHS 2011/65/EU
ENVIRONMENTAL CONDITIONS
• Temperature Range, Operation: 0°C to 60°C (32°F to 140°F )
DESIGN - CONNECTOR
• Connector Type: ST Compatible
• Housing Color: Amber
• Boot Color: Blue
MECHANICAL SPECIFICATIONS - CONNECTOR
• Nominal Fiber Outer Diameter: 125 µm
• Tensile Strength Jacketed Cable: 44 N (9.89 lbf)
• Durability: ≤ 0.2 dB change, 500 rematings, FOTP-21
• Tensile Strength 900 µm Cable: 4.9 N (1.1 lb) change ≤ 0.2 dB, FOTP-6
OPTICAL SPECIFICATIONS - CONNECTOR
• Polish:UPC
• Insertion Loss, Maximum:0.5 dB
•Reflectance:< -55 dB
•Insertion Loss, Typical:0.2 dB
PRODUCT SPECIFICATIONSProduct Number 95-200-51-Z
EAN Code 4056418196251Package Contents "25 Connectors, 25 Boots (900 µm)"
Packaging Method Organizer Pack
