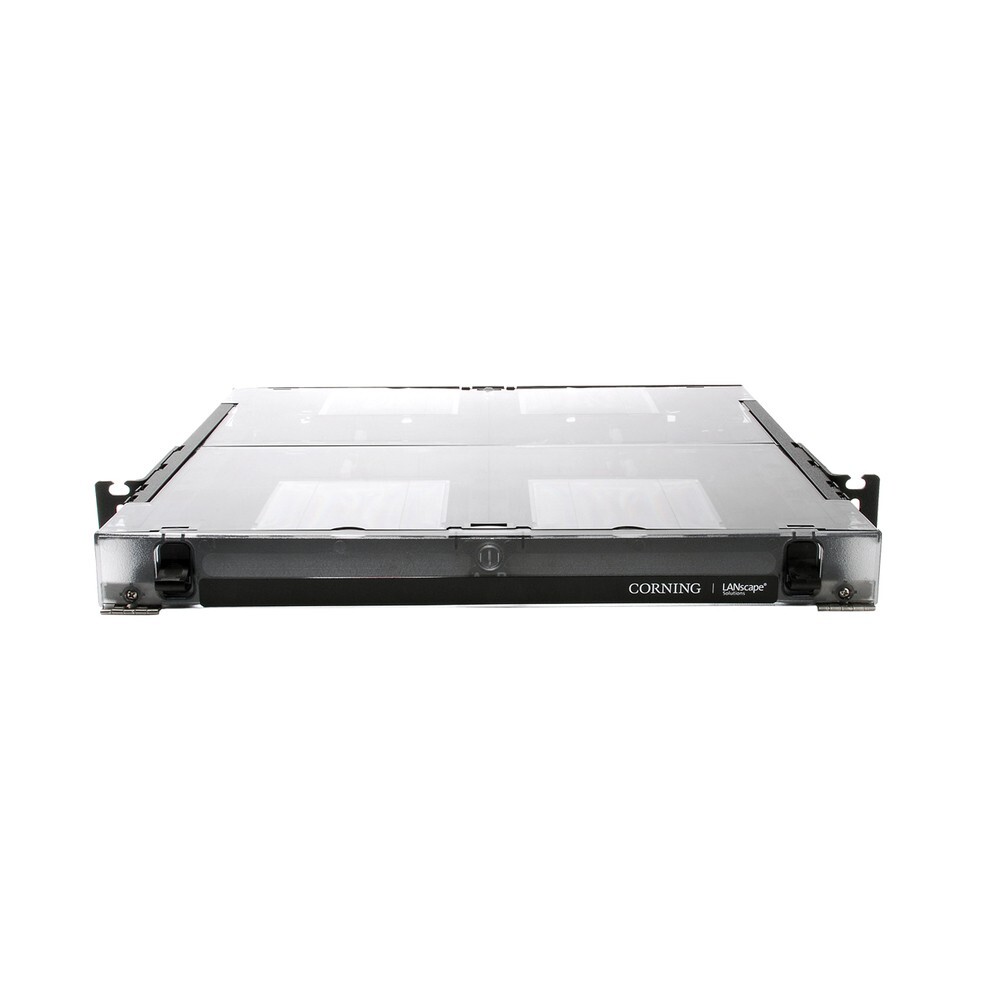

Corning CCH-01U Closet Connector Housing (CCH) 1U Rack Unit Black Click Thumbnails to EnlargeFEATURES AND BENEFITS
• Durable, polycarbonate-tinted front door for viewing jumpers ; Ideal for pigtail splicing
• Removable, translucent top covers (1U, 2U, 3U), rear cover (4U) ; Visibility and ease of access for installation, testing, and troubleshooting
• Internal and external strain-relief options ; Flexibility for installation and moves, adds, and changes (MACs)
• Accepts panels, modules, and cassettes ; Variety of field-termination options
• Adaptable to use as a modular splice housing ; Splices are stored and protected in same footprint
GENERAL SPECIFICATIONS
• Product Type: Fiber Optic Hardware
• Environment: Indoor
• Access Type: Front and rear access slidable
• Mounting Type: Rack 19-in, Rack 23-in, Cabinet-mount
• Application: Carrier Networks, Data Center, Enterprise Networks
STANDARDS
• RoHS: Free of hazardous substances according to RoHS 2011/65/EU
• Approvals and Listings: Meets ANSI/TIA/EIA-568A and 606, Tested in accordance with Telecordia GR-63-CORE, UL1863 - Communication Circuit Accessories
• UL-Listed: United States and Canadian safety standards
• Temperature Range, Operation: -40°C to 70°C (-40°F to 158°F )
DIMENSIONS
• Height: 47.11 mm (1.85 in)
• Width: 496.5 mm (19.55 in)
• Depth: 433 mm (17.05 in)
PRODUCT SPECIFICATIONSFiber Count 48Housing Material Powder-coated metal and polycarbonate trayNumber of Modules 2Cable Entry Type External and Internal strain-relief bracketNumber of Panels/Cassettes per Housing 2Pigtail Length 2.25 m (7.38 ft)Housing Type CCHLocking Availability Front or RearPanel or Cassette Type CCHPanel or Module Type CCH
Splice Tray Options CCH Pigtailed Splice Cassette (CCH-CS)Number of Ports 24Shipping
