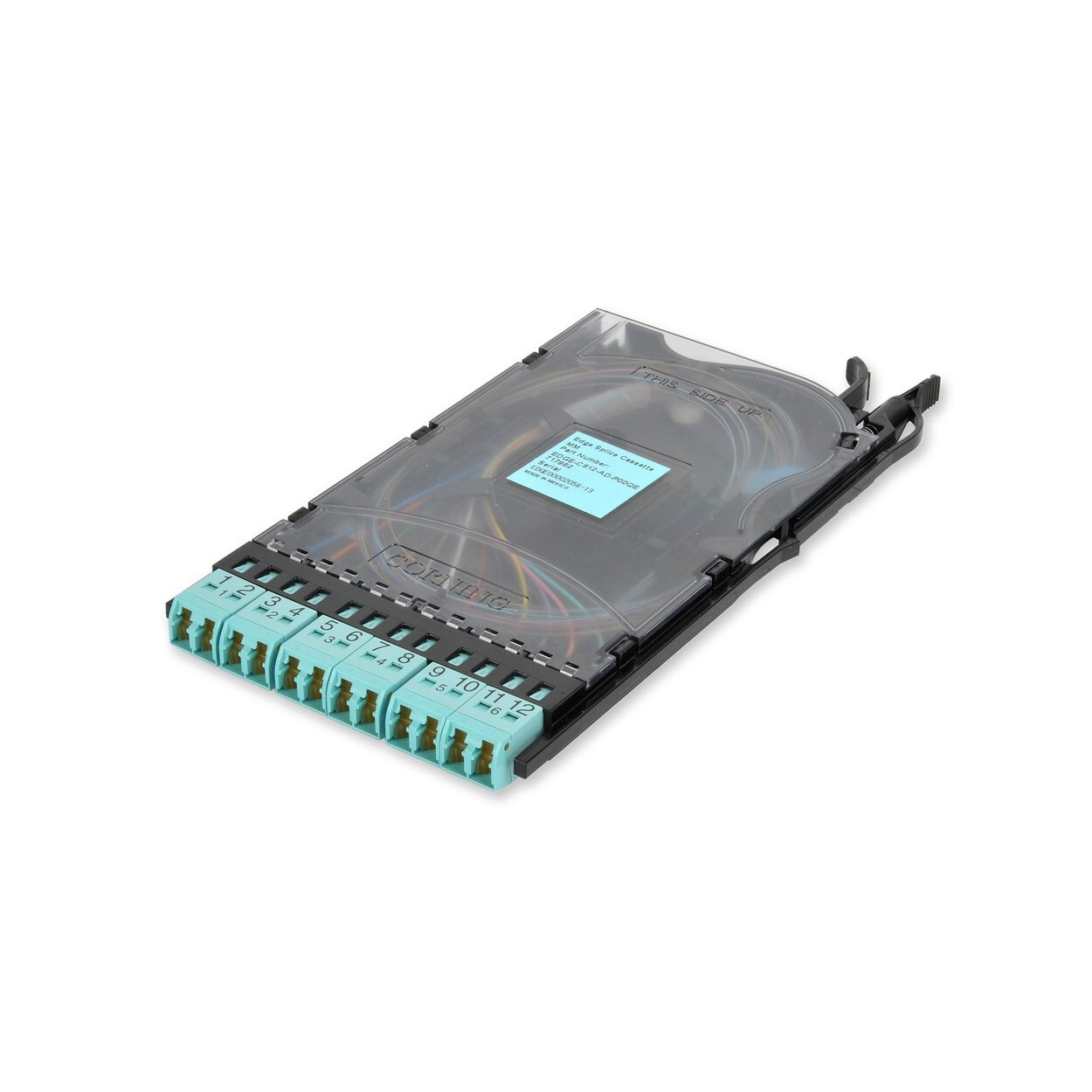

Corning EDGE-CS12-AD-P00QE 12 Fiber LC Duplex Splice Cassette 50 µm MM (OM4) Click Thumbnails to EnlargeDESCRIPTION
• Corning EDGE-CS12-AD-P00QEEDGE Splice Cassette 12 F, LC duplex, OM4, single-fiber
GENERAL SPECIFICATIONS
• Fiber Category:50 µm MM (OM4)
•Splice option:Yes
•Application:Data Center LAN/SAN
STANDARDS
• RoHS:Free of hazardous substances according to RoHS 2011/65/EU
ENVIRONMENTAL CONDITIONS
•Temperature Range, Installation:-5°C to 50°C (23°F to 122°F)
•Temperature Range, Operation:-20°C to 60°C (-4°F to 140°F)
DESIGN
• Fiber Count: 12
•Splice Tray Type:EDGE splice cassette with organizers
•Number of pigtails: 12
•Number of Splice Trays: 1
•Pigtail Length:1.5 meter (4.92 ft)
•Adapter Color Front:Aqua
•Adapter Type Front:Shuttered LC
•Housing Type:Cassettes
•Number of pigtail bundles: 1
•Panel or Module Type:EDGE
•Pigtail Type:Telcordia color-coded for buffers and fibers
•Splice Protectors Type:Heat Shrink Splice Protection
•Fiber Capacity: 12
•Number of Splice Protectors: 12
•Number of Adapters per Panel: 6
DESIGN - ADAPTER
•Housing Color:Aqua
•Housing Material:Composite
•Keyed Adapter:No
•Shuttered Adapter:Yes
•Adapter Type:LC Duplex SPECIFICATION - HARDWARE
•Module Insertion Loss, Max:0.5 dB
SPECIFICATIONS - CONNECTOR A
•Connector Type:LC Duplex
•Ferrule shipping on most orders.
