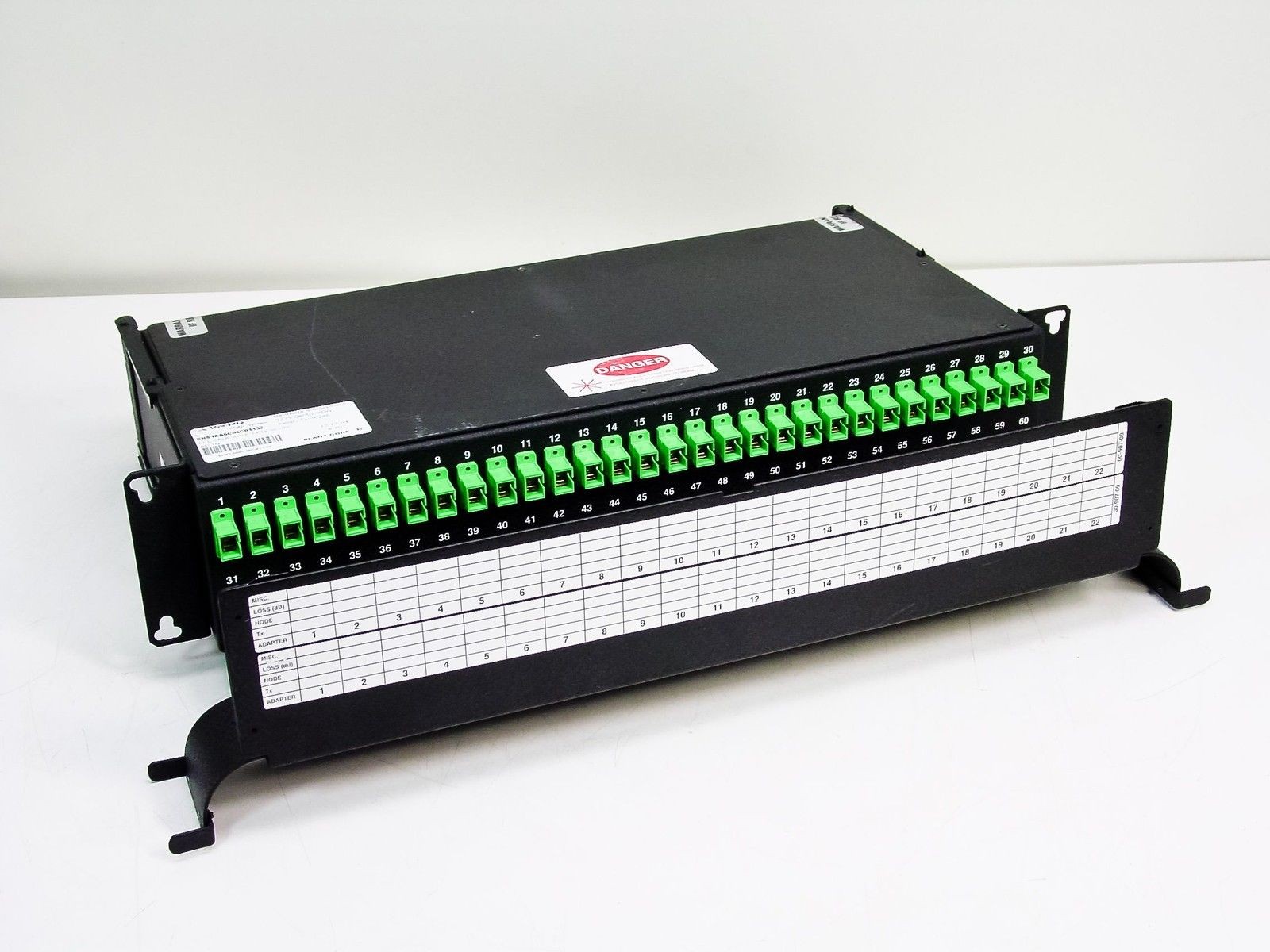

Corning EHS1AA6C06C01132 ECL Coupler Shelf 1x32 SC/UPC Fiber Optic 19" Rack

Corning EHS1AA6C06C01132 ECL Coupler Shelf 1x32 SC/UPC Fiber Optic 19" Rack

The Corning EHS1AA6C06C01132 is a 1x32 ECL (Enclosure Coupler/Splitter) Shelf designed for 19-inch rack mounting in fiber optic distribution systems. Manufactured by Corning Cable Systems, this passive optical shelf houses 32 SC/UPC coupler adapters arranged in a labeled, numbered front-panel layout that supports structured fiber documentation and port tracking. The hinged-lid chassis protects internal fiber routing while providing front-panel access to all 32 adapter positions.

Specifications & What's Included

• Part Number: EHS1AA6C06C01132
• Description: ECL Coupler Shelf, 1x32, SC/UPC
• Manufacturer: Corning Cable Systems (Corning Incorporated)
• Form Factor: 19" rackmount chassis
• Split / Coupling Ratio: 1x32
• Connector Type: SC/UPC (32 green SC/UPC adapter ports)
• Fiber Compatibility: Single-mode fiber
• Port Count: 32 numbered adapter positions on front panel
• Front panel label card with fields for: Adapter #, Tx, Node, Loss (dB), and Misc. per port
• Hinged lid enclosure for fiber cable management and protection
• Manufacture Date: December 13, 2004 (per label)
• Plant Code: fiber optic coupler shelves like the Corning EHS1AA6C06C01132 are used in fiber-to-the-premises (FTTP/FTTH), telecom central office, and data center environments to split or distribute a single fiber signal across multiple output ports without active electronics. The 1x32 split ratio is common in PON (Passive Optical Network) deployments, where a single upstream feeder fiber is distributed to up to 32 subscribers or endpoints. Corning Cable Systems has been a leading supplier of fiber distribution hardware to telecom carriers and network contractors since the 1990s, and shelves of this type are found in outside plant cabinets, headend racks, and IDF/MDF enclosures. The SC/UPC connector standard is widely used in single-mode telecom infrastructure for low-loss connections. This style of enclosure shelf is still in use today in legacy FTTP builds and fiber plant extensions where existing Corning infrastructure is being maintained or expanded.
  Condition: For Parts or Not Working
  This Corning EHS1AA6C06C01132 ECL Coupler Shelf is being sold as-is for parts or repair. The unit has not been functionally tested and no guarantee of operational performance is made. Cosmetically, the chassis appears to be in good physical shape with the 32 SC/UPC adapter ports present and intact as shown in the photos. Please review our full photo set carefully before purchasing and contact us with any questions. Visit Our Store
