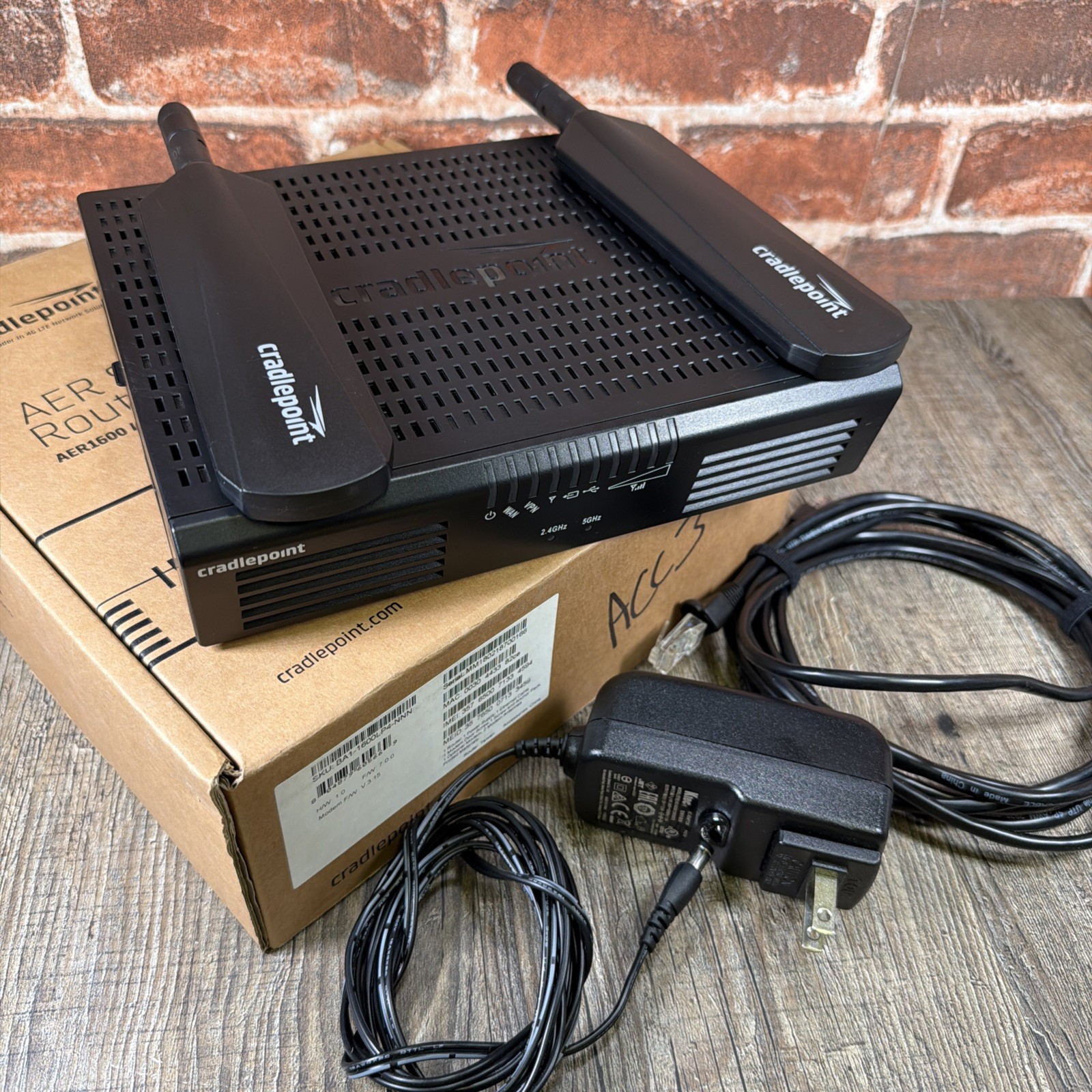

Pre-owned Cradlepoint AER1600 Micro Branch Router, model AER1600LP4, with embedded 4G LTE Advanced modem. These units have been previously deployed and may show minor cosmetic wear such as small scuffs, marks, or other indications of prior installation. Overall, they are in excellent condition.
We have a number of these available. You may not receive the exact unit pictured, but you will receive one in similarly excellent condition with the same specifications and included accessories.
Each listing includes:
Important Configuration Information
These routers have been previously deployed and will likely retain configuration settings from their previous installation. The buyer should expect to perform a factory reset before putting the router into service and configure it for their own network.
Cradlepoint NetCloud services, subscriptions, licenses, and cellular service are not included. A compatible SIM card and active cellular service are required to use the embedded LTE modem.
Embedded LP4 LTE Modem
The AER1600LP4 includes an embedded Category 4 LTE / DC-HSPA+ modem with SIM-based automatic carrier selection. Insert a compatible SIM and the router can automatically detect the carrier and establish a connection, subject to carrier compatibility and active service.
Modem: Embedded LTE Advanced Category 4
Technology: Category 4 LTE, DC-HSPA+
LTE Downlink: Up to 150 Mbps
LTE Uplink: Up to 50 Mbps
DC-HSPA+ Downlink: Up to 42.2 Mbps
DC-HSPA+ Uplink: Up to 5.76 Mbps
SIM: Two secured 2FF SIM slots
Dual SIM capable
Dual modem capable
Antennas: Two SMA male connections
Antenna torque: Maximum 4 in-lbs
LTE Power: 23 dBm ±1
DC-HSPA+ Power: 23 dBm ±1
LTE Frequency Bands:
DC-HSPA+/UMTS Rel. 9, Cat 24:
Band 2 — 1900 MHz
Band 5 — 850 MHz
Router Features
Model: AER1600LP4
Dual-band, dual-concurrent WiFi
WiFi: 802.11a/b/g/n/ac
2×2 MIMO internal WiFi antennas
Up to 128 connected WiFi devices
Five 10/100/1000 Ethernet ports
WAN/LAN ports are switchable
WiFi as WAN
Automated WAN failover/failback
Load balancing
WAN affinity
WAN/LAN affinity
IP Passthrough
Advance Modem Failure Check
WAN port speed control
Private network support
Cloud-based management
Cradlepoint NetCloud Manager support
Out-of-band management
GPS location
SMS control
Data usage alerts
Advanced troubleshooting
VPN & Routing
IPsec tunnels — up to 20 concurrent sessions
IKEv2 with MOBIKE
OpenVPN / SSL routing
Policy-based routing
Per-interface routing
NAT-less routing
Virtual server / port forwarding
VTI tunnel filters
Access control lists
DHCP Server, Client and Relay
DNS / DNS / Multicast Proxy
Security & Network Management
IP filtering
Basic content filtering
Website filtering
MAC address filtering
802.1p/q LAN QoS
VLAN 802.1Q
QoS / DSCP / priority queuing
802.1x authentication
RADIUS and TACACS+ support
Certificate support
Zscaler Internet Security support
CP Secure Threat Management support
Advanced Security Mode
Per-client web filtering
Web Perimeter gateway dual-concurrent
2×2 GHz and 5 GHz
Up to 64 devices per band
WEP Auto
WPA/WPA2 Personal
WPA2 Enterprise
Hotspot / Captive Portal
SSID-based priority management
WiFi as Temperature: 32°F to 122°F (0°C to 50°C)
Storage Temperature: -4°F to 158°F (-20°C to 70°C)
Operating Humidity: 10–85%, non-condensing
Storage Humidity: 5–90%, non-condensing
Memory: 256 MB DRAM
SPI Flash: 16 MB
NAND Flash: 256 MB
Dimensions: 8.3" × 6.6" × 1.7"
Dimensions: 210 × 167 × 44 mm
Height: 1U
Weight: 1 lb. 4.4 oz. (0.58 kg)
WiFi Transmit Power
2.4 GHz: 28.51 dBm conducted
5 GHz Band 1: 26.66 dBm conducted
5 GHz Band 3: 23.54 dBm Private Networks
Please review all photos carefully. The actual unit you receive may not be the exact unit pictured, but it will be in similarly excellent overall condition. Minor blemishes, scuffs, marks, and other indications of previous deployment should be expected.
Because these units were previously deployed, a factory reset will likely be necessary before use. Please verify that the AER1600LP4 and its LTE bands are appropriate for your intended carrier and application before AER1600, AER1600LP4, Cradlepoint AER1600LP4, Cradlepoint Router, Micro Branch Router, Branch Router, 4G LTE Router, LTE Advanced, Category 4 LTE, LTE Router, Cellular Router, 4G Router, Dual Modem, Dual SIM, Multi Carrier, Auto Carrier Selection, SIM Router, Verizon LTE, AT&T LTE, LTE Failover, WAN Failover, WiFi Router, Enterprise Router, Edge Router, Advanced Edge Routing, NetCloud, NetCloud Manager, NCM, SD-WAN, VPN Router, IPsec, OpenVPN, Gigabit Ethernet, 802.11ac, Dual Band WiFi, WWAN, Wireless WAN, OOBM, Out of Band Management, IoT Router, M2M, Branch Office, Retail Network, Remote Network, Network Equipment, Preowned Router, E300, R1900 5G, MC400, E3000, R920, R980, E3000-5GB, E300-5GB
