Please note before purchasing: refurbished 3D scanners do not have reflective markers sheets and Calibration board.

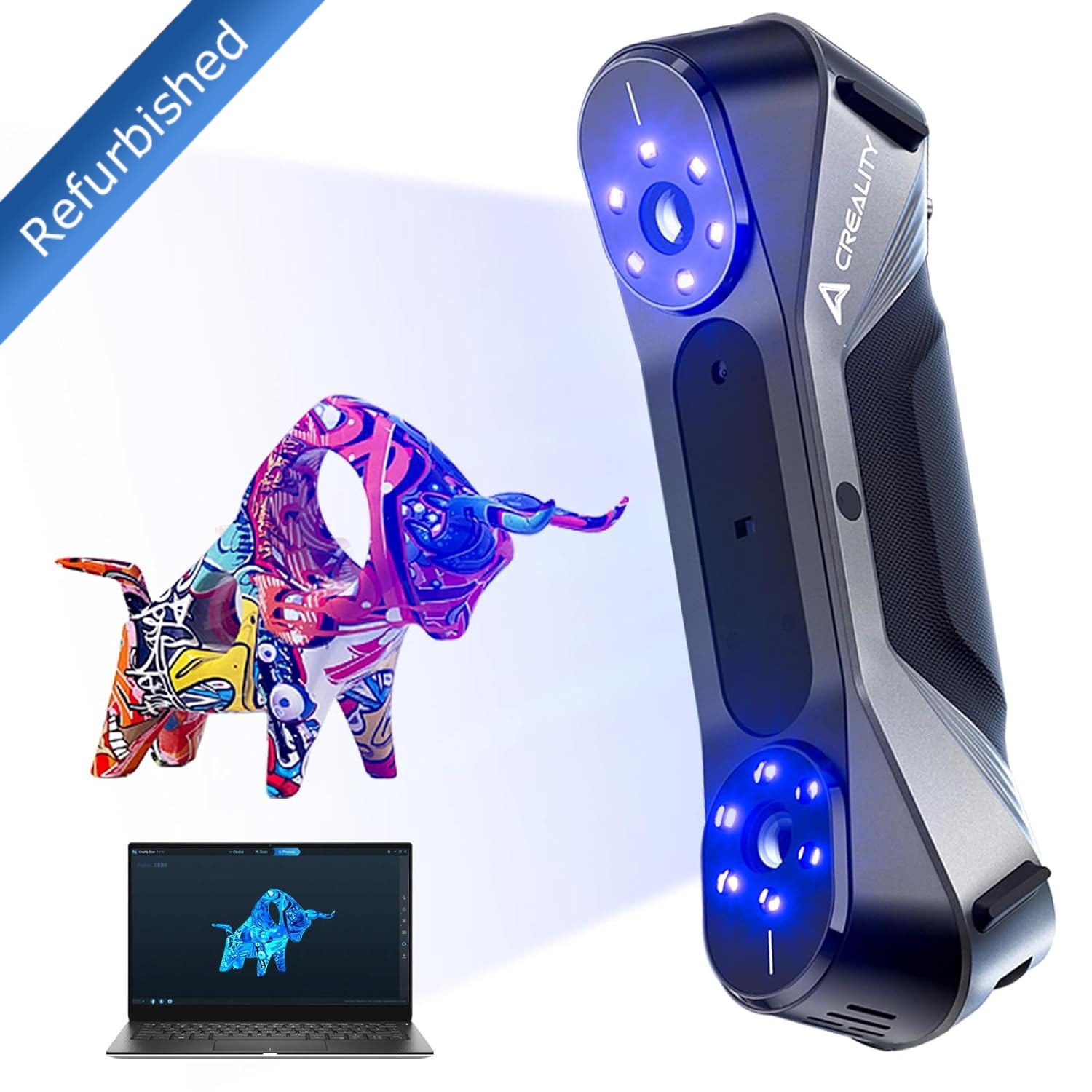

• The first multi-line blue and NIR 3D scanner for consumers: Creality CR-Scan Raptor Scanner integrates an innovative combination of blue infrared light sources, covering the scanning of small, medium and large objects, meeting the needs of various industrial 3D scanning scenarios. 7 parallel blue lines for fine scanning details, a single line is very thin, up to 0.1mm, to obtain sharper and clear edges. Scanning accuracy up to 0.02mm ensures every detail is sharp and clear.
• High-speed scanning: Raptor scanner with blue light and scanning speed up to 60fps, NIR scanning speed up to 20fps. Combining lines with structured infrared light, the scans can scan objects ranging in size from 5x5x5mm to 2000x2000x2000mm, effortlessly scanning small figures, bolts, faces, human bodies, car parts and more, versatile scanning for all sizes. CR-Scan Raptor uses 3D imaging with speckle matching, no markings are required for feature-rich workpieces, objects can be scanned quickly and directly
• Anti-shake, smooth and efficient scanning: Raptor scanner is equipped with one-shot 3D imaging technology, naturally stabilized and less likely to lose track, fast retracing speed ensures smoother handheld scanning, scanning speed up to 20fps. At the same time, the lens has an autofocus function to ensure that you will not have a bad scanning experience such as lost frames or defocus during scanning
• 24-bit full-color scanning: The Raptor scanner is equipped with 12 circular LED texture lights and can improve the brightness of color mapping in dark environments and truly represent the color of objects. Two-color circular LED texture lights can help achieve more realistic scanning results. Blue light provides additional light for laser line scanning. White light is used to improve the brightness of color textures
• Cross-platform compatibility: You can use it on a Windows or macOS Link scanner. CrealityScan is a professional 3D scanning software with excellent usability and powerful image and point cloud processing capabilities. With its step-by-step instructions, one-click model processing, and model editing functions, you can easily start scanning.

Scanning mode: Blue light (blue 7-line laser) / NIR (binocular structured infrared light)>>Blue light (blue 7-line laser) mode
Accuracy: Up to 0.02 mm at 100 mm [1]
3D resolution: 0.02-2mm
Scanning speed: Up to 60fps
Min. scan volume: 5mm x 5mm x 5mm
Single detection range: 270mmx170mm@300mm
Working distance: 150mm-400mm
Color Mapping: Yes
Alignment mode: Marker>>NIR (binocular structured infrared light) mode
Accuracy：up to 0.1mm
3D resolution：0.1-2mm
Scanning speed：up to 20fps
Single detection distance: 170mm-1000mm
Color mapping: Yes
Alignment mode: Marking/geometry/texture
General parameters:
3D camera resolution: 1920x1200
Color auxiliary light: 12 white LEDs
Marker detection enhancement: 12 blue LEDs
Laser safety: Class I (eye-safe)
Button: Mechanical
IMU: Yes
Output format: OBJ/STL/PLY
Input power: 12V 2A
Data interface: TypeC/USB3.0
Device dimensions: 215mmx50mmx74mm
Weight of the device: 372g
Calibration board: High precision glass calibration board
Wireless scanning: Supported in conjunction with future wireless scanning accessories
System support：Windows/macOS
Operating temperature：-10°C to 40°C
Operating humidity: 0-90%RH
The accuracy was determined under laboratory conditions (measurement object is a 100 mm ball pair). Actual results may be affected by operating conditions such as temperature, vibration and other factors.

Translated with DeepL.com (free version)
