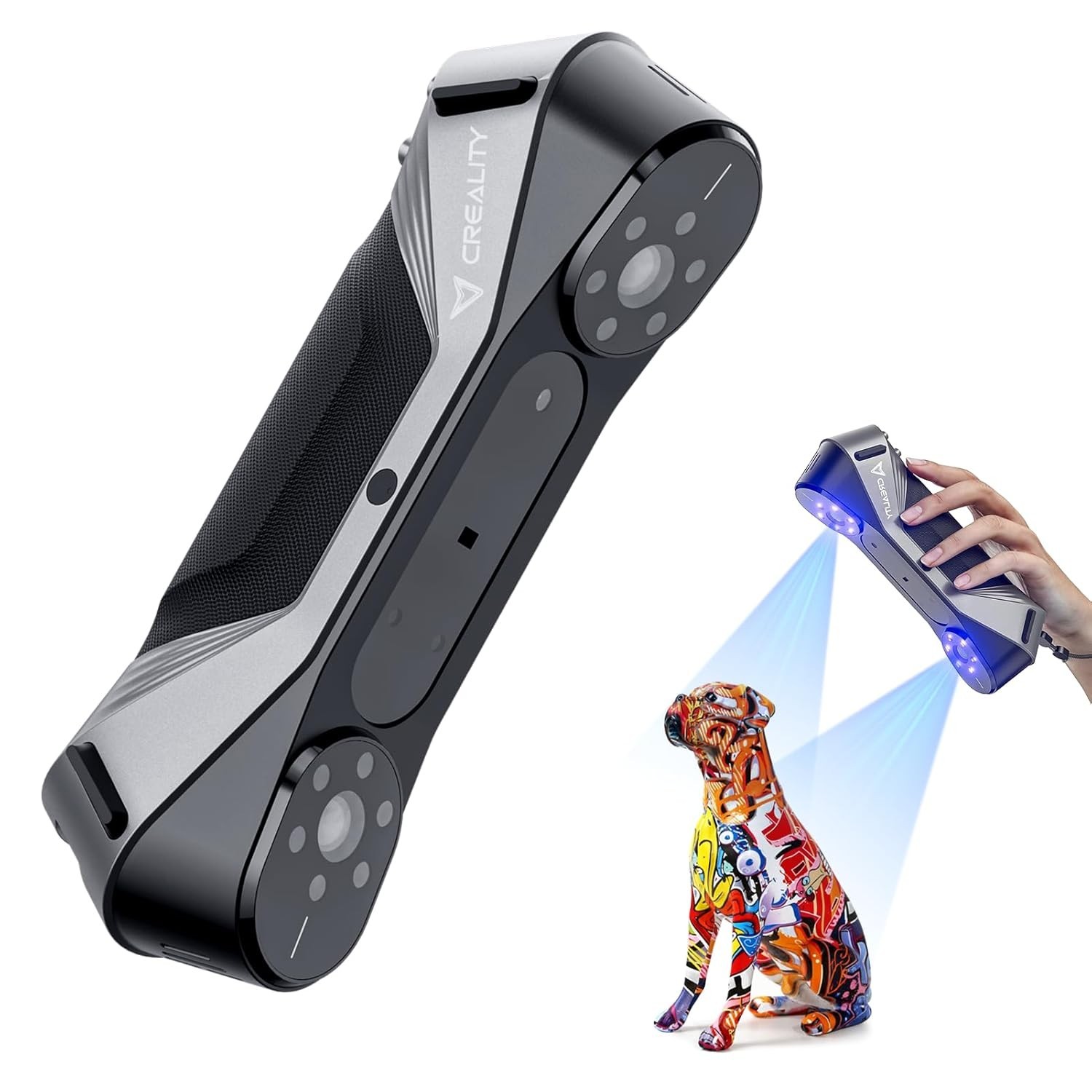

Creality CR-Scan Raptor 3D Scanner for 3D PrintingCreality CR-Scan Raptor 3D Scanner for 3D PrintingHighlights:

• First consumer multi-line blue & NIR 3D scanner, combining 7 blue parallel lines and infrared structured light for small, medium, and large objects.
• Scanning accuracy up to 0.02 mm with very thin 0.1 mm blue lines for sharp, clear edges and fine detail.
• High-speed scanning: up to 60 fps in blue light mode and up to 20 fps in NIR mode.
• Markerless NIR structured-light scanning for feature‑rich workpieces, with dedicated face and body algorithm (full body scan in about 2 minutes).
• Versatile scan volume from 5 × 5 × 5 mm³ up to 2000 × 2000 × 2000 mm³, suitable for figurines, bolts, faces, bodies, and car components.
• Anti‑shaking one‑shot 3D imaging, scans black/metal objects without spray, and supports 24‑bit full‑color capture with 12 LED texture lights.

Product Description:
The Creality CR-Scan Raptor 3D Scanner is a hybrid blue‑laser and near‑infrared structured‑light scanner designed for high‑precision 3D capture from tiny parts to large assemblies. Seven ultra‑thin blue parallel lines deliver metrology‑grade detail with accuracy up to 0.02 mm, while NIR structured light provides fast, markerless scanning of feature‑rich objects and human figures. An advanced temperature compensation algorithm and high‑precision glass calibration board help maintain stable accuracy, and one‑shot 3D imaging with anti‑shake processing reduces tracking loss for smoother handheld use. Capable of scanning dark and metallic surfaces without spray and recording full 24‑bit color via a ring of 12 LED texture lights, the CR-Scan Raptor is ideal for 3D printing workflows, reverse engineering, digital archiving, and character Raptor / CR-Raptor ScannerScanning Technology7-line blue laser + NIR structured lightAccuracy (Blue)Up to 0.02 mmAccuracy (NIR)Up to 0.1 mm3D Resolution0.02–2.0 mm (blue); 0.1–2.0 mm (NIR)Scanning SpeedUp to 60 fps (blue); up to 20 fps (NIR)Minimum Scan Volume5 × 5 × 5 mm³Maximum Object SizeUp to 2000 × 2000 × 2000 mm³Single Capture RangeBlue: 270 × 170 mm @ 300 mm; NIR: 930 × 580 mm @ 1000 mmWorking DistanceBlue: 150–400 mm; NIR: 170–1000 mmLight SourcesBlue laser lines, NIR structured light, 12 white LED texture lightsColor Capture24‑bit full‑color scanningAlignment ModesMarker (blue); marker / geometry / texture (NIR)Face & Body ModeDedicated algorithm; body scan in about 2 minutesCalibrationHigh‑precision glass calibration boardDevice DimensionsApprox. 215 × 50 × 74 mmDevice WeightApprox. 372 gPackage Dimensions13.39 × 11.81 × 6.3 inchesPackage Weight7.04 lbOutput FormatsOBJ, STL, PLY (via software)Power / Interface12 V 2 A; USB‑C / USB 3.0ManufacturerCrealityDate First AvailableMay 24, 2024
