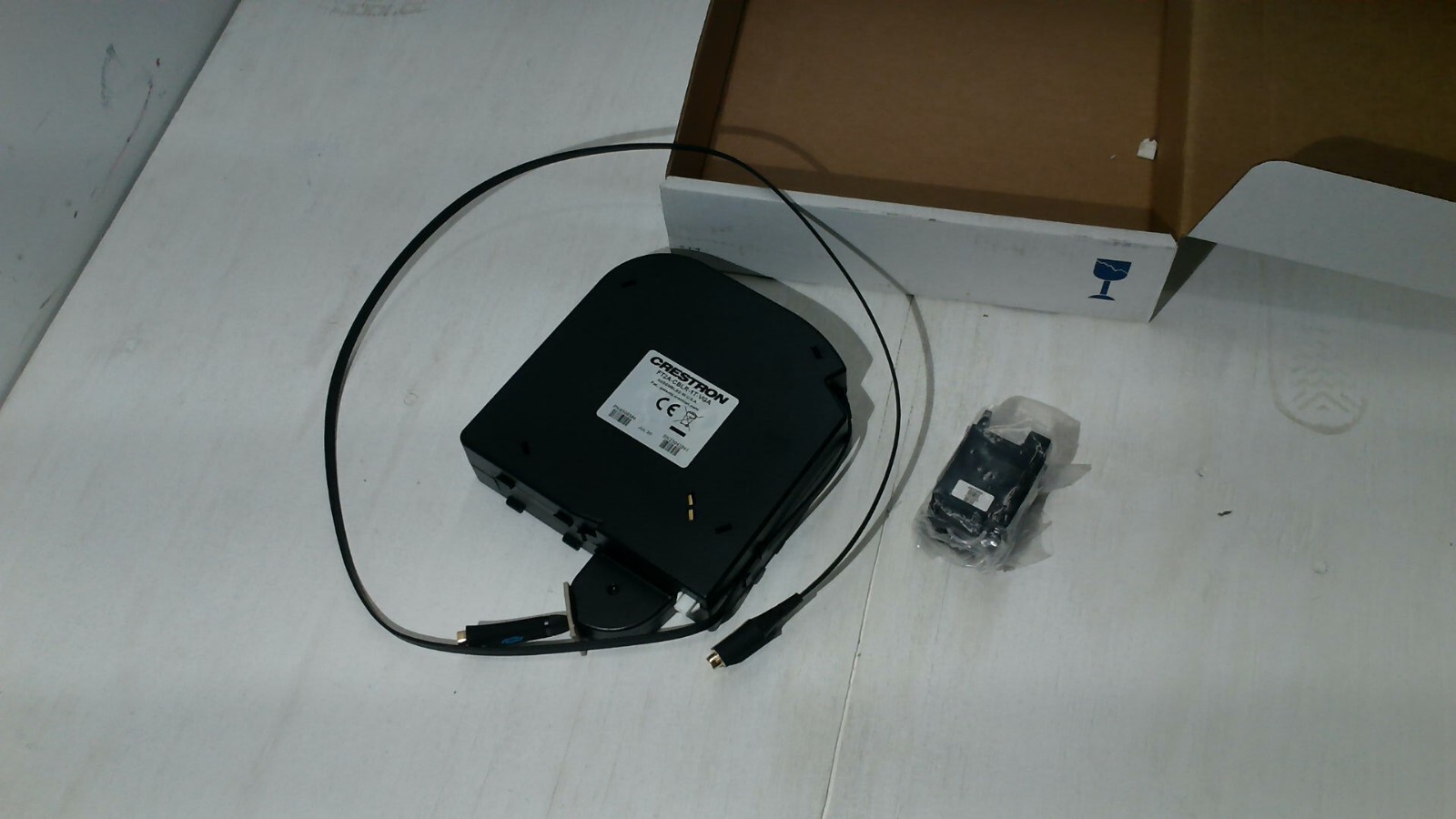

Crestron FT2A-CBLR-1T-VGA One touch Cable Retractor For FT2 ELEC Series HD15 Male to HD15 Male, VGAItem is new but has been unpackaged/unboxed. All of the accessory's are there.
Part# 6508384
CablePull-Out LengthUp to 5 ft (1.5 m) above tableBack End Tail Length4.75 ft (1.4 m) beneath table except for models FT2A‑CBLR‑1T‑4K‑DP‑HD, FT2A‑CBLR‑1T‑4K‑MDP‑HD, FT2A‑CBLR‑1T‑4K‑USBC‑HD, and FT2A‑CBLR‑1T‑USBC‑PWR, which are 2.75 ft (0.8 m)Button & IndicatorRetract(1) Pushbutton with blue LED backlit symbol icon indicating the cable connector type, button actuates retraction, LED illuminates constantly or flashes if cable cannot be retracted due to interfering tension or connection to a control system via the Cresnet port on the FlipTop, supports remote actuation of the retraction functionEnvironmentalTemperature32° to 113° F (0° to 45° C)Humidity10% to 90% RH ModulePrecision fit plastic drop-in module, 2-slot, blackRetractor EnclosurePlastic, blackEnd-Row Mounting• Module requires two consecutive module slots at the left or right end of any module row within the FlipTop chassis;
• Enclosure attaches beneath the table to mounting slots on the left or right side of the FlipTop chassis;
• Requires 11.6 in. (295 mm) minimum vertical clearance beneath the top surface of the table;
• Projects 8.4 in. (213 mm) from the side of the FlipTop chassis beneath the table, and requires an additional 0.2 in. (5 mm) for installationMid-Row Mounting• Requires anFT2A-CBLR-BRKTseries mid-row adapter bracket (one per row, each sold separately);
• Module requires two consecutive module spaces in the middle of any module row within the FlipTop chassis (refer to the relevant FT2A-CBLR-BRKT model spec sheet for additional details);
• Enclosure attaches beneath the table to mounting slots on the front or rear of the FlipTop chassis (via the bracket);
• Requires 11.6 in. (295 mm) minimum vertical clearance beneath the top surface of the table;
• Projects 8.8 in. (223 mm) from the front or rear of the FlipTop chassis beneath the table, and requires an additional 0.2 in. (5 mm) for installationDimensionsHeight8.95 in. (228 mm)Width10.30 in. (262 mm)Depth2.24 in. (57 mm)The dimensions shown are for the retractor enclosure only.
