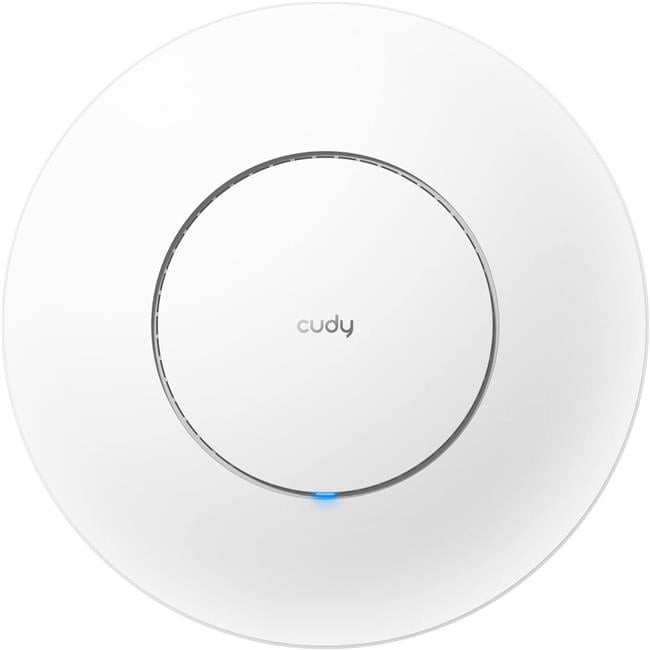

Cudy AP3000_P AX3000 Wi-Fi 6 Ceiling/Wall Access Point with 2.5G Port (PoE Adapter Included) Cudy AP3000_P AX3000 Wi-Fi 6 Ceiling/Wall Access Point with 2.5G Port (PoE Adapter Included)
International Customers: All electronic products are packaged for sale in the US with US voltage.
This item is brand-new, factory sealed.
AX3000 2.5G Wi-Fi 6 Access Point
AP3000 1.0
Adapter In the Box
PoE Adapter (AP3000_P)
A wall/ceiling-mounted WiFi 6 AP, featuring large RAM and shielded 2.5G ports, designed for connecting transportation hubs, hotels, offices, lecture halls, and classrooms.
1.3 GHz Dual-Core CPU
512 MB RAM
4-Stream Dual-Band Wi-Fi 6
2402 Mbps + 574 Mbps Wi-Fi
1x Shielded 2.5GbE PoE IN
802.3at, Passive PoE, DC
Watchdog, Schedule Reboot
150 Connected Devices
Covers 130 m2 (1,400 ft2)
Connects 150 Devices with 512 MB RAM
1.3 GHz dual-core CPU, large RAM, and the upgraded UL/DL MU-MIMO and OFDMA technologies significantly reduce transmission latency to and from the AP when connecting multiple devices.
5 Antennas and 3+2 Strucutre Boost Coverage
Five antennas plus 3+2 structure create more paths to bypass obstacles. Beamforming tracks connected devices directions and boosts signal towards them.Model Version
AP3000 1.0CPU
CPU Details
1.3 GHz Dual-Core CPUMemory/Storage
Flash/ROM
256 MB (2 Gbit) NAND
DDR/RAM
512 MB (4 Gbit) DDR4Wireless
5 GHz Wi-Fi Speed
2402Mbps
2.4 GHz Wi-Fi Speed
574 Mbps
5 GHz Wi-Fi Streams
3T3R (3x3 MIMO)
2.4 GHz Wi-Fi Streams
2T2R (2x2 MIMO)
Wi-Fi Antennas
5x Internal
FEM or PA/LNA
5 GHz: 3x External
2.4 GHz: 2x External
Beamforming
True
Range Performance
Max: 200 m (656 ft)
Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
Wall Performance
Two wooden walls with thickness < 10 cm (4)
One concrete wall with thickness < 20 cm (7) or two concrete walls with thickness < 10 cm (4)Interfaces
2.5G RJ45 Ports
1
Ethernet Notes
Accepts PoE powering
LED
System
Physical Buttons
Reset Button
Power Input
DC Jack
PoE via Ethernet PortPower
Power Methods
DC
802.3at/af PoE
Passive PoE
DC Input
12V 1.5A
Passive PoE Input
48 - 57V
Power Adapter
AP3000_P PoE Adapter in the box:
Input: 100 - 240 V, 50/60 Hz AC
Output: 48V Passive PoE
Max Power Consumption (W)
12 W (48 V PoE) 12 W (DC)
Idle Power Consumption (W)
6.1 W (48 V PoE) 6.1 W (DC)Reliability
Advanced
Hardware Watchdog
EMC
ESD: Contact: 4kV Air: 8kV
Environment
Operating Temperature: -10 oC - 60 oC (14 oF -140 oF)
Storage Temperature: -40 oC - 70 oC (-40 oF - 158 oF)
Operating Humidity: 10% - 90% non-condensing
Storage Humidity: 5% - 90% non-condensingCertifications
FCC, CEMechanical
Installation
Wall-mount
Ceiling-mountPackage Content
AP3000
Power Adapter
Mounting Kit
Ethernet Cable
Installation GuideItem Dimension (L"xW"xH")
12 x 10 x 3
Weight
3 lbs
Warranty Information
2 years Shipping
