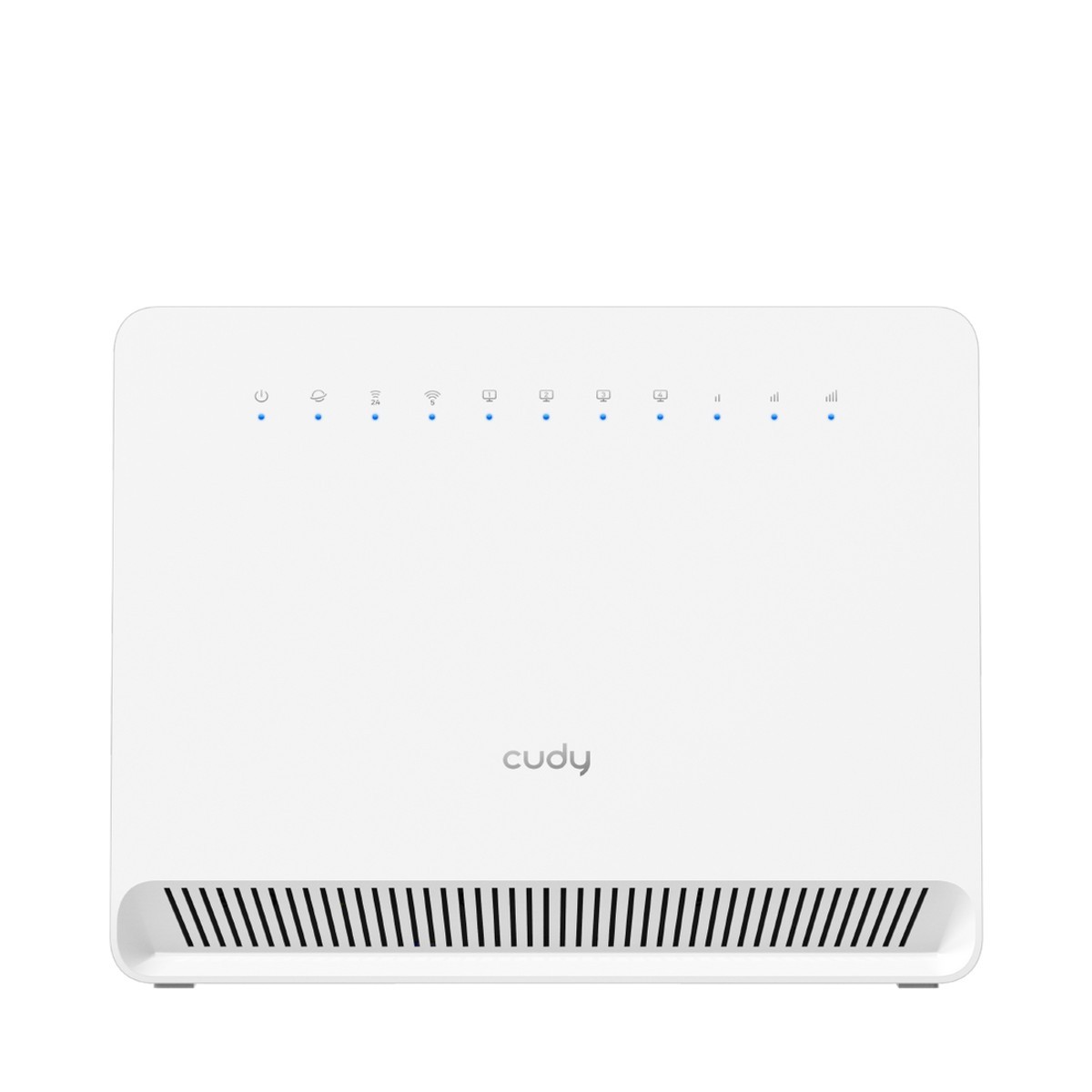

Cudy LT700E 4G LTE Cat6 Gigabit Router AC1200 Dual-Band WiFi SIM Desktop Router
Product description

Main features:

• 4G Cat.6– Maximum download 300 Mbps, DL 2-Carrier Aggregation, MIMO 2

• 4-Stream Dual-Band Wi-Fi 5

• 4 Gigabit Ethernet ports

• 1 Nano SIM slot

• Cudy Mesh,VPN Server & ClientSupport

• Control and management viaCudy AppandCloud Control

Technical detailsgeneral

• FeatureSpecifications
• Model VersionLT700E 1.0
• CPU880 MHz Dual-Core, MIPS1004Kc
• Memory/StorageFlash/ROM: 16 MB (128 Mbit) NOR, DDR/RAM: 128 MB (1 Gbit) DDR3

Cellular

• Cellular Standards4G LTE Cat. 6
• Cellular Antennas2× Internal
• SIM Options1× Nano SIM Slot
• Available VersionsEU, US

EU Version Cellular

• Suitable RegionEurope, Middle East, Africa, Australia, Brazil
• Max DL Speed300 Mbps (LTE-FDD), 220 Mbps (LTE-TDD)
• Max UL Speed50 Mbps (LTE-FDD), 30 Mbps (LTE-TDD)
• AdvancedDL 2CA, DL 2×2 MIMO
• Cellular BandsLTE-FDD: B1/3/5/7/8/20/28/32, LTE-TDD: B38/40/41, WCDMA: B1/5/8

US Version Cellular

• Suitable RegionUnited States, Canada
• Max DL Speed300 Mbps (LTE-FDD), 226 Mbps (LTE-TDD)
• Max UL Speed50 Mbps (LTE-FDD), 28 Mbps (LTE-TDD)
• AdvancedDL 2CA, DL 4×4 MIMO
• Cellular BandsLTE-FDD: B2/4/5/7/12/13/14/25/26/29/30/66/71, LTE-TDD: B41/48

Wireless

• 5 GHz Wi-Fi Speed867Mbps
• 2.4 GHz Wi-Fi Speed300Mbps
• 5 GHz Wi-Fi Streams2T2R (2×2 MIMO)
• 2.4 GHz Wi-Fi Streams2T2R (2×2 MIMO)
• Wi-Fi Antennas2× Internal
• BeamformingTrue
• FEM or PA/LNA5 GHz: 2× Internal, 2.4 GHz: 2× Internal
• Range PerformanceMax: 170 m (558 ft), Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to Wall Performance specifications.
• Wall PerformanceTwo wooden walls < 10 cm (4"), One concrete wall < 20 cm (7")

Interfaces

• Physical ButtonsWPS Button, Reset Button
• Gigabit RJ45 Ports4
• Ethernet Notes1x RJ45 port is WAN/LAN configurable, others are LAN ports
• LEDSystem, Internet, Wi-Fi, LAN, WAN/LAN, Cellular Signal Strength
• Power InputDC Jack

Power

• Power MethodsDC
• DC Input12V 1A
• Power AdapterInput: 100 ~ 240 V, 50/60 Hz AC, Output: 12V 1A DC
• Max Power Consumption11.2W
• Idle Power Consumption3.6W
• ReliabilityEMC: ESD Contact: 4kV; Air: 8kV
• EnvironmentStorage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
• CertificationsFCC, CE
• *MechanicalDimension: 190×50×148.8 mm (7.48×1.97×5.86 inches), Product Weight: 300 g (10.58 oz.)
• InstallationDesktop
• Package ContentsLT700E, Power Adapter, Ethernet Cable, Installation Guide
• Ordering InformationRetail Package Weight: EU / US: 595 g (20.99 oz.), Retail Package Dimension: 270×58×168 mm (10.63×2.28×6.61 inches), Units per Carton: 20, Carton Net Weight: EU / US: 11.9 kg (26.23 lbs), Carton Gross Weight: EU / US: 12.8 kg (28.22 lbs), Carton Dimension
