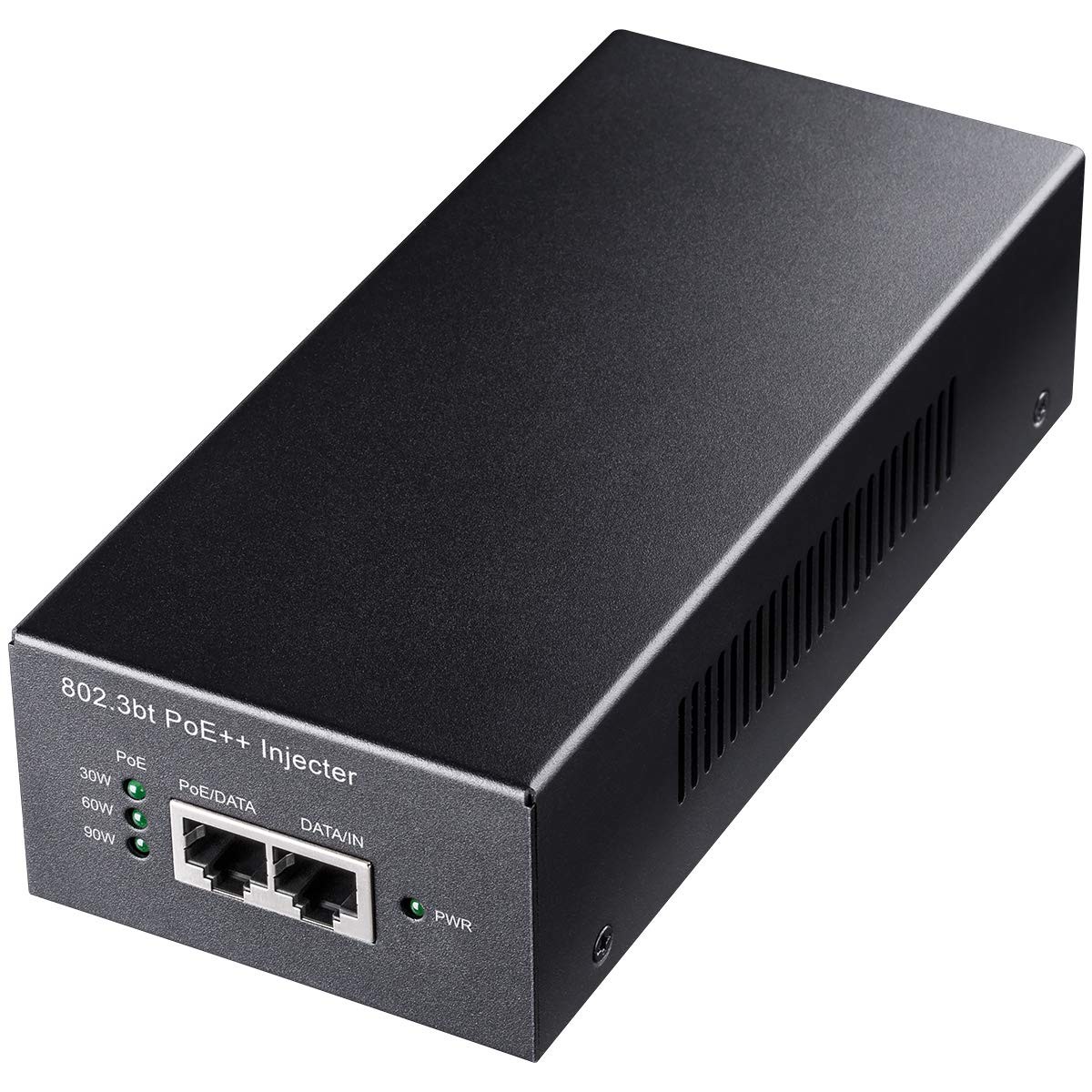

Cudy POE400 90W Gigabit PoE++ Injector Cudy POE400 90W Gigabit PoE++ Injector
International Customers: All electronic products are packaged for sale in the US with US voltage.
This item is brand-new, factory sealed.
IEEE 802.3at/af/bt. Max 90W Output.
The generous 90W power budget easily supports a wide range of devices, including high-power clients like PTZ cameras with heaters, multi-screen kiosks, and advanced access control terminals.
10/100/1000 Mbps Speeds
Stream data at full speed for bandwidth-intensive clients such as access points and AV encorders/decoders with no performance loss.
Protect Clients with Outstanding EMC
Robust EMC design protects itself and clients from power surges and ESD.
ESD: Contact 6kV; Air 8kV
Surge: Power DM 4kV, CM 4kV; RJ45 CM 4kV
Built to Last Longer with High-Quality Capacitors
Equipped with high-quality capacitors rated for 1.6 longer lifespan than the industry average, making the PoE adapter more resistant to aging and wear.
Auto Negotiating the Power Needed
Connect the power, switches/routers, and clientsthe adapter will automatically detect the required power wattage and deliver it accordingly.
Wallmount Ready
Featuring two mounting holes on the back to allow you mount it on the walls. Model Version
POE400 2.0 Protocols
802.3 Protocols
802.3i 10 Mbps over Twisted Pair
802.3u 100 Mbps over Twisted Pair
802.3ab 1 Gbps over Twisted Pair
802.3af PoE
802.3at PoE
802.3bt PoE PoE
Uplink Stream
1x GbE
Downlink Stream
1x GbE, 802.3at/af/bt
Downlink Pin Assignment
Four-Pair
Transimission Distance
Cat. 5e or higher cable: 100 meters at Gigabit
Note: Total cable length from the uplink switch through the PoE adapter to the downlink device is measured as one segment Interfaces
LED
Power
PoE Wattage
Power Interfaces
AC Inlet Power
Power Methods
AC
Power Input
100-240ACV 50/60Hz 2.2A
Max Power Output
90W, 54V Direct Current 1.67A Reliability
Power Protection
Surge Protection
ESD Protection
Overvoltage Protection
Short-Circuit Protection
EMC
IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV, Air: 8kV
IEC/EN 61000-4-5, Above Level 4 Surge: Power: DM 4kV, CM 4kV, RJ45: CM 4kV
Grounding Methods
Grounding Point
Three-Prong Plug
Environment
Ambient Operating Temperature: -10 to 40 oC (14 to 104 oF)
Storage Temperature: -40 to 70 oC (-40 to 158 oF)
Operating Humidity: 10% to 90% non-condensing
Storage Humidity: 10% to 95% non-condensing Certifications
FCC, CE Mechanical
Installation
Desktop
Wall-mount
Casing Material
Metal Package Content
POE400
Power Cord
Mounting Kit
Installation GuideItem Dimension (L inchxW inchxH inch)
8 x 6 x 3
Weight
2.00 lb
Warranty Information
2 years Shipping
