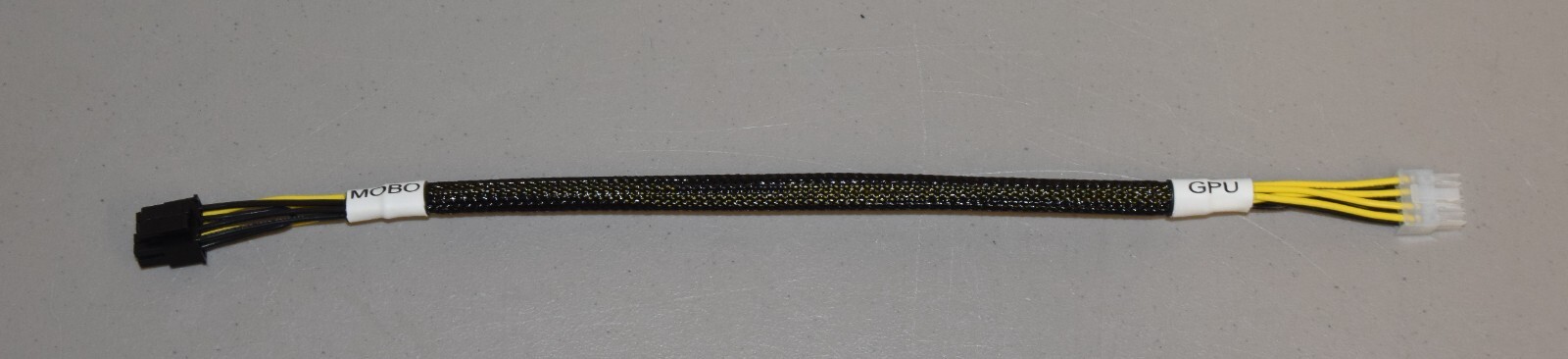

These are custom/professionally built cables I designed to use in Poweredge T420/R520/R720/R720xd/R730/R730xd and Compellant SC8000 servers. Electrically they are wired correctly. They do require some careful routing to fit inside. From connector to connector they measure 16" long give or take .25". They have been verified to be compatible with the
Tesla Referral models in the list below. They should work fine with other cards that use EPS 12V.These are only for cards that require EPS 12V power. They are designed to only be plugged in one way. The connector with the label GPU plugs into the
Tesla Referral. The connector labeled MOBO plugs into the server. The locking tab width will only allow this cable to be plugged in one way. Installing it the wrong way will damage your server and card.
If you are unsure about compatibility there are other cables out there. I do encourage reasonable questions before purchase as I am becoming somewhat of an expert on these cables. This is for the cable only, nothing else.
Current known compatibility list:
Servers:
- Compellant SC8000 verified by me
- R720(xd) verified by me & customers
- R730(xd) verified by me & customers
- Rack 7910 verified by me
- T320 verified by me (Requires redundant power supply configuration)
- T420 verified by me (Requires redundant power supply configuration)
- T430 verified by customer (Requires redundant power supply configuration)
- R520 verified by me (Requires redundant power supply configuration, all 6 fans, and x8 riser 2 model T44HM. Also will require fan shroud modifications.)
- Buyer said they are using these in their Cisco UCS C240 M5 with Tesla Referral P40. I am unsure what is required for that setup though.
GPUs:
NOTE: This IS NOT compatible with the
Tesla Referral M10. The
Tesla Referral M10 requires a PCI express 8-pin power connection. I don't have a compatible cable for sale for those cards.
